Genie Z-45 XC 45' Diesel Articulating Boom Lift Xtra Capacity
The Genie Z-45 XC is a robust and versatile cherry picker, designed for enhanced manoeuvrability and reach on construction sites. With its compact dimensions, it provides excellent stability and performance, making it ideal for a variety of tasks at height.
Item ID: 50000119
Reference: 079054
Basic Dimensions
Length (m)6.66
Width (m)2.29
Height (m)2.25
Weight (kg)7421
Environmental & Sustainability
Sound Power (dB)82-87
Sound Pressure (dB)82-87
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Platform Load Sense SystemYes
Platform WorklightsYes
Power Source
Power Source / Fuel TypeDiesel
Engine
48 hp, 35.8 kW, Deutz D2011, Diesel, T4i/Stage IIIA
49 hp, 36 kW, Deutz TD2.2L, Turbo Diesel, Stage V. Z45XC001CI0034: Z-45 XC, Stage IIIA, 220V, 4WD
Voltage (V)12
Engine MakeDeutz
Engine ModelTD22
Safety Information
Flashing BeaconYes
Harness RingsYes
Head & Tail LightsYes
Vibration Level (m/s2)2.5
Technical Dimensions
Area - Platform (m²)1.39
Ground Clearance (m)0.37
Height - Closed (m)2.25
Height - Drive (m)7.55
Height - Elevated Platform (m)13.86
Height - Lowered Platform (m)2.25
Height - Stowed (m)2.25
Height - Up & Over (m)7.44
Height - Working (m)15.86
Length - Jib (Overall) (m)1.52
Length - Platform (m)1.83
Length - Stowed (m)6.65
Outreach - Horizontal (m)7.55
Outreach (max) (m)7.55
Tail Swing (m)0
Turning Radius - Inside (m)1.68
Turning Radius - Outside (m)4.5
Wheelbase (m)2.03
Width - Platform (m)0.76
Technical Specifications
Capacity - Fuel Tank (L)64
Capacity - Hydraulic Tank (L)83

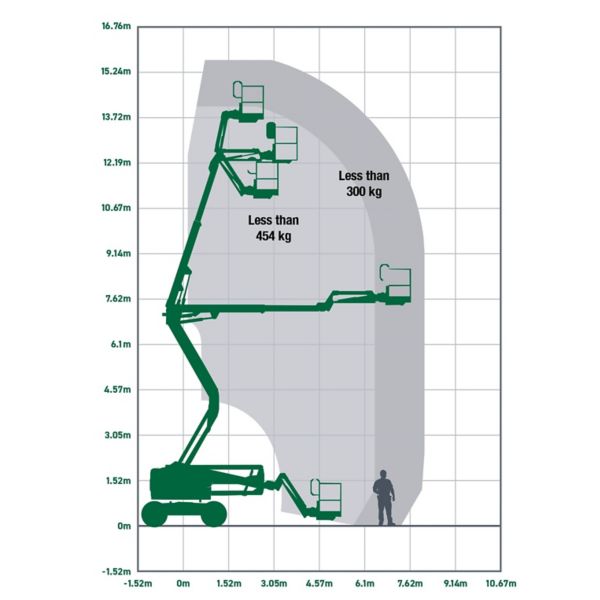

Capacity - Platform (kg)454
Capacity - Platform Unrestricted (kg)300
Gradeability (%)45
Load - Wheel (max) (kg)4226
No. of Persons (Max)3
Pressure - Floor (Occupied) (psf/kPa)231 / 11.08
Pressure - Hydraulic (bar)221
Pressure - Per Tyre Contact (psi/kPa)80 / 552
Range - Articulated Jib (°)135
Rotation - Hydraulic Platform (°)160
Rotation - Turntable (°)355
Rotation - Jib (°)133 - 135
Speed - Drive (Elevated) (mph)0.61
Speed - Drive (Lowered) (mph)4.5
Speed - Wind (max) (mph)28
Tyre Type
Tyres (foam-filled)
315 / 55 D20
