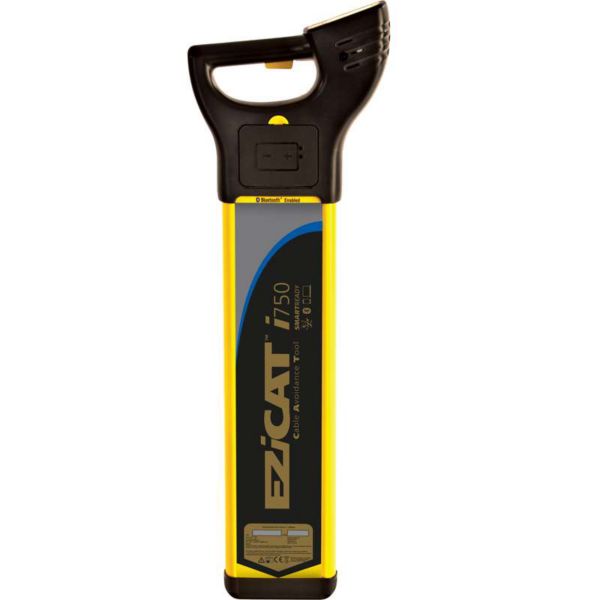

Geomax EziCat i750 Cable Locator

Line: ± 5% tolerance 4" / 0.1m to 10' / 3m

Sonde: ± 5% tolerance 4" / 0.1m to 23' / 7m

RF Markers: ± 15% ± 2" / 5cm up to the maximum depth

Ergonomic, robust, shock and water resistant ABS plastic case

ensures reliable use in hostile environments

Line – 3 m (10 ft) ±5%

Sonde – 8 m (26.2 ft) ±5% dependant on sonde

@ 1m Power: 20 mA

@ 1m Radio: 30 µA

Locate Accuracy: ±5% of depth.

Current Accuracy: ±5% of actual current

• 12 V Input Socket (11)
• Optional input socket for external 12 V supply (e.g.car battery)
• Connect Socket (12)
• Socket which accepts Connection Cable or options such as Signal Clamp, Live Cable Connector or Live Plug Connector, which when connected, disables the Induction mode

• Signal Strength (%)
• Line Depth
• Sonde Depth
• Induced Current Gain Level
• Operating Mode
• Line/Sonde Mode
• Peak/Null Mode
• Left/Right Arrows
• Battery Status
• Speaker Volume
• Backlight On

• Locating the position / path of buried pipes and cables
• Detecting and pinpointing insulation faults on buried pipes and cables
• Creating survey records of buried pipes and cable locations

• Peak
• Peak+™ (choice of combined Peak & Guidance or Peak & Null)
• Guidance
• Broad Peak™
• Null

• Locating the position / path of buried pipes and cables
• Detecting and pinpointing insulation faults on buried pipes and cables
• Creating survey records of buried pipes and cable locations

• Peak
• Peak+™ (choice of combined Peak & Guidance or Peak & Null)
• Guidance
• Broad Peak™
• Null

• 48 segment bar graph
• 5 mode indicators (Standard), 7 mode indicators (xf models)
• Battery status indicator
• Line depth indicator
• Sonde depth indicator
• Bluetooth indicator (where fitted)
• Integrated backlight
• Annual service indicator
• 3 alpha numeric dot matrix displays 5x7
• Signal Strength Indicator
• mA (milliamperes)
• Memory & GPS

10% of depth in line or Sonde (0.3 to 3.0 m (1 to 10 ft) Line Mode

0.3 to 3.0 m (1 to 10 ft) Sonde Mode)

Power, Radio and Auto mode:

Continuous tone (different pitch for each mode).

8 kHz and 33 kHz mode:

Pulsed tone (different pitch for each mode).

512 Hz and 640 Hz mode:

Pulsed tone (different pitch for each mode).

All tones are different.
