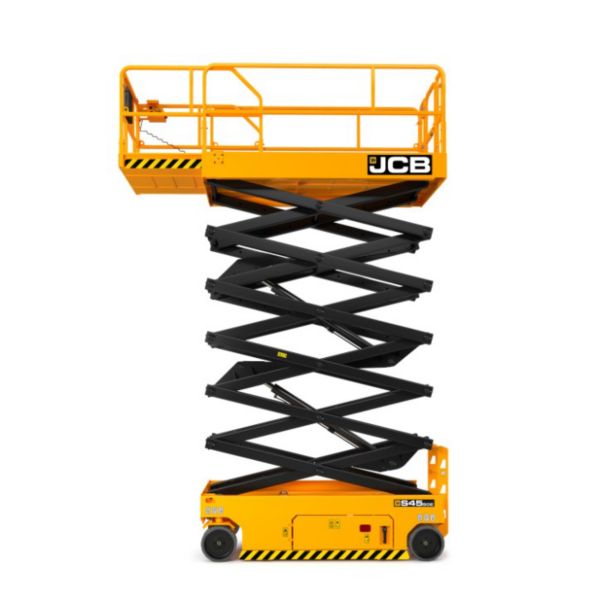

JCB S4550E 45' Electric Scissor Lift
The JCB S4550E is a robust and versatile machine designed for various construction tasks. With impressive overall dimensions, it ensures excellent manoeuvrability and efficiency on-site. Ideal for both professionals and DIY enthusiasts, this reliable equipment meets all your project needs with ease.
Item ID: 50000047
Reference: 075345
Basic Dimensions
Length (m)2.76
Width (m)2.2
Height (m)2.6
Weight (kg)3593
Environmental & Sustainability
Sound Power (dB)66.7
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)4x 12V / 150Ah
Voltage (V)24
Safety Information
Harness RingsYes
HornYes
Emergency Stop ButtonYes
Technical Dimensions
Area - Platform (m²)3.0888
Ground Clearance (m)0.001
Ground Clearance - Stowed (mm)1
Height - Drive (m)13.72
Height - Guardrail (m)1.10
Height - Stowed (m)2.6

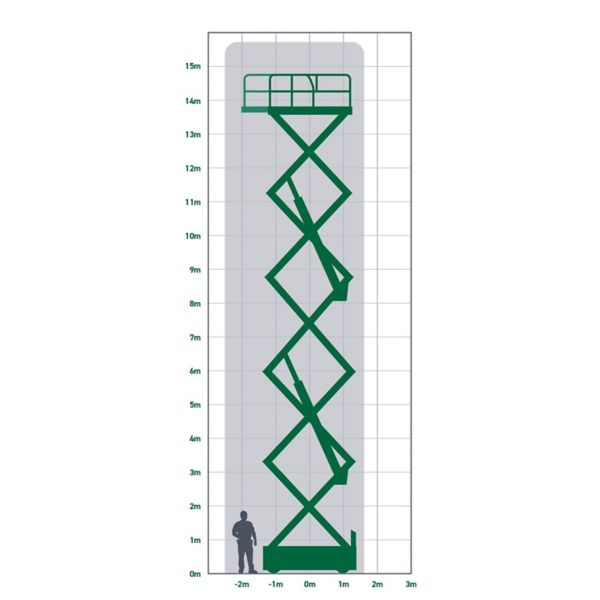

Height - Working (m)15.8
Length - Platform (m)2.64
Size - Tyre380 × 133
Turning Radius - Inside (m)0
Turning Radius - Outside (m)2.56
Wheelbase (m)2.22
Width - Platform (m)1.17
Height - Hand Rails Down (m)2.2
Height - Platform (m)13.72
Height - Working (max) (m)15.8
Deck Extension (m)0.9
Technical Specifications
Capacity - Hydraulic Tank (L)18
Gradeability (%)25
Load - Safe Working (kg)230
Load - Wheel (max) (kg)1140
No. of Lifting Eyes2.6
No. of Persons (Max)2
Slope (Max) (%)25
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2.1
Speed - Falling (Loaded) (s)61-71
Speed - Rising (Loaded) (s)73-83
Speed - Wind (max) (mph)0
Tyre TypeSolid Non Marking
Capacity - Total (kg)227
Weight - Total Aerial Platform (max) (kg)3.366
