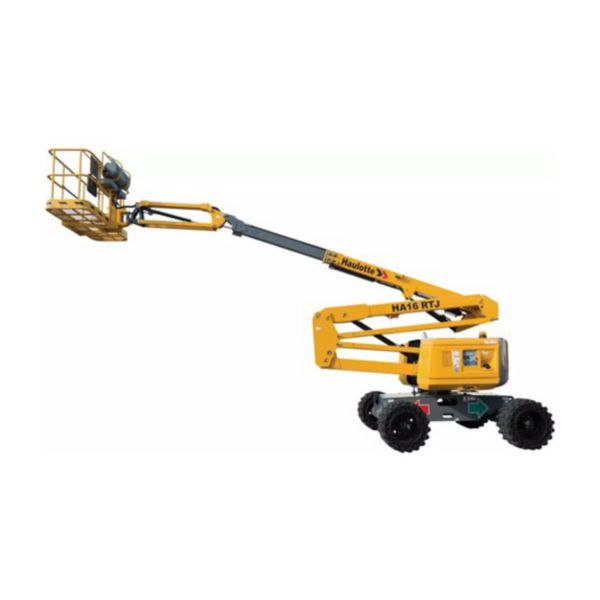

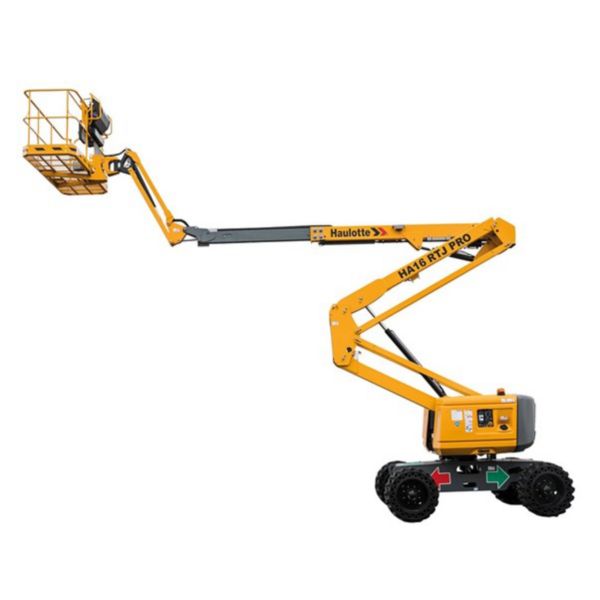

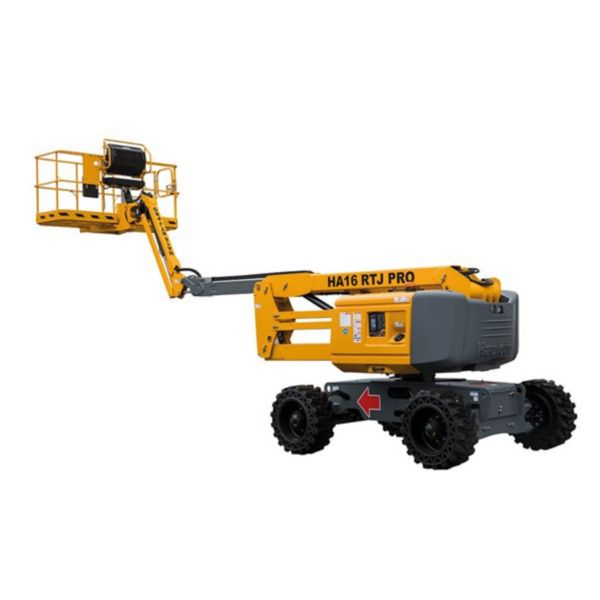

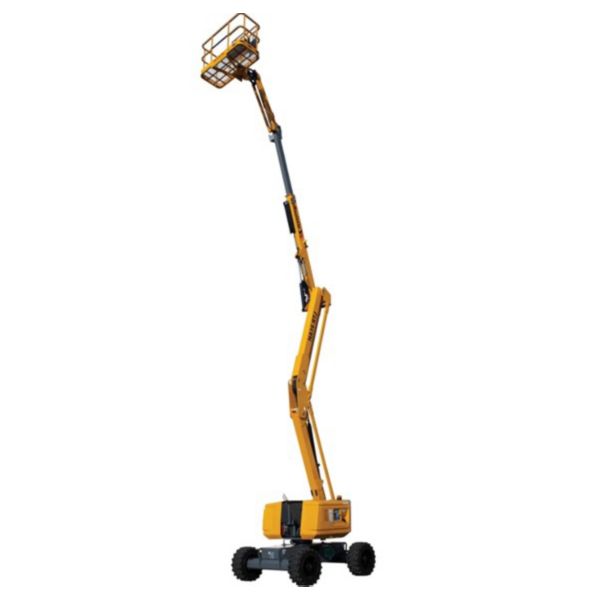

Haulotte HA16 RTJ PRO 45' Diesel Articulating Boom Lift
The Haulotte HA16 RTJ PRO is a robust articulating boom lift designed for versatility in construction sites. With impressive reach and advanced safety features, it ensures efficient operation even in challenging environments. Enhance your project capabilities with this reliable piece of equipment.
Item ID: 50000126
Reference: 079054
Basic Dimensions
Length (m)5.05
Width (m)2.3
Height (m)2.4
Weight (kg)6650
Environmental & Sustainability
CO2 per Litre of Fuel Consumed1.04
Consumption - Fuel (l/hr)3
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Engine Stage/TierStageV
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Platform Load Sense SystemYes
Power Source
Power Source / Fuel TypeDiesel
Engine
Kubota, 18.5 kW (Stage 5 in EU)
Kubota, 26.5 kW, (Stage 3A in NRC)
Engine - Stage 3ANo
Engine - Stage 3B Tier 4No
Engine - Stage 5Yes
Voltage (V)12
Engine MakeKubota
Engine ModelD1105
Safety Information
Harness RingsYes
Technical Dimensions
Area - Platform (m²)1.46
Ground Clearance (m)0.38
Height - Elevated Platform (m)14
Height - Guardrail (m)1.4
Height - Lowered Platform (m)1.3
Height - Stowed (m)2.3
Height - Up & Over (m)7.65
Height - Vertical Platform (max) (m)14
Height - Working (m)16
Length - Jib (Overall) (m)1.57
Length - Platform (m)1.83
Length - Stowed (m)6.75
Outreach - Horizontal (m)8.3
Outreach (max) (m)16
Outreach - Working (m)8.3
Size - Tyre85 x 34
Tail Swing (m)0.1
Turning Radius - Outside (m)3.75
Wheelbase (m)2.1
Width - Platform (m)0.8
Technical Specifications
Capacity - Fuel Tank (L)62
Capacity - Hydraulic Tank (L)76
Capacity - Platform (kg)230
Capacity - Platform Unrestricted (kg)230
Gradeability (%)40
Load - Safe Working (kg)230
Load - Wheel (max) (kg)3330
No. of Lifting Eyes4
No. of Persons (Max)2
Pressure - Ground Bearing (max) (kg/cm2)13.7
Pressure - Hydraulic (bar)240
Range - Articulated Jib (°)140
Rotation - Horizontal Jib (°)165
Rotation - Hydraulic Platform (°)165
Rotation - Turntable (°)360
Rotation - Jib (°)140 - 165
Speed - Drive (Elevated) (mph)0.8
Speed - Drive (Lowered) (mph)3.23
Speed - Wind (max) (mph)28
Tyre TypeSolid Rough Terrain
