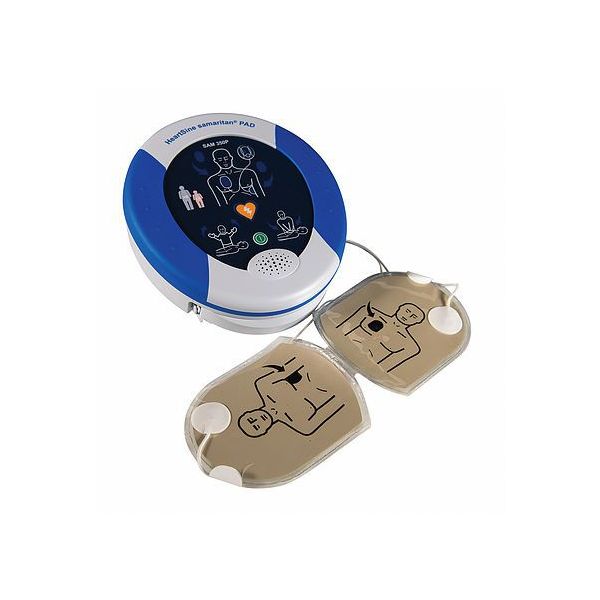

HeartSine SAM 350P Emergency Defibrillator
The Heartsine Samaritan 350P is a compact, easy-to-use defibrillator designed for rapid response in emergencies. Its lightweight design and clear voice prompts ensure effective lifesaving support. Ideal for public spaces and workplaces, this defibrillator is a reliable choice for enhancing safety.
Item ID: 50000342
Reference: 004001
Basic Dimensions
Length (mm)18.4
Weight (kg)1.1
Width (mm)20
Power Source
Power Source / Fuel TypeBattery
Safety Information
Temperature - Ambient (°C)0 to +50
Technical Dimensions
AircraftRTCA/DO-160G, Section 21 (Category M)
Height - Falling (m)1
Technical Specifications
Drop Shock & VibrationShock: MIL STPAD 810F Method 516.5, Procedure 1 (40 G’s) / Vibration: MIL STPAD 810F Method 514.5, Procedure 1
MaterialsDefibrillator housing (ABS, Santoprene), Electrodes (Hydrogel, Silver, Aluminium and Polyester)
Protection Class (IP)56
Relative Humidity5% to 95% non-condensing
Electrostatic DischargeIEC/EN 61000-4-2 (8 kV)
EMCIEC/EN 60601-1-2
Emissions - RadiatedIEC/EN 55011
Magnetic Field ImmunityIEC/EN 61000-4-8 (3 A/m)
MemoryInternal Memory. 90 minutes of ECG (full disclosure) and event/incident recording
Pad-PakShock 1: 150 J, Shock 2: 150 J, Shock 3: 200 J
Pediatric-PakShock 1: 50 J, Shock 2: 50 J, Shock 3: 50 J
Pressure - Atmospheric (hPa)572-1060
Range - Impedance (Ω)20-230
Review
Custom USB data cable (optional) directly connected to PC with Saver EVO
Windows-based data review software
RF ImmunityIEC/EN 61000-4-3 80MHz-2.5 GHz, (10 V/m)
Time - Typical Charge (s)150J in < 8 seconds, 200J in < 12 seconds
Waveform
Self-Compensating Output
Pulse Envelope (SCOPE)
