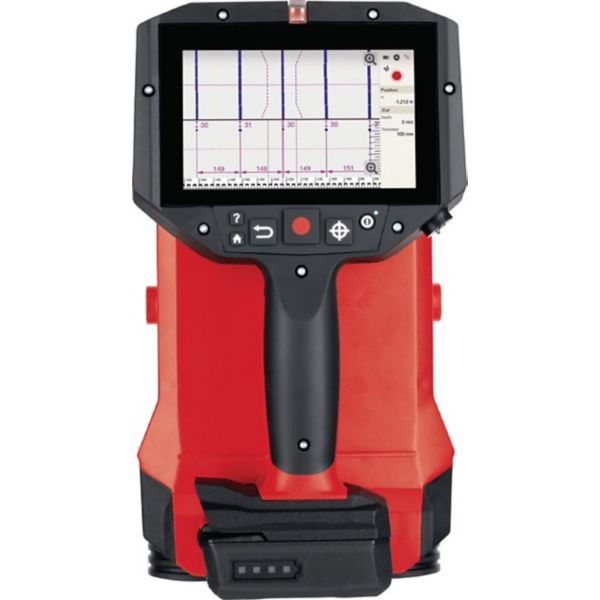

Hilti PS300 Ferroscan System

• Quickscan detection
• Quickscan detection with accurate depth measurement
• Quickscan recording
• Imagescan
• Blockscan

• Bar Diameter: depth of cover ≥ 2 : 1. Bar diameter measurement is possible only at depths of up to 60 mm.
• Bar Location: Typically ± 3 mm relative to the measured position, when the ratio of bar spacing : depth of cover is ≥ 1.5:1.

The tool is intended to be used for locating reinforcing bars in concrete, measuring depth of concrete cover and estimating the diameter of the bars in the uppermost layer in accordance with the specifications detailed in the

technical data provided in these operating instructions.

• Locates objects of various kinds in concrete structures, even beneath reinforcing mesh
• Displays a clear, real-time 2D image directly on the Hilti PS 1000 display
• Processed 2D and 3D plan view or cross-sectional images are displayed

• Depth Indication: <100mm: ±10%, >100 mm: ±15 %
• Localisation: ±10mm

• Non-destructive inspection and detection of concealed objects in steel-reinforced and prestressed concrete structures
• Detecting metal or plastic pipes and electric cables to avoid damage when
• Locating rebars for post-installed rebar connections

• Quickscan detection
• Quickscan detection with accurate depth measurement
• Quickscan recording
• Imagescan
• Blockscan

• Bar Diameter: depth of cover ≥ 2 : 1. Bar diameter measurement is possible only at depths of up to 60 mm.
• Bar Location: Typically ± 3 mm relative to the measured position, when the ratio of bar spacing : depth of cover is ≥ 1.5:1.

High-impact ABS plastic

Rubberized grips and seals

Internal components

The tool is intended to be used for locating reinforcing bars in concrete, measuring depth of concrete cover and estimating the diameter of the bars in the uppermost layer in accordance with the specifications detailed in the

technical data provided in these operating instructions.

• Localization: 1 % +⁄­ 3 mm (0.12 in)
• Cover measurement to a depth ≤ 50 mm (1.97 in).: +⁄­ 1 mm (0.04 in)
