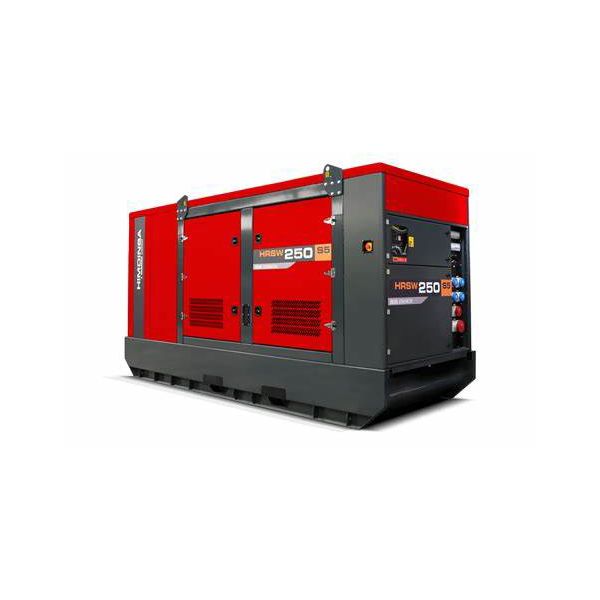

Himoinsa HRSW-250-T5 250kVA Diesel Generator Stage V Sync
Introducing the Himoinsa HRSW-250-T5, a robust and reliable generator designed to meet the demands of various construction projects. With its compact dimensions, this generator offers efficient power output while ensuring portability and ease of use on-site. Ideal for both temporary and emergency power solutions, the HRSW-250-T5 is engineered for durability and performance, making it a preferred choice for construction professionals. Enhance your project's productivity with this dependable generator.
Item ID: 50001313
Reference: 029141
Basic Dimensions
Length (cm)443
Width (cm)170
Height (cm)240
Weight (kg)4800
Environmental & Sustainability
Sound Pressure (dB)68-70.4
Average Usage Emissions Per Operating Hour (ERA)101.1
Average Consumption Per Operating Hour (ERA)32
Average Engine Operating Hours Over A Rental Day (ERA)5.5
Engine Stage/TierStageV
Power Source
Power Source / Fuel TypeDiesel
Voltage - Options (V)230 / 400
Phase3
Power - Prime (kVA/kW)250kVA / 200kW
Power - Standby (kVA/kW)275kVA / 220kW
Power - Factor (cos)0.8
Capacity - Fuel Tank (L)1000
EngineSCANIA DC09.320A(02.61)
Battery (V/Ah)24V
Voltage (V)24
Engine MakeScania
Engine ModelDC09320A0261
Safety Information
Insulation ClassH
Protection Class (IP)23
Temperature - Standby (max) (°C)456
Technical Dimensions
Bore & Stroke (mm)130 x 140
Size - Exhaust Flange (mm)140
Technical Specifications
Controller OptionsM5 control panel
Frequency50Hz
Alternator TypeSTAMFORD UCDI274K
Autonomy
27.5hrs @ 50% load
18.6hrs @ 75% load
14hrs @ 100% load
Starting SystemElectric (battery powered)
No. of Cylinders5
Speed - Engine (rpm)1,500
AspirationTurbocharged
Displacement (L)9.3
Displacement (cm³)9300
Capacity - Engine Oil (L)36
Ratio - Compression0.792361111111111
Injection TypeDirect
No. of Poles4
Exciter SystemBrushless via AVR
Coupling TypeFlexible disc
Bearing TypeSingle bearing
No. of Wires4
Coolant TypeCoolant
Capacity - Coolant (L)37
Current (A)361 (PRP)
ConnectionStar-series
Air Flow - Standby Intake (kg/hr)958
Air Flow - Alternator Fan (m3/s)0.58
GovernorElectrical
FilterDry Type, Paper Element
Back Pressure - Allowed (max) (mbar)230
Voltage - Alternator RegulatorA.V.R.(Electronic)
No. of Batteries2
Volume - Shipping (Sea Ready) (m3)18.07
Recommended OilACEA E6 / ACEA E9 / API CJ-4
FinishStandard (Vacuum impregnation)
Power - Starter Motor (kW)6
Capacity - AdBlue Tank (L)60
Consumption - AdBlue (l/hr)4.33(100%)/3.33(80%)
Regulator TypeAVR
Heat - Dissipated by Exhaust Pipe (kW)150
Air Flow
958kg/h (Standby intake)
0.58m3/s (Alternator fan)
