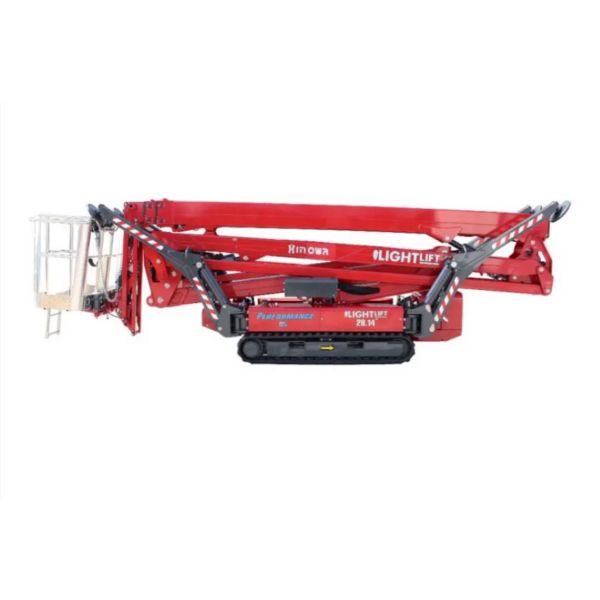

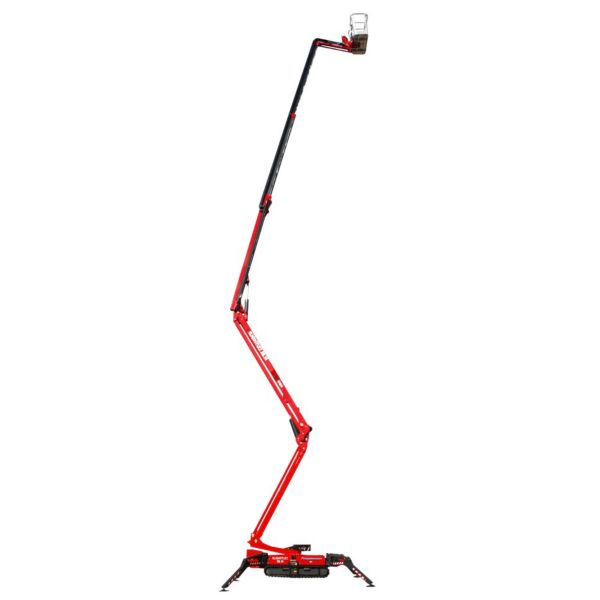

Hinowa Lightlift 26.14 86' Hybrid Tracked Boom Earth Bonded
The Hinowa Lightlift 26.14 EBOND is a robust and versatile tracked aerial platform, ideal for construction projects requiring height access. With impressive reach and stability, it ensures safety and efficiency on site. Perfect for both indoor and outdoor use.
Item ID: 50000156
Reference: 080003
Basic Dimensions
Length (m)6.34
Weight (kg)4365
Convenience Features
4WDNo
Continuous TracksYes
Driven When StowedYes
Hydraulic Check ValvesYes
Hydraulic OutriggersYes
Indoor & Outdoor Use (Tracks Dependent)Yes
Manual Hand Pump At BaseYes
Manual Hydraulic OperationYes
Telescopic Upper BoomYes
Variable Width TracksYes
Power Source
Power Source / Fuel TypeHybrid
Battery TypeLithium
EngineDiesel: Kubota D902 Autorev / Petrol: Honda iGX390
Voltage (V)12
Engine MakeKubota
Engine ModelD902
Safety Information
Harness RingsYes
Tilt AlarmYes
Emergency Stop ButtonYes
Can Be Lowered Without Main PowerYes
Technical Dimensions
Area - Platform (m²)1.33 x 1.1
Height - Closed (m)1.981
Height - Elevated Platform (m)25.7
Height - Lowered Platform (m)1.981
Height - Working (m)25.7
Length - Platform (m)1.33
Outreach - Horizontal (m)13.75
Tail Swing (m)2.8
Width - Cage (m)0.69
Width - Platform (m)1.1
Reach (max) (m)13.75
Depth - Cage (m)1.335
Jack Spread (m)3.978
Width - Working (m)0.99
Technical Specifications
Capacity - Fuel Tank (L)40
Capacity - Hydraulic Tank (L)60
Capacity - Lift (kg)230
Capacity - Platform (kg)230
ControlsElectric over Hydraulic
Gradeability (%)29
Load - Safe Working (kg)230
No. of Lifting Eyes4
No. of Persons (Max)2
Pressure - Hydraulic (bar)200
Speed - Wind (max) (mph)28
Drive TypeHydraulic Drive
Output - Power16.1kw
Base ControlsYes
Cage ControlYes
Capacity - Battery Storage (hrs)4
Duration - Discharge4365 / 4384 / 4560
Load - Point (kN)16.1
Pressure - Ground Bearing Outriggers (kg/cm2)4.52
Terrain0.287
Tracks TypeRubber Black Standard. Non Marking optional
Speed - Drive (max) (mph)1.24
