Hybrid Tower Lights

Name: Hybrid Tower Lights Hire | Sunbelt Rentals
SKU: 10000375

Product Code: 10000375

The hybrid tower lights provide efficient illumination for construction sites and events, utilising hybrid power for reduced emissions. These versatile light towers ensure optimal visibility while being environmentally friendly. Ideal for both temporary and long-term applications, they are a reliable choice for your lighting needs. Product ID: 10000375

Choose a product


Please select an option from the above dropdown

Product Description

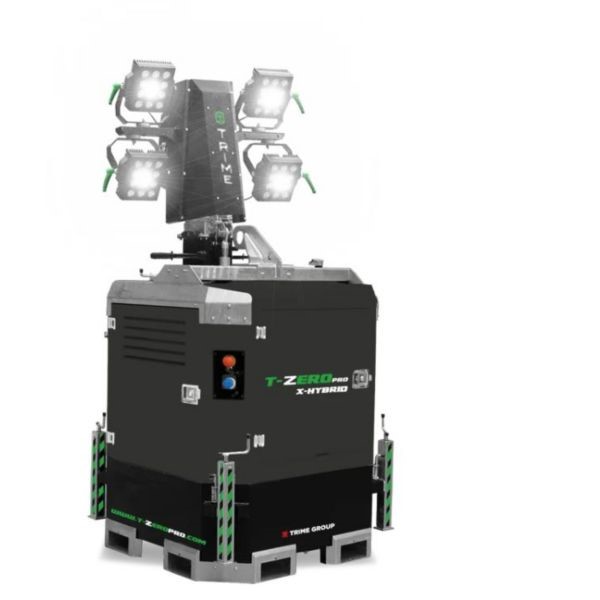

The Trime X-Hybrid is a cutting-edge lighting tower designed for efficiency and performance. Featuring advanced hybrid technology, it provides powerful illumination while minimising fuel consumption. Ideal for construction sites, its compact design ensures easy transport and setup.

Item ID: 50010267

Reference: 023007

Length (cm)

252

Width (cm)

252

Height (cm)

850

Weight (kg)

1150

Power Source / Fuel Type

DieselHybrid

Engine

KUBOTA Z482

Speed - Engine (rpm)

1500

Capacity - Fuel Tank (L)

150

No. of Cylinders

Bore & Stroke (mm)

67 x 68

Displacement (cm³)

479

Power - Engine

479cc

Cooling System

Liquid

Battery (V/Ah)

24V / 400Ah

Battery Type

AGM

Capacity - Battery (kWh)

9.6

Engine Type

Indirect Injection Diesel, Naturally Aspirated

Voltage (V)

Starting System

Electric Starter Motor Powered by the onboard battery pack (24V DC), engages the engine flywheel for ignition

Light Type

LED

Power - Per Floodlight (W)

150

No. of Floodlights

Lifting Method - Mast

Hydraulic

Rotation (°)

340

Lifting Method - Tower

Hydraulic

Speed - Wind (max) (mph)

Standard Load Delivery

20 Units per Truck

Output - Light (Mean) (lm)

78000-90000

Optional Extras

Telematics

Programmable Timer

Solar Assist

Safety Enhancements

Site Setup Service

Power - Alternator (Kva/V/Hz)

3.5kVA / 230V

Engine Stop System

Emergency Stop Button

Automatic Engine Stop (AMOSS)

Low Fuel / Fault Shutdown

Manual Stop via Control Panel

Fuel Pump

Mechanical fuel feed pump

Alternator Type

Linz Alumen SB

Frequency

50Hz

Time - Operating (hrs)

826

Battery Storage

AGM Battery Pack

Degradation - Annual (%)

1-2

No. of Batteries

Cycle - Battery (hrs)

No. of Solar Panels

Battery Life

13,000 hours (overall lifespan)

Time - Charging (hrs)

With LEDs ON: 9 hours

With LEDs OFF: 8 hours

Controls

Digital Control Panel: Displays operational status, battery level, fuel level, and run hours.

Start/Stop Controls: Key ignition switch for engine start/stop. Manual stop button for normal shutdown.

Emergency Stop: Large red emergency stop button for immediate engine shutdown.

Lighting Controls: Individual switches for each LED floodlight (4 × 150W). Auto mode via dusk-to-dawn light sensor.

Programmable timer for scheduled operation (time or lux-based).

Hybrid System Controls: Automatic engine start when battery charge is low. Silent mode selection for battery-only operation.

Safety Interlocks: Integrated with AMOSS (Automatic Mast Operating Safety System) to prevent mast movement unless handbrake is engaged.

Time - Operating (Battery Alone) (hrs)

Time - Operating (Before Refill) (hrs)

608

Materials

Chassis & Mast: Galvanised steel for structural strength and corrosion protection. Finished with 80 μm powder coating for enhanced durability in harsh environments.

Floodlight Heads: Industrial-grade aluminium housings for the 4 × 150W LED lamps, ensuring heat dissipation and weather resistance. Tempered glass lenses for impact resistance and optical clarity.

Tank & Base: Steel bunded fuel tank (110% containment) to prevent spillage and comply with environmental safety standards.

Control Panel & Electrical Components: Weatherproof ABS/polycarbonate enclosures for switches and electronics.

Colour-coded cables with protective sheathing for durability.

Stabilizers: Heavy-duty galvanised steel stabilizer legs, height-adjustable for uneven terrain

Power - Alternator (kVA/V)

3.5-4.2kVA

Frequency - Alternator

50Hz

Lubrication System

Forced lubrication system using a gear-driven oil pump. Ensures continuous oil circulation to all moving parts for durability and reduced wear.

Time - Operating (Engine) (hrs)

608

No. of Lamp Heads

No. of LED's

Light Mode

Auto Light Sensor Mode (dusk-to-dawn)

Timer Mode (time-based or lux-based switching)

Manual Mode (individual lamp control)

Silent Hybrid Mode (battery-only operation for noise-sensitive environments)

Range - Beam Spread (°)

120

Capacity - Water Tank (Cold) (L)

220

Consumption - Fuel (Hybrid Mode) (l/hr)

0.55
