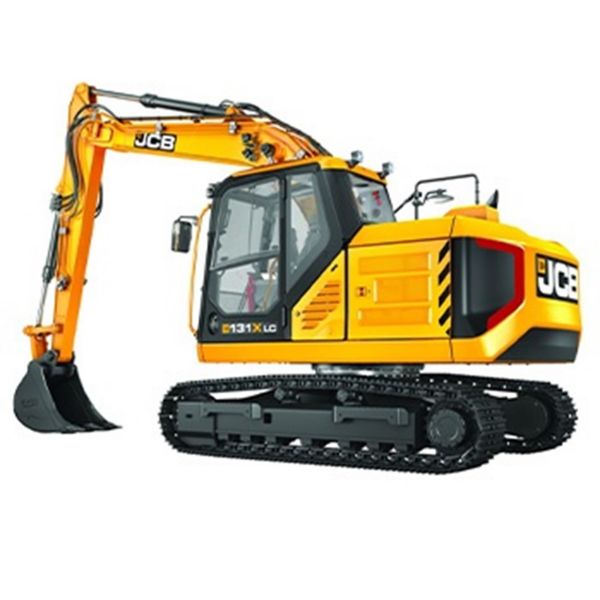

JCB 131X 13t Diesel Tracked Excavator Stage V
The JCB 131X Stage V is a robust and efficient compact excavator, designed for optimal performance in tight spaces. With its advanced engine technology and superior manoeuvrability, it’s ideal for construction projects requiring power and precision.
Item ID: 50002911
Reference: 021118
Basic Dimensions
Length (mm)7660
Height (mm)3000
Width (mm)2490
Weight (kg)14819
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)36.8
Average Consumption Per Operating Hour (ERA)11.6
Average Engine Operating Hours Over A Rental Day (ERA)4.3
Convenience Features
Rotating BeaconYes
TelematicsYes
Worklights GuardsYes
ImmobiliserYes
Auto Engine ShutdownYes
Dozer BladeYes
Vinyl Static SeatNo
ISO Pattern ControlsYes
Extending UndercarriageNo
Rubber TracksYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)2x 12V
Voltage - System (V)24
Output - Alternator (Ah)100
Engine MakeJCB
Engine ModelDieselMAX430StageV55kW
Engine Stage/TierStageV
Power - Engine (max) (kW)55
Power - I.C. Engine Rating (hp)74
Safety Information
Vibration - Whole Body (m/s2)0.27
Vibration - Hand-Arm (m/s2)2.5
Noise Level (dB)99
Sound Pressure (dB)67
White Noise Reverse AlarmYes
Green Beacon Linked to SeatbeltYes
Travel AlarmYes
Surrounding HandrailYes
Sound-Insulated & 4 Dual Shock Mounted CabYes
ROPS/FOPS Certified CanopyYes
External Lockable Fuel TankYes
Boom WorklightYes
Slew Travel LockNo
Full Audible SystemsYes
Front HandrailYes
Technical Dimensions
Ground Clearance (mm)430
Bore & Stroke (mm)92 and 112
Length - Track (mm)2870
Length - Undercarriage (mm)3590
Height - Cab/Canopy (mm)2870
Height - Dump (Range) (m)2.39 - 6.68
Radius - Tailswing (m)2.15
Width - Substructure (mm)2490
Width - Over Tracks (mm)2490 - 2840
Height - Track (mm)810
Gauge - Track (m)1.99
Height - Dig (max) (m)9.16
Reach - Digging (max) (m)8.39
Reach - Digging on Ground (max) (m)8.24
Depth - Dig Below Ground (m)5.56 - 6.16
Counterweight Clearance (mm)910
Depth - Vertical Wallcut (m)5.1
Length - Tail (mm)2100
Height - Swing (m)3.11 - 6.71
Radius - Bucket Struck (m)1.25
Width - Bucket (mm)1350
Height - Over Grab Rail (mm)3000
Height - Over Cab (Vandal Guard - Optional) (mm)3170
Height - Over Cab (FOPS Guard) (mm)2970
Diameter - Bore & Rod (mm)100 x 75 (Boom), 115 x 80 (Arm), 95 x 70 (Bucket)
Technical Specifications
Capacity - Hydraulic System (L)126
Capacity - Fuel Tank (L)260
Capacity - Hydraulic Tank (L)133
Torque (Nm @ rpm)400 @
No. of Cylinders4
Displacement (L)3
Gradeability (%)35
Cooling SystemWater Cooled
Speed - Travel (Range) (mph)2.4 – 4.1
Pressure - Working (bar)314
Power - Tractive (kN)116
Service Brake TypeHydraulic counter balance valve
Payload (t)13
AspirationTurbocharged and intercooled
Capacity - Cooling Tank (L)19.7
Pump TypeGrease Pump
Capacity - Engine Oil (L)14
Air FiltrationDry element with secondary safety element and in cab warning indicator
Capacity - Swing Reduction Gear (L)2.2
Capacity - Track Reduction Gear (Each Side) (L)3.5
Tearout - Bucket (max) (kN)0.09
Tearout - Dipper (max) (kN)0.06
No. of Bottom Rollers7
Pressure - Ground Bearing (kg/cm2)0.5
Track Tensioning TypeGrease cylinder type
Angle - Dipper Rotation (°)182
Angle - Bucket Rotation (°)182
Capacity - Bucket (m3)0.89
Weight - With Steel Tracks (kg)14,388 – 14,819
No. of Upper Rollers (per side)2
No. of Lower Rollers (per side)7
No. of Track Guides (per side)2 optional
No. of Track Shoes (per side)44
Weight - Bucket (kg)542
Pressure - Main Relief (bar)314
No. of Hydraulic Cylinders2 (Boom), 1 (Arm), 1 (Bucket)
Swing Motor TypeAxial piston
Swing Brake TypeHydraulic braking plus automatic spring applied disc type parking brake
Torque - Swing (KNm)36
Speed - Swing (rpm)13.1
Swing Gear TypeLarge diameter, internally toothed fully sealed grease bath lubricated
Dipstick TypeRemote
Track Drive TypeFully hydrostatic, two speed with autoshift
Travel Motor TypeVariable swash axial piston type, fully guarded within undercarriage frame
Final Drive TypePlanetary reduction, bolt-on sprockets
Park Brake TypeDisc type, spring applied, automatic hydraulic release
Optional Blade
- Height – Blade: 0.9m
- Blade Lift – Above Ground: 0.45m
- Blade Cut – Below Ground: 0.51m
- Blade – Forward of Track: 0.41m
- Width – Dozer (500mm Tracks): 2490mm
- Weight – Additional Machine with 500mm Tracks: 806kg
Hydraulic Pump Type2 variable displacement axial piston type
Flow - Hydraulic (lpm)2 x 130
Hydraulic Servo Pump TypeGear type
Flow - Servo Pump (lpm)30
Relief - Valve (bar)314
Pressure - With Power Boost (bar)343
Pressure - Swing Circuit (bar)279
Pressure - Travel Circuit (bar)343
Pressure - Pilot Control (bar)40
Filtration - In Tank (micron)105 (Suction strainer)
Return - Main Line (micron)10 (Glass fibre element)
Drain - Pilot Line (micron)10 (Glass fibre element)
Pilot Line (micron)10 (Glass fibre element)
Return - Hydraulic Hammer (micron)10 (Reinforced microform element)
