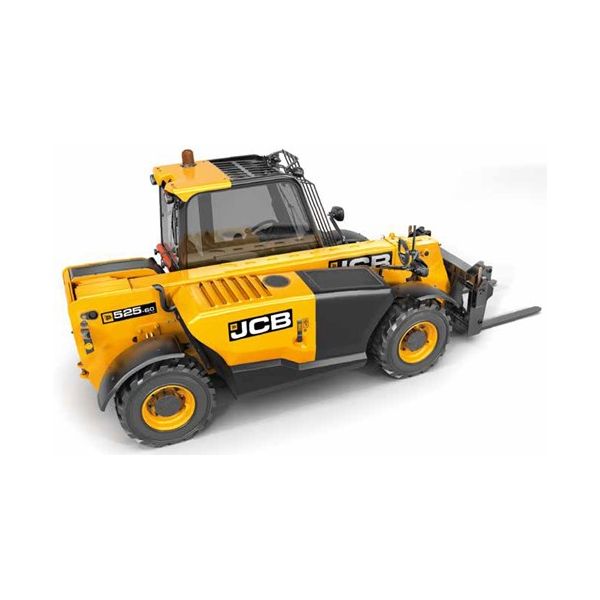

JCB 525-60 HiViz 6m Diesel Telescopic Handler Stage V HFR TU

Name: JCB 525-60 HiViz 6m Telehandler HFR | Sunbelt Rentals
SKU: 50002709

Product Code: 50002709

You're viewing a specific make and model.

We'll aim to supply this model, but if it isn't available, we'll provide a different one with similar specs, built to do the same job.

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The JCB 525-60 HiViz Stage V HFR TU is a robust and efficient telehandler, designed for optimal visibility and safety on construction sites. With its compact dimensions and powerful performance, it excels in lifting and manoeuvring in tight spaces. Ideal for various applications, this machine enhances productivity and reliability.

Item ID: 50002709

Reference: 026410

Length (mm)

3380-3480

Height (mm)

1890-1970

Width (mm)

1840-1890

Weight (kg)

5490

Power Source / Fuel Type

Diesel

Battery (V/Ah)

12V/120Ah

Voltage - System (V)

Output - Alternator (Ah)

100

Engine Make

Kohler

Engine Model

KDI2504TCR

Engine Serial Number

ED370026S05002200580 / ED370026S5035200650 (2021) / 5221610030 (2022) & 5221601520 (2022) / 5317301100 (2023)

Engine Variant Options

Diesel KDI 1903 TCR / Diesel KDI 2504TCR / Diesel KDI 2504TCRE5

Engine Stage/Tier

StageV

Power - Engine (max) (kW)

Power - I.C. Engine Rating (hp)

Time - Boom Raise (Sec)

7.6

Time - Boom Lower (Sec)

5.3

Time - Boom Extend (Sec)

7.5

Time - Retract (Sec)

3.7

Time - Bucket Dump (Sec)

1.9

Time - Bucket Crowd (Sec)

2.9

Angle - Carriage Roll Back (°)

Angle - Carriage Dump (°)

114

Capacity - Lifting (kg)

2500

Capacity - At Full Forward Reach (kg)

800

Capacity - At Full Lift Height (kg)

2000

Speed - Travel (mph)

15.5

Steering & Traction Drive

Permanent 4 Wheel Drive, 3 modes

Flow Rate - System Pressure (l/min @ bar)

80@260

Transmission Type

2 Speed

Loads - Axle (kg)

2730-2500 (5230)

Loads - Axle (Laden) (kg)

7010-720 (7730)

Joystick Control

Single lever

Capacity - Fuel Tank (L)

Capacity - Hydraulic Tank (L)

Speed - Rated (rpm)

1500

Torque (Nm @ rpm)

310@1500

No. of Cylinders

Combustion System

4 Stroke

Displacement (L)

2.5

No. of Valves - Per Cylinder
