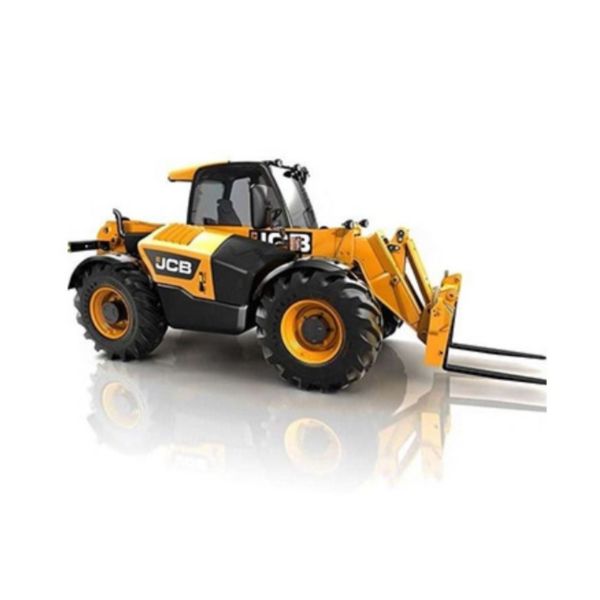

JCB 531-70 7m Diesel Telescopic Handler Stage V HFR TU

Name: JCB 531-70 7m Diesel Telescopic Handler Stage V HF | Sunbelt
SKU: 50002712

Product Code: 50002712

You're viewing a specific make and model.

We'll aim to supply this model, but if it isn't available, we'll provide a different one with similar specs, built to do the same job.

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The JCB 531-70 Stage V HFR TU is a robust telehandler designed for efficiency on construction sites. With its powerful engine and versatile lifting capabilities, it ensures optimal performance in lifting and moving materials. Its compact dimensions make it ideal for tight spaces, enhancing productivity and ease of use.

Item ID: 50002712

Reference: 026420

Length (mm)

4990

Height (mm)

2490

Width (mm)

2230

Weight (kg)

7060

Power Source / Fuel Type

Diesel

Battery (V/Ah)

12V

Voltage - System (V)

Engine Make

JCB

Engine Model

430DieselMAX

Engine Serial Number

FN320/41537U1445621 (2021) / FN320/41537U1125422 (2022)

Engine Variant Options

JCB 430 DieselMAX Stage V, 3 litre, 4 cylinder, turbo charged 3L turbocharged and aftercooled electronic common rail fuel injection (Stage V) > 55kW Engine 55kW (74hp) @ 2200rpm, 440Nm torque at 1300rpm JCB 448 DieselMAX Stage V, 4.8 litre, 4 cylinder, turbo charged Engine 81kW (109hp) @ 2200rpm, 516Nm torque at 1300rpm

Engine Stage/Tier

StageV

Power - Engine (max) (kW)

Power - I.C. Engine Rating (hp)

Time - Boom Raise (Sec)

7.2

Time - Boom Lower (Sec)

5.4

Time - Boom Extend (Sec)

6.8

Time - Retract (Sec)

Time - Bucket Dump (Sec)

3.5

Time - Bucket Crowd (Sec)

2.9

Angle - Carriage Roll Back (°)

42.6

Angle - Carriage Dump (°)

37.5

Capacity - Lifting (kg)

3100

Capacity - At Full Forward Reach (kg)

1250

Capacity - At Full Lift Height (kg)

2400

Speed - Travel (mph)

Steering & Traction Drive

2/4WD, 3 steer modes

Flow Rate - System Pressure (l/min @ bar)

82@240

Transmission Type

4 speed powershift gearbox.

Loads - Axle (kg)

3660-3690 (7350)

Loads - Axle (Laden) (kg)

8920-1520 (10450)

Joystick Control

Single lever mechanical joystick, with push button extend and retract

Capacity - Fuel Tank (L)

146

Capacity - Hydraulic Tank (L)

115

Speed - Rated (rpm)

2200

Torque (Nm @ rpm)

440@1300

No. of Cylinders

Cylinder Arrangement

In Line

Combustion System

4- Stroke Direct Injection

Displacement (L)

2.98

No. of Valves - Per Cylinder

Pressure - Lubricating Oil (bar)

4.5

Fuel Injection Pump

High pressure pump, with a common rail and electronic

controlled injectors with combined fuel metering
