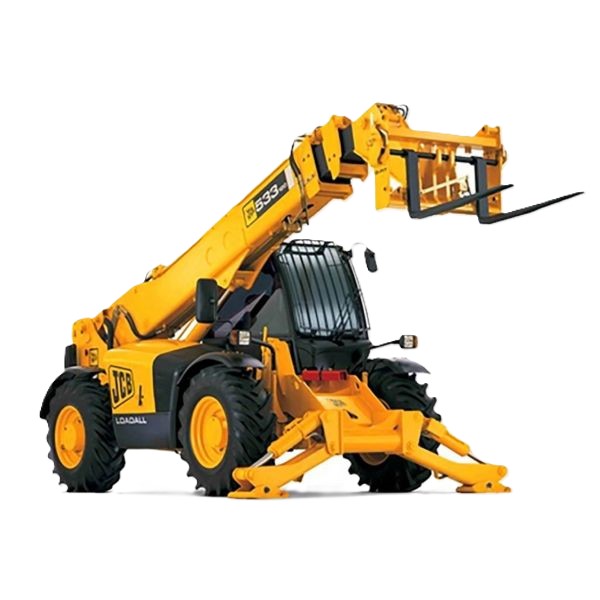

JCB 533-105 3.3t 10.5m Diesel Telescopic Handler Tier 4

Name: JCB 533-105 3.3t 10.5m Diesel Telescopic Handler T | Sunbelt
SKU: 50002716

Product Code: 50002716

You're viewing a specific make and model.

We'll aim to supply this model, but if it isn't available, we'll provide a different one with similar specs, built to do the same job.

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The JCB 533-105 Tier 4 is a robust telehandler designed for versatility on construction sites. With its powerful engine and exceptional lifting capabilities, it ensures efficient handling of materials. The compact design allows for easy manoeuvrability in tight spaces, making it an essential addition to your equipment fleet.

Item ID: 50002716

Reference: 026055

Length (mm)

4380

Height (mm)

2490

Width (mm)

2360

Weight (kg)

8850

Power Source / Fuel Type

Diesel

Battery (V/Ah)

28V

Voltage - System (V)

Engine Make

JCB

Engine Model

T4F444

Engine Serial Number

SL320/40372U0608415

Engine Variant Options

JCB 430 DieselMAX Stage V, 3 litre, 4 cylinder, turbo charged - Engine 55kW (74hp) @ 2200rpm, 440Nm torque at 1300rpm, JCB 448 DieselMAX Stage V, 4.8 litre, 4 cylinder, turbo charged - Engine 81kW (109hp) @ 2200rpm, 516Nm torque at 1300rpm

Engine Stage/Tier

Tier4

Power - Engine (max) (kW)

Power - I.C. Engine Rating (hp)

Time - Boom Raise (Sec)

8.8

Time - Boom Lower (Sec)

8.5

Time - Boom Extend (Sec)

13.2

Time - Retract (Sec)

13.6

Time - Bucket Dump (Sec)

2.4

Time - Bucket Crowd (Sec)

3.4

Angle - Carriage Roll Back (°)

41.2

Angle - Carriage Dump (°)

2.4

Capacity - Lifting (kg)

3300

Capacity - At Full Forward Reach (kg)

1000

Capacity - At Full Lift Height (kg)

2500

Speed - Travel (mph)

20.5

Steering & Traction Drive

2/4WD

Flow Rate - System Pressure (l/min @ bar)

82@240

Transmission Type

Torque converter, 4-speed powershift gearbox

Loads - Axle (kg)

Front axle (per front wheel): 2312 kg, Rear axle (per rear wheel): 2078 kg

Loads - Axle (Laden) (kg)

Front axle (per front wheel): 5565 kg, Rear axle (per rear wheel): 476 kg

Joystick Control

Single lever mechanical joystick

Capacity - Fuel Tank (L)

146

Capacity - Hydraulic Tank (L)

125

Speed - Rated (rpm)

2200

Torque (Nm @ rpm)

440@1300

No. of Cylinders

Cylinder Arrangement

In line

Combustion System

4-stroke

Displacement (L)

4.4

No. of Valves - Per Cylinder

Pressure - Lubricating Oil (bar)

6.5

Fuel Injection Pump

High pressure with electronically controlled fuel metering Delphi DFP 4.2

Building Information Modelling (BIM)

Digital Download

View Model
