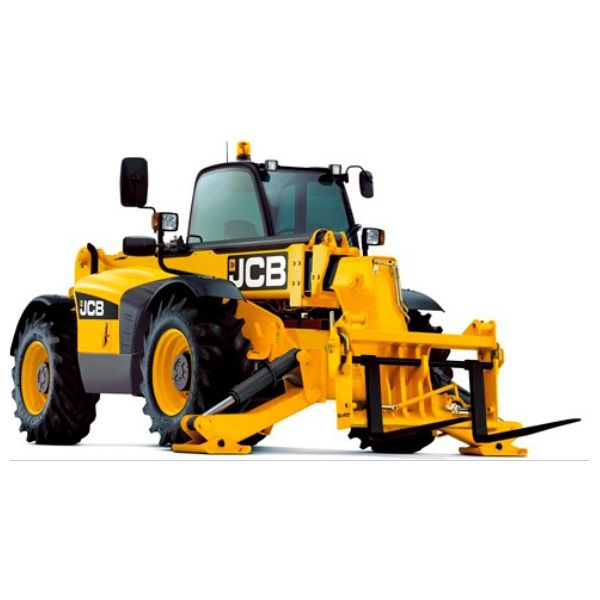

JCB 540-170 4t 17m Diesel Telescopic Handler Tier 4

Name: JCB 540-170 4t 17m Diesel Telescopic Handler Tier | Sunbelt
SKU: 50002726

Product Code: 50002726

You're viewing a specific make and model.

We'll aim to supply this model, but if it isn't available, we'll provide a different one with similar specs, built to do the same job.

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The JCB 540-170 Tier 4 is a robust telehandler designed for versatility on construction sites. With its impressive lift capacity and reach, it effortlessly handles materials in tight spaces. Ideal for various lifting tasks, this machine combines reliability and performance, making it a valuable addition to your equipment fleet.

Item ID: 50002726

Reference: 026059

Length (mm)

6360

Height (mm)

2690

Width (mm)

2440

Weight (kg)

12060

Power Source / Fuel Type

Diesel

Battery (V/Ah)

12V

Voltage - System (V)

Engine Make

JCB

Engine Model

T4F444

Engine Serial Number

SL320/40925U1281316

Engine Variant Options

JCB 430 DieselMAX Stage V, 3 litre, 4 cylinder, turbo charged - Engine 55kW (74hp) @ 2200rpm, 440Nm torque at 1300rpm JCB 448 DieselMAX Stage V, 4.8 litre, 4 cylinder, turbo charged - Engine 81kW (109hp) @ 2200rpm, 516Nm torque at 1300rpm - Option

Engine Stage/Tier

Tier4

Power - Engine (max) (kW)

Power - I.C. Engine Rating (hp)

Height - Lifting (max) (m)

16.7

Extension - Horizontal Boom (m)

7.09

Width - Cab (mm)

940

Ground Clearance (mm)

400

Wheelbase (m)

2.75

Size - Wheel (in)

440/80-24

Radius - Turning (m)

4.1

Reach (max) (m)

9.7

Reach - At Max Lift Height (m)

1.97-4.32

Reach - With 1t Payload (m)

5.68-11.7

Width - Over Tyres (mm)

2440

Length - Overall to Front Tyres (mm)

5080

Length - Overall to Front Carriage (mm)

6360

Bore & Stroke (mm)

103x132

Time - Boom Raise (Sec)

22.7

Time - Boom Lower (Sec)

23.4

Time - Boom Extend (Sec)

18.3

Time - Retract (Sec)

16.7

Time - Bucket Dump (Sec)

4.2

Time - Bucket Crowd (Sec)

4.6

Angle - Carriage Roll Back (°)

Angle - Carriage Dump (°)

8.8

No. of Extracting Sections

Capacity - Lifting (kg)

4000

Capacity - At Full Forward Reach (kg)

800

Capacity - At Full Lift Height (kg)

2500

Speed - Travel (mph)

Steering & Traction Drive

2/4WD

Flow Rate - System Pressure (l/min @ bar)

170@260

Transmission Type

Torque converter, 4 speed powershift gearbox

Loads - Axle (kg)

5325-6045 (11370)

Loads - Axle (Laden) (kg)

1480-2667 (17147)

Joystick Control

Single lever mechanical joystick

Capacity - Fuel Tank (L)

146

Capacity - Hydraulic Tank (L)

180

Speed - Rated (rpm)

2200

Torque (Nm @ rpm)

440@1300

No. of Cylinders

Cylinder Arrangement

In Line

Combustion System

4- Stroke Direct Injection

Displacement (L)

4.4

No. of Valves - Per Cylinder

Pressure - Lubricating Oil (bar)

6.5

Fuel Injection Pump

High pressure with electronically controlled fuel metering

Building Information Modelling (BIM)

Digital Download

View Model
