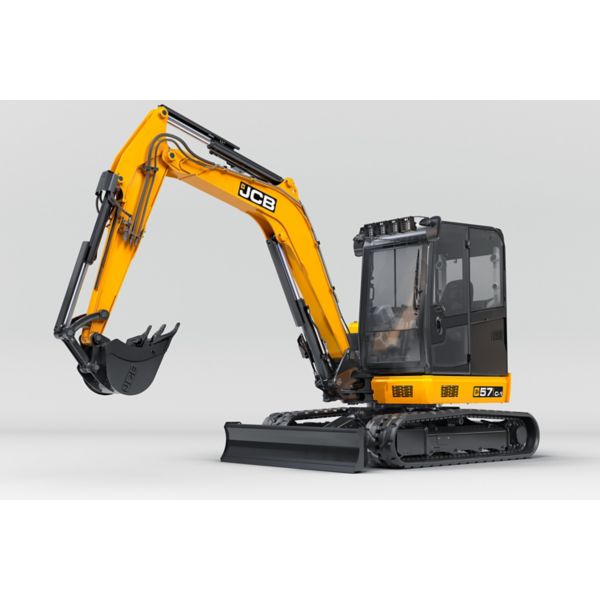

JCB 57C-1 5.5t Diesel Tracked Midi Excavator Tier 3

Name: JCB 57C-1 5.5t Diesel Tracked Midi Excavator Tier | Sunbelt
SKU: 50002897

Product Code: 50002897

You're viewing a specific make and model.

We'll aim to supply this model, but if it isn't available, we'll provide a different one with similar specs, built to do the same job.


Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The JCB 57C-1 Tier 3 is a robust compact excavator designed for versatility and efficiency on construction sites. Its impressive manoeuvrability and powerful performance make it ideal for various tasks, ensuring productivity in tight spaces.

Item ID: 50002897

Reference: 021040

Length (mm)

5490

Height (mm)

2560

Width (mm)

1850

Weight (kg)

5483

Bore & Stroke (mm)

88 x 102

Length - Track (mm)

1980

Length - Undercarriage (mm)

2490

Kingpost Clearance (mm)

630

Length - Cab/Canopy (mm)

8700

Width - Cab/Canopy (mm)

1020

Height - Cab/Canopy (mm)

2560

Height - Dump (Range) (m)

4.46

Distance - Sprocket Idler Centres (mm)

1980

Radius - Tailswing (m)

1.3

Height - Dozer (mm)

400

Width - Dozer (mm)

1960

Height - Dozer Blade (mm)

400

Width - Dozer Blade (mm)

1960

Width - Substructure (mm)

1840

Width - Over Tracks (mm)

80 - 1950

Height - Track (mm)

560

Width - Track (mm)

400

Gauge - Track (m)

1.55

Height - Dig (max) (m)

5.85

Length - Boom (mm)

2.87

Reach - Digging (max) (m)

6.26

Reach - Digging on Ground (max) (m)

6.14

Depth - Dig Below Ground (m)

0.46

Height - Dozer Above Ground (max) (m)

0.43

Depth - Dig Dozer Up (m)

3.86

Depth - Dig Dozer Down (m)

40.8

Height - To Dipper Nose Pivot Pin (mm)

5150

Radius - Front Swing No Offset (m)

2.61

Radius - Front Swing Fully Offset (m)

2.15

Length - Dozer Centre of Boss (mm)

1140

Counterweight Clearance (mm)

620

Length - Dipper (mm)

1820

Depth - Vertical Wallcut (m)

2.25

Capacity - Hydraulic System (L)

100

Capacity - Fuel Tank (L)

Capacity - Hydraulic Tank (L)

Torque (Nm @ rpm)

143 @ 1800

No. of Cylinders

Displacement (L)

2.179

Gradeability (%)

Cooling System

Water Cooled

Speed - Travel (Range) (mph)

1.9 - 2.9

Pressure - Working (bar)

190

Power - Tractive (kN)

Payload (t)

5.5

Aspiration

Naturally aspirated

Capacity - Cooling Tank (L)

Pump Type

63cc

Capacity - Engine Oil (L)

9.1

Output - Nominal (lpm)

126

Motor - Hydraulic

Piston

Tailswing Type

Zero

Tearout - Bucket (max) (kN)

Tearout - Dipper (max) (kN)

Speed - Slew (rpm)

8.3

No. of Bottom Rollers

Pressure - Ground Bearing (kg/cm2)

0.36 (Rubber Tracks), 0.26 (Steel Tracks)

Track Tensioning Type

Grease

Angle - Boom Swing Right (°)

Angle - Boom Swing Left (°)

Angle - Dipper Rotation (°)

121.1

Angle - Approach (°)

Angle - Bucket Rotation (°)

181.1

Capacity - Bucket (m3)

1.2 - 1.5

Weight - With Steel Tracks (kg)

+276

Weight - With Hydraulic Quickhitch (w/o hoses) (kg)

+72.5

Weight - FOPS Guard (kg)

+15.7

Pressure - Main Relief (bar)

216 - 265

Flow Rate - Hydraulic Aux (L)

40 - 90
