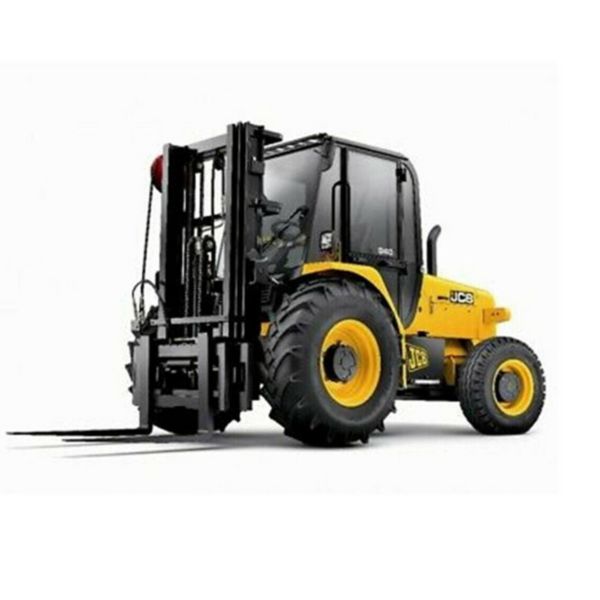

JCB 926-2 2.6t 2WD Diesel Rough Terrain Forklift
Introducing the JCB 926-2 Tier 4, a robust and efficient machine designed for optimal performance in construction projects. With its compact design and powerful engine, it ensures reliability and versatility on site. Ideal for various applications, this model is a must-have for any construction company.
Item ID: 50002745
Reference: 026014
Basic Dimensions
Length (mm)3600
Height (mm)2950 (3.6m Mast) / 2410 (4.5m Mast)
Width (mm)2200
Weight (kg)5910
Environmental & Sustainability
CO2 per Litre of Fuel Consumed2.68 kg CO₂/L
Consumption - Fuel (l/hr)3.7
Average Usage Emissions Per Operating Hour (ERA)11.7
Average Consumption Per Operating Hour (ERA)3.7
Average Engine Operating Hours Over A Rental Day (ERA)3.2
Convenience Features
Reverse LightsYes
Side-Entry CabYes
Lighting EquipmentYes
SeatYes
Rotating BeaconYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)12V / 95Ah
Voltage - System (V)12
Engine MakeJCB
Engine ModelTC63
Engine Stage/TierTier4
Power - Engine (max) (kW)55 - 63
Power - I.C. Engine Rating (hp)74 - 84
Safety Information
Operator HornYes
Service BrakeYes
Parking BrakeYes
Vibration - Whole Body (m/s2)0.7
Vibration - Hand-Arm (m/s2)2.5
Noise Level (dB)84
Sound Pressure (dB)78
MirrorsYes
SeatbeltYes
Reverse Warning AlarmYes
Technical Dimensions
Height - Lifting (max) (m)3.6
Size - Tyres16.5/85-24
Lift - Free (m)0.15
Height - Overall (Mast Extended) (mm)4300
Height - Mast Retracted (mm)2200
Height - Cab (mm)2450
Height - Cab Overhead Guard (mm)2450
Width - Platform (mm)1200
Height - Platform (mm)450
Movement - Lateral (mm)100
Load Centre (mm)500
Load Spacing (mm)5000
Length - Fork (mm)1200
Length - To Face of Fork (mm)2700
Width - Fork (mm)125
Thickness - Fork (mm)45
Size - Framework Cut (mm)1000
Fork Spacing (max) (mm)1100
Radius - Turning (Range) (m)4.49
Width - Required in Aisle (m)4.8
Width - Required in Aisle 90° Turning (m)5.2
Height - Seat/Stand (mm)1100
Height - Tow Bar Coupling (mm)350
Gauge - Wheel (Front/Rear) (m)4.4
Ground Clearance - Range (mm)370
Wheelbase - Range (m)2.13 - 2.57
Technical Specifications
Capacity - Lifting (kg)2600
Handling OperationsHand operated
Steering & Traction Drive
- JCB epicyclic hub‑reduction drive axle
- Max‑Trac torque‑proportioning differential
- Hydrostatic power steering
- 2WD (dead‑steer rear axle)
Flow Rate - System Pressure (l/min @ bar)55 l/min @ 221 bar
Transmission TypeJCB epicyclic hub‑reduction axle 4F / 4R mechanical gearbox
Capacity - Fuel Tank (L)88
Capacity - Hydraulic Tank (L)60
Torque (Nm @ rpm)350
No. of Cylinders4
Displacement (L)4.4
Gradeability (%)35
Cooling SystemLiquid
Tyres TypeRough‑terrain pneumatic
Angle - Tilt-Up (°)15
Angle - Tilt-Down (°)10
Speed - Travel (Range) (mph)18 (Unladen)
Pressure - Working (bar)221
Speed - Lifting (Range) (m/sec)0.40
Speed - Lowering (Range) (m/sec)0.50
Speed - Traverse (m/sec)0.25
Power - Tractive (kN)28
Gearbox TypeSynchro‑shuttle mechanical
Load - On Forks (Nominal) (t)2.6
No. of Drive Wheels2
Traction2WD
Service Brake TypeHydraulically
Speed - Rated (Range) (rpm)2200
Capacity - Engine Coolant (L)12
