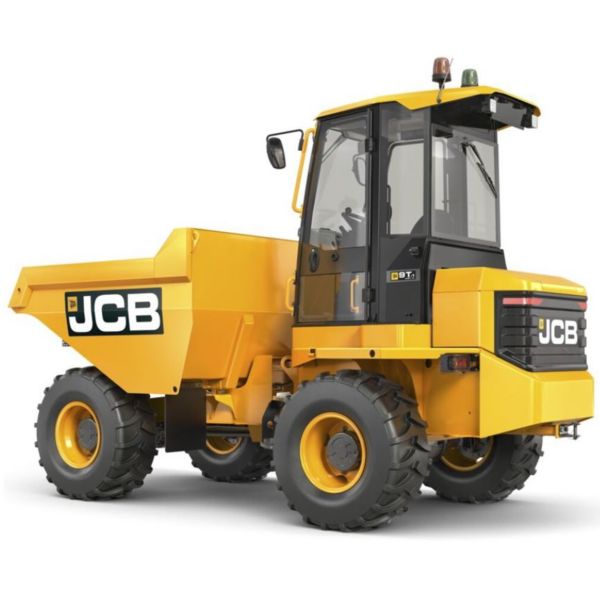

JCB 9T-2 9t Diesel Front Tip Cab Site Dumper Stage V HFR
The JCB 9T-2 Stage V HFR is a robust and efficient dumper, designed for optimal performance on construction sites. Its compact dimensions ensure versatility, making it ideal for various tasks. Experience reliability and power with this advanced machinery.
Item ID: 50002830
Reference: 015809
Basic Dimensions
Length (mm)4910
Height (mm)1730
Width (mm)2380
Weight (kg)5750
Environmental & Sustainability
CO2 per Litre of Fuel Consumed747.7 g/kWh
Average Usage Emissions Per Operating Hour (ERA)25.9
Average Consumption Per Operating Hour (ERA)8.2
Average Engine Operating Hours Over A Rental Day (ERA)3.2
Convenience Features
Road LightingYes
HeaterYes
Load SensingYes
TelematicsYes
Sunbelt Paint/Decals/Hi Viz RaYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)12V / 110Ah
Voltage - System (V)12
Output - Alternator (Ah)105
Engine MakeJCB
Engine ModelDieselMAX430StageV55kW
Engine Stage/TierStageV
Power - Engine (max) (kW)55
Power - I.C. Engine Rating (hp)74
Safety Information
Service BrakeYes
Parking BrakeYes
Noise Level (dB)101
Sound Pressure (dB)85
SeatbeltYes
RollbarYes
Folding ROPS FrameYes
Enclosure CabYes
Hi VizYes
Standard Steps & HandlesYes
Technical Dimensions
Ground Clearance (mm)360
Wheelbase (m)2.68
Width - Over Tyres (mm)2230
Bore & Stroke (mm)92 x 112
Size - Tyres500-60-22.5 16PR
Height - Loadover (m)2
Radius - Turning (Range) (m)6.22 - 6.37
Height - Tip (m)2.41
Height - To Skip Front Lip (Untipped) (m)1.73
Height - To Skip Front Lip (Tipped) (m)0.42
Height - Over Skip (Tipped) (m)2.68
Distance - Front Discharge (m)0.53
Diameter - Turning Circle (m)5.76 - 5.9
Height - To Top of ROPS (With/w/o Beacon) (mm)3570 / 3350
Height - To Top of ROPS/FOPS (With/w/o Beacon) (mm)3570 / 3390
Height - ROPS Folded (mm)2.32
Height - ROPS/FOPS Folded (mm)3.15
Height - To Top of Cab (With/w/o Beacon) (mm)3.51 / 3.34
Width - Skip (mm)2500
Width - Track (Standard/Narrow Tyres) (mm)1880
Length - ROPS (mm)5140
Technical Specifications
Transmission TypePowershuttle
Capacity - Fuel Tank (L)65
Capacity - Hydraulic Tank (L)60
Torque (Nm @ rpm)440 @ 2200
No. of Cylinders4
Displacement (L)0.289
Fuel Injection PumpCommon rail direct injection
Brakes TypeFoot brake-oil immersed discs on front/rear / Over centre parking brake-dry disc on gearbox
Speed - Travel (Range) (mph)2.8 (1st Gear), 4.7 (2nd Gear), 8.8 (3rd Gear), 15.3 (4th Gear) - Unladen
Pressure - Working (bar)1.6–4.5bar (23.2–65.3psi)
Drive Control Type4/4 Forward and reverse - permanent 4WD
Payload (t)9
Angle - Skip Tip (°)80
Weight - Operating (ROPS - Full Tank & 75kg Operator) (kg)5400
Weight - Operating (ROPS/FOPS - Full Tank & 75kg Operator) (kg)5800
Weight - Operating (Cab - Full Tank & 75kg Operator) (kg)5740
Tipping TypeFront Tip
Joint TypeCentre joint bolts 259N·m
Angle - Steering (°)30
Oscillation (°)10
Capacity - Skip (Struck) (L)3735
Capacity - Skip (Heaped) (L)4531
Capacity - Skip (Liquid) (L)2435
Angle - Departure (Recovery Hitch/Tow Hitch) (°)27/20
AspirationTurbocharged
Rotation - DirectionClockwise
Starting AidFuel, oil and coolant heaters.
