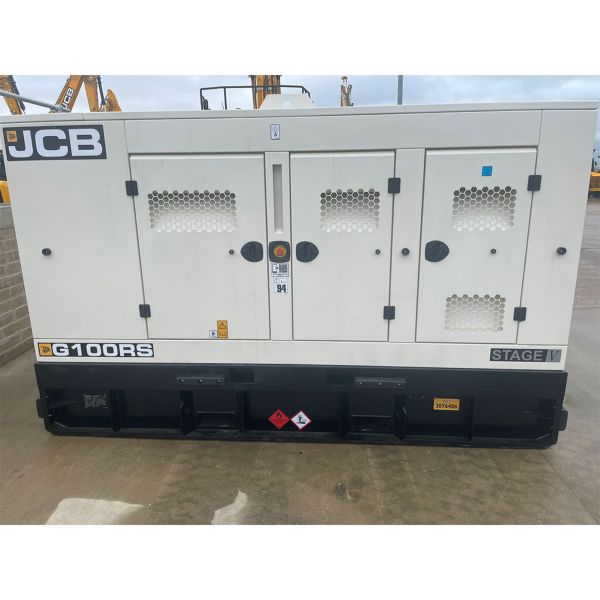

JCB G100RS 100kVA Diesel Generator Stage V Sync
The JCB G100RS is a robust and reliable generator, designed to meet the demanding needs of construction sites. Its durable construction guarantees longevity, making it an ideal choice for both short-term and long-term projects. This generator is equipped with user-friendly controls, ensuring seamless operation for all users.
Item ID: 50001298
Reference: 029126
Basic Dimensions
Length (cm)319.2
Width (cm)110
Height (cm)205
Weight (kg)258
Environmental & Sustainability
Emissions LevelDOC/DPF/SCRStageV
Consumption - Fuel (l/hr)24.9(100%Standby)/23.4(100%Prime)/17.6(75%Prime)/11.4(50%Prime)
Sound Pressure (dB)66
Average Usage Emissions Per Operating Hour (ERA)101.1
Average Consumption Per Operating Hour (ERA)32
Average Engine Operating Hours Over A Rental Day (ERA)5.5
Engine Stage/TierStageV
Power Source
Power Source / Fuel TypeDiesel
Voltage - Options (V)230 / 400
Phase3
Power - Prime (kVA/kW)100kVA / 80kW
Power - Standby (kVA/kW)110kVA / 88kW
Power - Factor (cos)0.8
Capacity - Fuel Tank (L)280
EngineJCB 448 TA5-129
Battery (V/Ah)12V
Voltage (V)12
Battery TypeLeadAcid
Engine MakeJCB
Engine ModelDieselMAX448StageV129kW
Safety Information
Insulation ClassH
Protection Class (IP)23
Temperature - Standby (max) (°C)520
Technical Dimensions
Bore & Stroke (mm)108 x 130
Technical Specifications
Controller OptionsDeep Sea Electronics (DSE) 8610
Frequency50Hz
Alternator TypeECP34-2S4C
Autonomy
22.8hrs @ 50% load
14.8hrs @ 75% load
11.1hrs @ 100% load
Starting SystemElectric (battery powered)
No. of Cylinders4
Speed - Engine (rpm)1500
AspirationTurbocharged
Displacement (L)4.8
Displacement (cm³)4800
Capacity - Engine Oil (L)14
Injection TypeDirect, common rail
No. of Poles4
Exciter SystemBrushless via AVR
No. of Wires4
Coolant TypeWater
Capacity - Coolant (L)17
Current (A)144 (PRP)
ConnectionStar
Capacity - DEF Tank (L)17
Consumption - DEF of Fuel (%)9.4
GovernorElectronic
FilterDry Type, Paper Element
Consumption - Engine Oil0.001
Flow - Exhaust Gas @ Standby (m3/min)600
Back Pressure - Allowed (max) (mbar)8.5
Voltage - Alternator RegulatorAVR
No. of Batteries1
Volume - Shipping (Sea Ready) (m3)7.8
Recommended OilAPI CJ‑4 / API CK‑4
Output - RPR Rating (kW)103
FinishTotal Protection +
Regulator TypeAVR
Voltage - Regulation @ Steady State (+/- %)1
