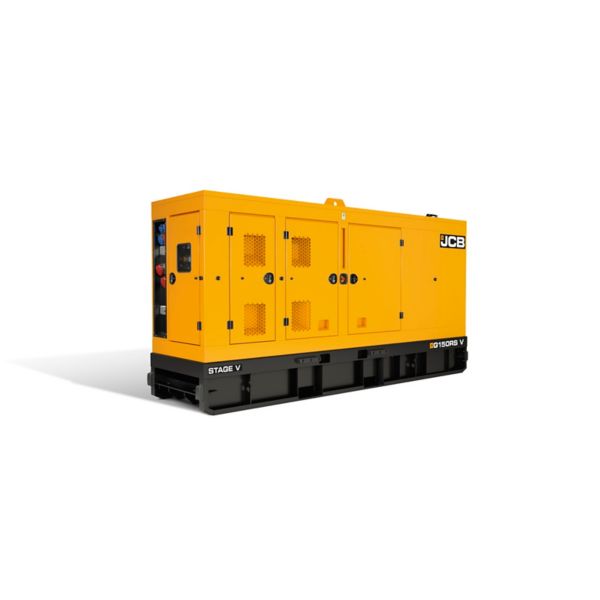

JCB G150RS 150kVA Diesel Generator Stage V Sync
The JCB G150RS is a robust and reliable generator, ideal for construction sites and outdoor events. With its compact design, it delivers a powerful output while maintaining efficiency. This generator is engineered for durability, ensuring consistent performance even in demanding conditions. The user-friendly interface makes operation straightforward, allowing for seamless integration into your project needs. Whether you require backup power or a primary source, the JCB G150RS stands ready to deliver.
Item ID: 50001299
Reference: 029100
Basic Dimensions
Length (cm)422
Width (cm)110
Height (cm)220
Weight (kg)365
Environmental & Sustainability
Emissions LevelDOC/DPF/SCR/CUCStageV
Consumption - Fuel (l/hr)46.8(100%Standby)/41(100%Prime)/30.8(75%Prime)/22(50%Prime)
Sound Pressure (dB)68
Average Usage Emissions Per Operating Hour (ERA)101.1
Average Consumption Per Operating Hour (ERA)32
Average Engine Operating Hours Over A Rental Day (ERA)5.5
Engine Stage/TierStageV
Power Source
Power Source / Fuel TypeDiesel
Voltage - Options (V)230 / 400
Phase3
Power - Prime (kVA/kW)150kVA / 120kW
Power - Standby (kVA/kW)165kVA / 132kW
Power - Factor (cos)0.8
Capacity - Fuel Tank (L)400
EngineFPT N67TEVP05.00
Battery (V/Ah)24V
Voltage (V)24
Battery TypeLeadAcid
Engine MakeIvecoFPT
Engine ModelN67TEVP05
Safety Information
Insulation ClassH
Protection Class (IP)23
Temperature - Standby (max) (°C)550
Technical Dimensions
Bore & Stroke (mm)110 x 135
Technical Specifications
Controller OptionsDeep Sea Electronics (DSE) 8610
Frequency50Hz
Alternator TypeECO38-2S4 C
Autonomy19hrs @ 75% load
Starting SystemElectric (battery powered)
No. of Cylinders6
Speed - Engine (rpm)1500
AspirationTurbocharged
Displacement (L)6.7
Displacement (cm³)6700
Capacity - Engine Oil (L)18
No. of Poles4
Exciter SystemBrushless via AVR
No. of Wires4
Coolant TypeWater
Capacity - Coolant (L)28
Current (A)216 (PRP)
ConnectionStar
Air Flow - Standby Intake (kg/hr)618
Air Flow - Standby Cooling (m3/min)3.8
GovernorElectronic
FilterDry Type, Paper Element
Consumption - Engine Oil0.003
Flow - Exhaust Gas @ Standby (m3/min)12
Voltage - Alternator RegulatorAVR
No. of Batteries2
Volume - Shipping (Sea Ready) (m3)10.2
Recommended OilAPI CI‑4 / API CJ‑4 / API CK‑4
Output - RPR Rating (kW)181
FinishTotal Protection +
Regulator TypeAVR
Voltage - Regulation @ Steady State (+/- %)1
Air Flow
618kg/h (Standby intake)
3.8m3/min (Standby cooling)
