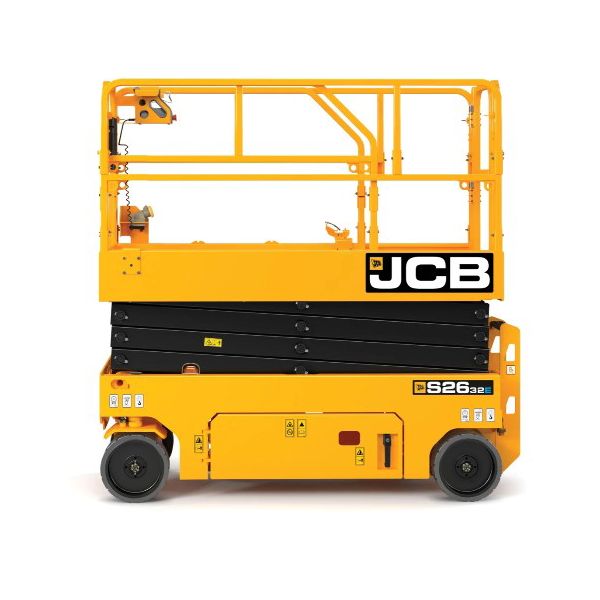

JCB S2632E 26' Electric Scissor Lift Earth Bonded
The JCB S2632E Earth Bonded is a robust and versatile electric scissor lift, designed for seamless performance on construction sites. Its compact dimensions ensure easy manoeuvrability, making it ideal for tight spaces. Perfect for lifting and transporting materials with ease and efficiency.
Item ID: 50000081
Reference: 075249
Basic Dimensions
Length (m)2.39
Width (m)0.81
Height (m)2.35
Weight (kg)2062
Environmental & Sustainability
Sound Power (dB)66.7
Convenience Features
All Motion AlarmNo
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
OutriggersNo
HourmeterYes
Manual DescentYes
Oscillating Axle ChassisNo
Proportional Lift UpYes
Slide-Out Engine TrayNo
Tilt SensorYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)4x 6V / 225Ah
Safety Information
Harness RingsYes
HornYes
Tilt AlarmYes
Vibration Level (m/s2)2.8
Emergency Stop ButtonYes
Technical Dimensions
Area - Platform (m²)2.5875
Ground Clearance (m)0.10
Height - Drive (m)7.92
Height - Guardrail (m)1.1
Height - Stowed (m)2.35
Height - Working (m)10.01
Length - Platform (m)2.25
Outreach - Horizontal (m)0.9
Size - Tyre380 x 125 mm
Turning Radius - Inside (m)0
Turning Radius - Outside (m)2.1
Wheelbase (m)1.85
Width - Platform (m)1.15
Height - Hand Rails Down (m)1.96
Height - Platform (m)7.92
Height - Working (max) (m)10.01
Deck Extension (m)0.9
Technical Specifications
Capacity - Hydraulic Tank (L)18
Gradeability (%)25
Load - Safe Working (kg)250
Load - Wheel (max) (kg)1080
No. of Lifting Eyes2.35
No. of Persons (Max)2
Slope (Max) (%)25
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2
Speed - Falling (Loaded) (s)35-40
Speed - Rising (Loaded) (s)30-35
Speed - Wind (max) (mph)28
Tyre TypeSolid Non Marking
Output - Power24 V DC (3.3 kW)
Capacity - Total (kg)250
Weight - Total Aerial Platform (max) (kg)1972
