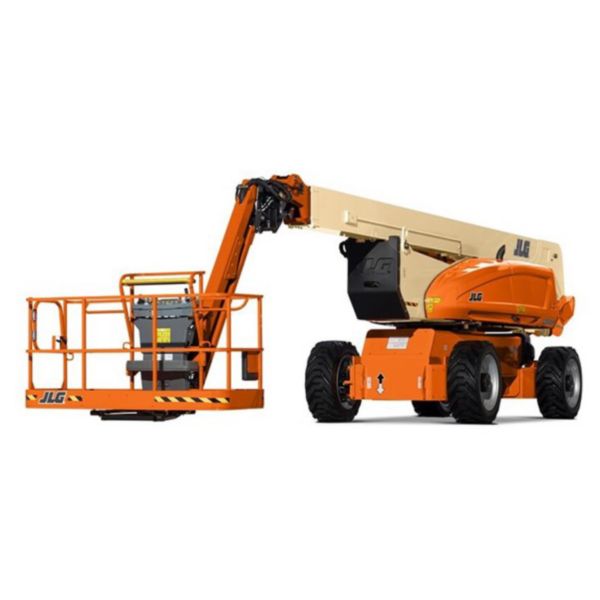

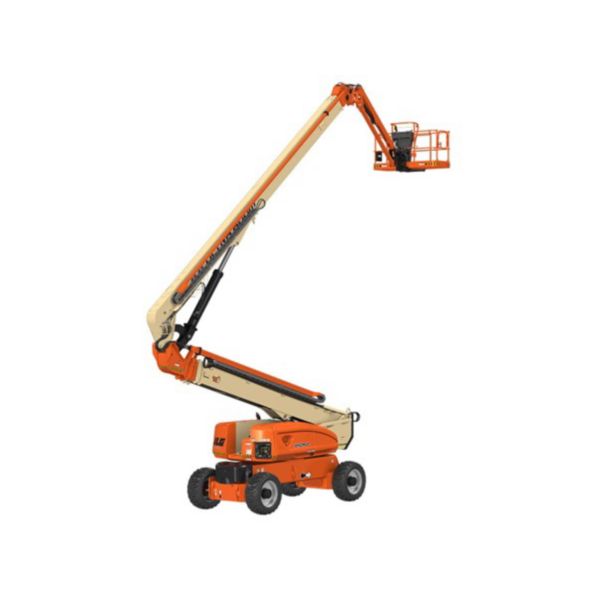

JLG 1250AJP 125' Diesel Articulating Boom Lift Earth Bonded
The JLG 1250AJP EBOND is a robust and reliable boom lift, designed for high-reaching tasks in construction and maintenance. With impressive overall dimensions, it offers exceptional stability and manoeuvrability, making it ideal for both indoor and outdoor use. Enhance your productivity with this versatile equipment.
Item ID: 50000145
Reference: 079231
Basic Dimensions
Length (m)11.46
Width (m)2.49
Height (m)3.05
Weight (kg)21000
Environmental & Sustainability
Consumption - Fuel (l/hr)Light Usage 25% - 49% - 5.80 T4i/ 7.17 T4F / Average Usage 50% - 74% - 12.45 T4i / 14.18 T4F / Heavy Usage 75% - 100% 17.82 T4i/ 16.55 T4F
Average Usage Emissions Per Operating Hour (ERA)17
Average Consumption Per Operating Hour (ERA)5.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Average Usage Emissions Per Operating Hour (ERA)17
Average Consumption Per Operating Hour (ERA)5.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Platform Load Sense SystemYes
Power Source
Power Source / Fuel TypeDiesel
EngineDeutz TCD 2.9 L4 55.4 kW / Deutz TD2011L4 56 kW 75 hp
Voltage (V)12
Engine MakeDeutz
Engine ModelTD29L4
Safety Information
Flashing BeaconYes
Harness RingsYes

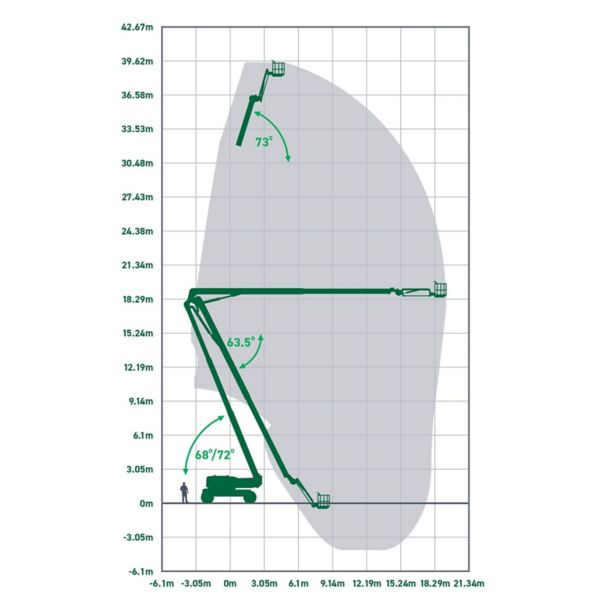

Technical Dimensions
Area - Platform (m²)2.22
Ground Clearance (m)0.3
Height - Elevated Platform (m)38.3
Height - Guardrail (m)1.1
Height - Stowed (m)3.05
Height - Up & Over (m)18.44
Height - Vertical Platform (max) (m)38.1
Height - Working (m)40.3
Length - Jib (Overall) (m)2.44
Length - Platform (m)2.44
Length - Stowed (m)11.46
Outreach - Horizontal (m)19.25
Outreach (max) (m)19.25
Tail Swing (m)0.91
Turning Radius - Outside (m)5.89 - 6.86
Wheelbase (m)3.81
Width - Platform (m)0.91
Technical Specifications
Capacity - Fuel Tank (L)117
Capacity - Hydraulic Tank (L)390
Capacity - Platform (kg)450
Capacity - Platform Unrestricted (kg)230
Gradeability (%)45
Load - Safe Working (kg)230 - 450
Load - Wheel (max) (kg)10750
No. of Persons (Max)2
Oscillation - Axle (m)0.3
Pressure - Hydraulic (bar)317
Range - Articulated Jib (°)130
Rotation - Horizontal Jib (°)125
Rotation - Hydraulic Platform (°)180
Rotation - Jib (°)130
Speed - 4WD (mph)3.2
Speed - Drive (Elevated) (mph)0.75
Speed - Drive (Lowered) (mph)3.25
Speed - Wind (max) (mph)28
Swing Non Continuous (°)360
Tyre TypeFoam Filled
