JCB S2632E 26' Electric Scissor Lift
The JCB S2632E is a robust and versatile scissor lift, ideal for construction and maintenance tasks. With its compact design and excellent lifting capabilities, it ensures efficient access to elevated work areas. Perfect for both indoor and outdoor applications, it combines reliability with ease of use.
Item ID: 50000003
Reference: 075250
Basic Dimensions
Length (m)2.39
Width (m)0.81
Height (m)2.35
Weight (kg)2062
Environmental & Sustainability
Sound Power (dB)66.7
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersNo
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisNo
Proportional Direct DC Electric DriveYes
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayNo
Tilt SensorYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)4x 6V / 225Ah
EngineElectric/Battery Lithium Iron Batteries / Lead Acid Batteries 6V x 4 (225) Aph
Voltage (V)25
Amps (A)25
Safety Information
Flashing BeaconNo
Harness RingsYes
HornYes
Tilt AlarmYes
Dual Holding BrakesYes
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)2.5875
Ground Clearance (m)0.10
Ground Clearance - Stowed (mm)100

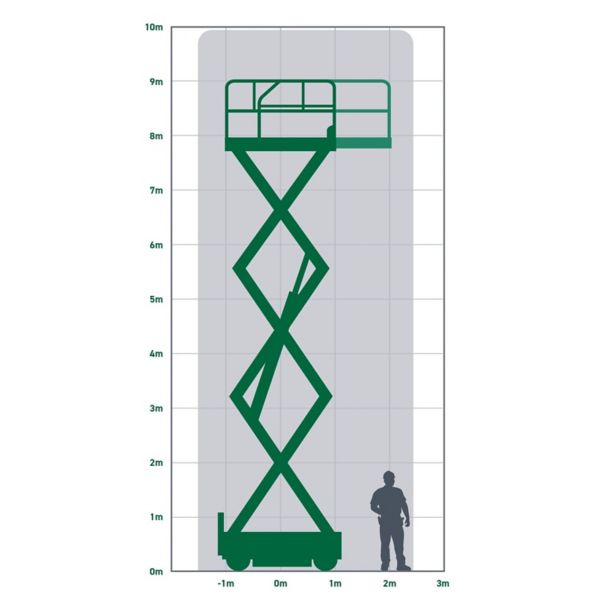

Height - Drive (m)8.1
Height - Guardrail (m)1.1
Height - Stowed (m)2.35
Height - Working (m)10.01
Length - Platform (m)2.25
Outreach - Horizontal (m)0.9
Size - Tyre380 x 133mm
Turning Radius - Inside (m)0
Turning Radius - Outside (m)2.1
Wheelbase (m)1.85
Width - Platform (m)1.15
Height - Hand Rails Down (m)1.96
Height - Platform (m)8.1
Height - Platform (max) (m)8.1
Height - Working (max) (m)10.01
Deck Extension (m)0.9
Technical Specifications
Capacity - Fuel Tank (L)0
Capacity - Hydraulic Tank (L)18
Gradeability (%)25
Load - Safe Working (kg)250
No. of Lifting Eyes2.35
No. of Persons (Max)2
Slope (Max) (%)25
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2
Speed - Falling (Loaded) (s)35-40
Speed - Rising (Loaded) (s)30-35
Speed - Wind (max) (mph)28
Tyre TypeSolid Non Marking
Charger TypeOn‑board battery charger
Drive TypeElectric drive, Front‑wheel drive, 2‑wheel steer
Output - Power3.3kW
Hydraulic SystemElectric‑hydraulic system
Capacity - Distributed (Extension Deck) (kg)120
Capacity - Distributed (Main Platform) (kg)250
Capacity - Total (kg)250
Weight - Total Aerial Platform (max) (kg)2180
