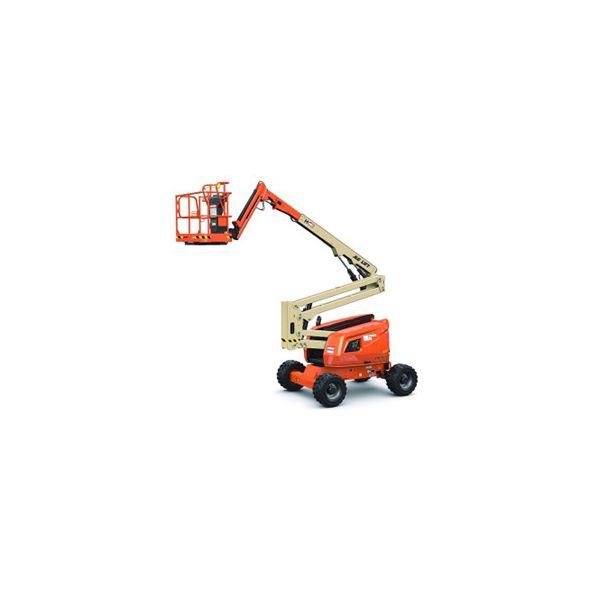

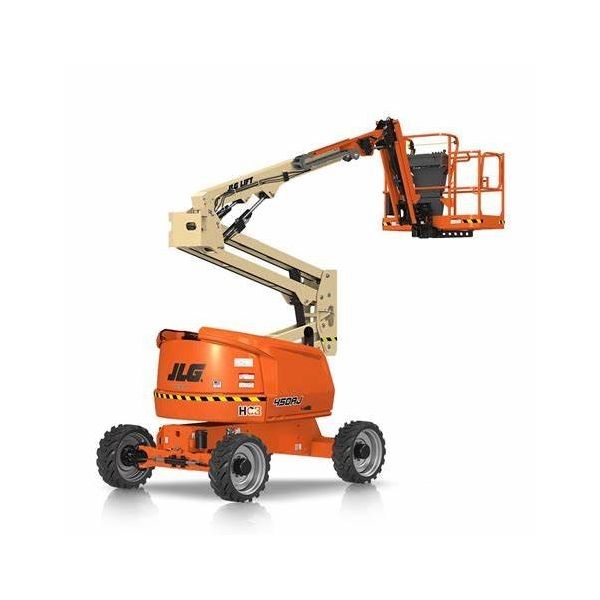

JLG 450AJ 45' Articulating Boom Lift Stage V Earth Bonded
The JLG 450AJ HC3 EBOND is a robust articulated boom lift, designed for superior reach and versatility on construction sites. With its compact dimensions, it ensures accessibility in tight spaces while providing exceptional performance. Ideal for various applications, this machine enhances productivity and efficiency.
Item ID: 50000125
Reference: 079116
Basic Dimensions
Length (m)6.53
Width (m)2.08
Height (m)2.3
Weight (kg)6418
Environmental & Sustainability
Consumption - Fuel (l/hr)Light Usage 25% - 49% 3.78 / Average Usage 50% - 74% 7.73 / Heavy Usage 75% - 100% 11.44
Sound Power (dB)76-80
Sound Pressure (dB)76-80
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Engine Stage/TierStageV
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Platform Load Sense SystemYes
Power Source
Power Source / Fuel TypeDiesel
Engine
Diesel Engine 24.8 hp, 18.5 kW, Kubota D1105, Diesel, T4i/T4f, Stage IIIA/V, CN III (FE model only)
25.2 hp, 18.8 kW, Kohler KDW1404, Diesel, Stage IIIA/V (FE model only)
Voltage (V)34
Engine MakeDeutz
Engine ModelTD29L4
Safety Information
Flashing BeaconYes
Harness RingsYes
Vibration Level (m/s2)0.55
Technical Dimensions
Area - Platform (m²)1.39
Ground Clearance (m)0.36
Height - Elevated Platform (m)13.72
Height - Guardrail (m)1.1
Height - Lowered Platform (m)2.27
Height - Stowed (m)2.29
Height - Up & Over (m)7.5
Height - Working (m)15.77
Length - Jib (Overall) (m)1.24
Length - Platform (m)1.83
Length - Stowed (m)6.11
Outreach - Horizontal (m)7.62
Outreach (max) (m)7.62
Outreach - Working (m)7.62
Tail Swing (m)0
Turning Radius - Inside (m)2.06
Turning Radius - Outside (m)4.78
Wheelbase (m)1.98
Width - Platform (m)0.76
Technical Specifications
Capacity - Fuel Tank (L)60.6
Capacity - Hydraulic Tank (L)136.27
Capacity - Platform (kg)300
Capacity - Platform Unrestricted (kg)300
Gradeability (%)30-45
Load - Safe Working (kg)250
No. of Persons (Max)3
Oscillation - Axle (m)0.1
Pressure - Floor (Occupied) (psf/kPa)9.88
Pressure - Ground Bearing (max) (kg/cm2)4.57
Pressure - Hydraulic (bar)280
Pressure - Per Tyre Contact (psi/kPa)482
Range - Articulated Jib (°)145
Rotation - Hydraulic Platform (°)180
Rotation - Turntable (°)355
Rotation - Jib (°)145
Speed - Drive (Elevated) (mph)0.68
Speed - Drive (Lowered) (mph)4.25
Speed - Wind (max) (mph)28
Swing Non Continuous (°)355
Tyre TypeFoam Filled Lug Tread 315 / 55 D20
