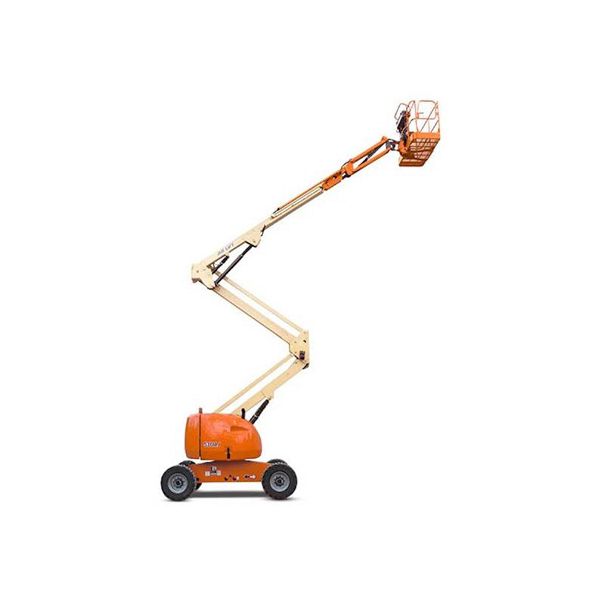

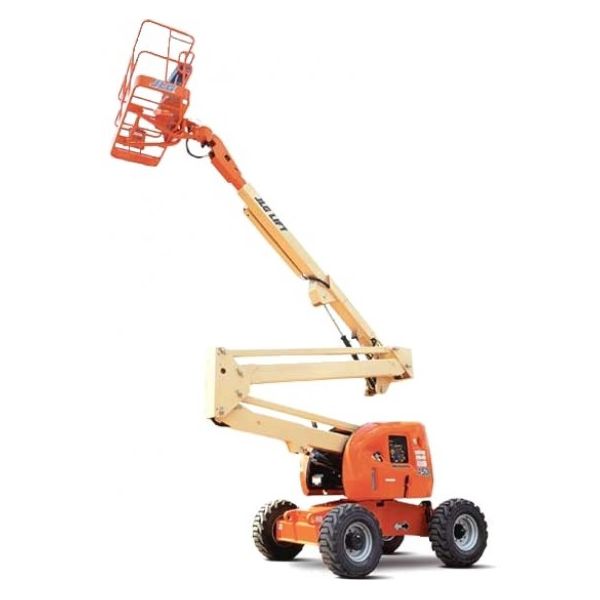

JLG 510AJ 51' Diesel Articulating Boom Lift Earth Bonded
The JLG 510AJ 51' Diesel Articulating Boom Lift is engineered for versatility and efficiency, making it ideal for various construction applications. With a maximum working height of 51 feet, this earth-bonded lift provides exceptional reach and manoeuvrability, enabling operators to access hard-to-reach areas safely. Its robust diesel engine ensures reliable performance on demanding job sites, while its articulating design allows for superior flexibility. This boom lift is perfect for both indoor and outdoor tasks, ensuring that your projects run smoothly and efficiently.
Item ID: 50000128
Reference: 079095
Basic Dimensions
Length (m)7.68
Width (m)2.34
Height (m)2.29
Weight (kg)7650
Environmental & Sustainability
Consumption - Fuel (l/hr)Light Usage 25% - 49% - 3.78L/ph / Average Usage 50% - 74% - 7.24 L/ph / Heavy Usage 75% - 100% - 11.17 L/ph
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Platform Load Sense SystemYes
Power Source
Power Source / Fuel TypeDiesel
EngineDeutz D2011L03 36.4 kW
Voltage (V)12
Engine MakeDeutz
Engine ModelD2011L03i
Safety Information
Flashing BeaconYes
Harness RingsYes
Technical Dimensions
Area - Platform (m²)1.39
Ground Clearance (m)0.29
Height - Elevated Platform (m)15.81
Height - Guardrail (m)1.1
Height - Lowered Platform (m)2.29
Height - Stowed (m)2.29
Height - Up & Over (m)7.67
Height - Vertical Platform (max) (m)15.81
Height - Working (m)18
Length - Jib (Overall) (m)1.24
Length - Platform (m)1.83
Length - Stowed (m)7.68
Outreach - Horizontal (m)9.48
Outreach (max) (m)9.48
Outreach - Working (m)9.48
Turning Radius - Inside (m)2
Turning Radius - Outside (m)5
Wheelbase (m)2.34
Width - Platform (m)0.76
Technical Specifications
Capacity - Fuel Tank (L)64
Capacity - Hydraulic Tank (L)121
Capacity - Platform (kg)230
Capacity - Platform Unrestricted (kg)230
Gradeability (%)30-45
Load - Safe Working (kg)230
No. of Persons (Max)2
Oscillation - Axle (m)0.2
Pressure - Ground Bearing (max) (kg/cm2)5.7
Pressure - Hydraulic (bar)310
Range - Articulated Jib (°)145
Rotation - Hydraulic Platform (°)180
Rotation - Turntable (°)360
Rotation - Jib (°)135
Speed - 4WD (mph)4.5
Speed - Drive (Elevated) (mph)0.5-0.7
Speed - Drive (Lowered) (mph)4.5
Speed - Wind (max) (mph)28
Swing Non Continuous (°)360
Tyre TypeFoam Filled
