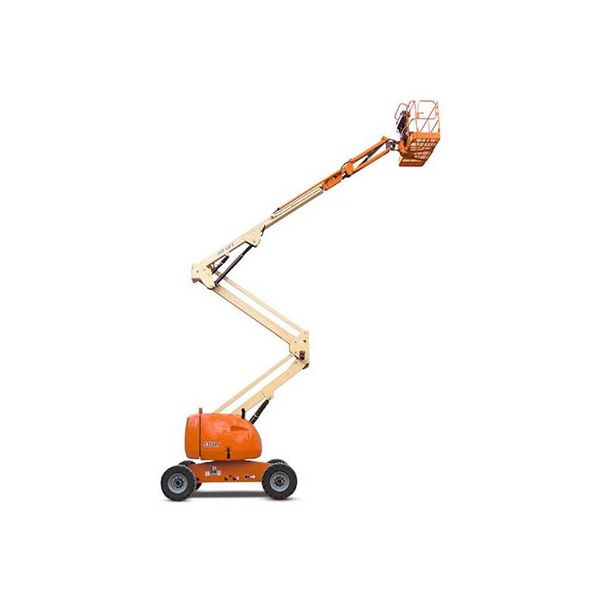

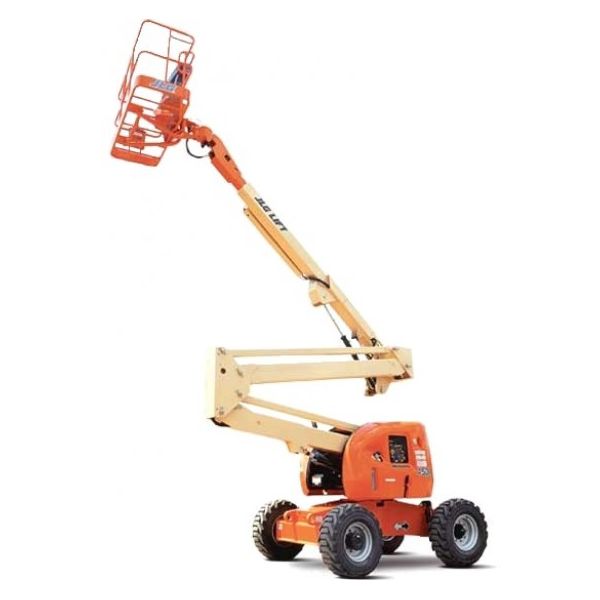

JLG 510AJ 51' Diesel Articulating Boom Lift

Name: JLG 510AJ Diesel Artic Boom | Sunbelt Rentals
SKU: 50000127

Product Code: 50000127

You're viewing a specific make and model.

We'll aim to supply this model, but if it isn't available, we'll provide a different one with similar specs, built to do the same job.

Hire dates:

Start date

End date

Selected hire period:

2 days

Product Description

The JLG 510AJ is a robust articulated boom lift, designed for efficient access to elevated workspaces. With impressive reach and manoeuvrability, it is ideal for construction and maintenance tasks. Its compact dimensions ensure versatility in tight spaces, making it a reliable choice for any project.

Item ID: 50000127

Reference: 079094

Length (m)

7.68

Width (m)

2.34

Height (m)

2.29

Weight (kg)

7650

Consumption - Fuel (l/hr)

Light Usage 25% - 49% - 3.78L/ph / Average Usage 50% - 74% - 7.24 L/ph / Heavy Usage 75% - 100% - 11.17 L/ph

Average Usage Emissions Per Operating Hour (ERA)

10.6

Average Consumption Per Operating Hour (ERA)

3.4

Average Engine Operating Hours Over A Rental Day (ERA)

2.7

Average Usage Emissions Per Operating Hour (ERA)

10.6

Average Consumption Per Operating Hour (ERA)

3.4

Average Engine Operating Hours Over A Rental Day (ERA)

2.7

Area - Platform (m²)

1.39

Ground Clearance (m)

0.29

Height - Elevated Platform (m)

15.81

Height - Guardrail (m)

1.1

Height - Lowered Platform (m)

2.29

Height - Stowed (m)

2.29

Height - Up & Over (m)

7.67

Height - Vertical Platform (max) (m)

15.81

Height - Working (m)

Length - Jib (Overall) (m)

1.24

Length - Platform (m)

1.83

Length - Stowed (m)

7.68

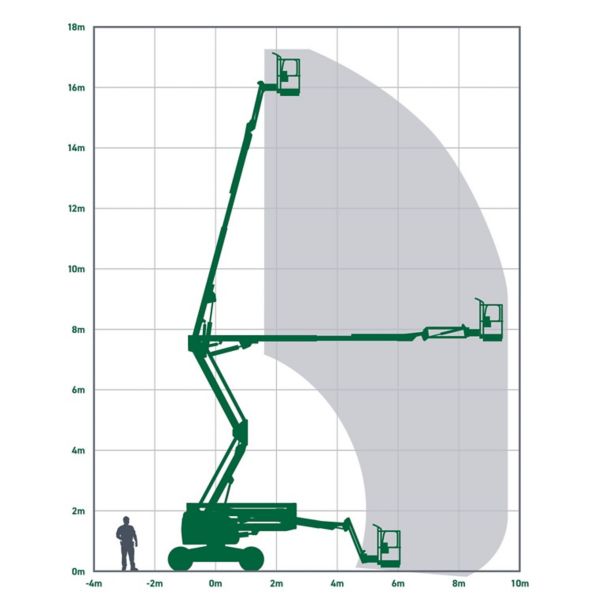

Outreach - Horizontal (m)

9.48

Outreach (max) (m)

9.48

Outreach - Working (m)

9.48

Turning Radius - Inside (m)

Turning Radius - Outside (m)

Wheelbase (m)

2.34

Width - Platform (m)

0.76

Capacity - Fuel Tank (L)

Capacity - Hydraulic Tank (L)

121

Capacity - Platform (kg)

230

Capacity - Platform Unrestricted (kg)

230

Gradeability (%)

30-45

Load - Safe Working (kg)

230

No. of Persons (Max)

Oscillation - Axle (m)

0.2

Pressure - Ground Bearing (max) (kg/cm2)

5.7

Pressure - Hydraulic (bar)

310

Range - Articulated Jib (°)

145

Rotation - Hydraulic Platform (°)

180

Rotation - Turntable (°)

360

Rotation - Jib (°)

135

Speed - 4WD (mph)

4.5

Speed - Drive (Elevated) (mph)

0.5-0.7

Speed - Drive (Lowered) (mph)

4.5

Speed - Wind (max) (mph)

Swing Non Continuous (°)

360

Tyre Type

Foam Filled

Building Information Modelling (BIM)

Digital Download

View Model
