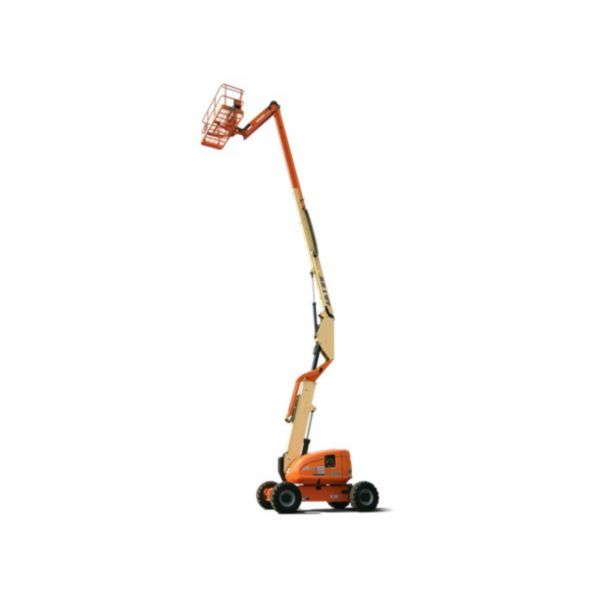

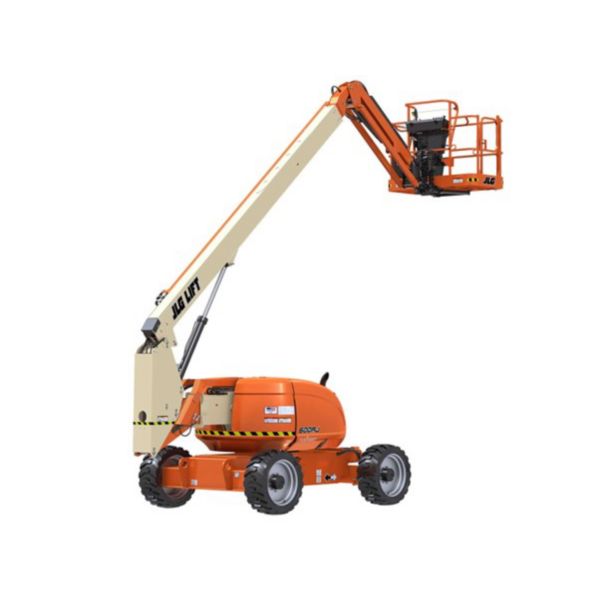

JLG 600AJ 60' Diesel Articulating Boom Lift Earth Bonded Stage V
The JLG 600AJ 60' Diesel Articulating Boom Lift offers exceptional reach and versatility for construction projects. With a maximum working height of 20.5 metres and a horizontal outreach of 12.4 metres, this machine is ideal for accessing hard-to-reach areas. Its robust design ensures stability and reliability, while the earth bonded feature enhances safety on site. Perfect for various applications, the JLG 600AJ is your go-to solution for elevating tasks efficiently.
Item ID: 50000132
Reference: 079115
Basic Dimensions
Length (m)8.82
Width (m)2.49
Height (m)2.57
Weight (kg)10660
Environmental & Sustainability
Consumption - Fuel (l/hr)Light Usage 25% - 49% - 4.58 T4i, 5.49 T4F / Average Usage 50% - 74% - 9.07 T4i, 12.08 T4 F / Heavy Usage 75% - 100% - 10.40 T4i, 16.01 T4F
Average Usage Emissions Per Operating Hour (ERA)17
Average Consumption Per Operating Hour (ERA)5.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Engine Stage/TierStageV
Average Usage Emissions Per Operating Hour (ERA)17
Average Consumption Per Operating Hour (ERA)5.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Descent & Travel AlarmYes
Platform Load Sense SystemYes
Power Source
Power Source / Fuel TypeDiesel
EngineDeutz D2011L04 36.4 KW (49 Hp) / Deutz TD 2.9L Tier 4 Final 67 hp / GM Vortec 3000 MPR 61 kW (82 Hp)
Engine - Stage 3ANo
Engine - Stage 3B Tier 4Yes
Engine - Stage 5No
Voltage (V)12
Engine MakeDeutz
Engine ModelTD29L4
Safety Information
Flashing BeaconYes
Harness RingsYes
Technical Dimensions
Area - Platform (m²)2.22
Ground Clearance (m)0.3
Height - Elevated Platform (m)18.46
Height - Guardrail (m)1.1
Height - Lowered Platform (m)2.45
Height - Stowed (m)2.57
Height - Up & Over (m)8.09
Height - Working (m)20.46
Length - Jib (Overall) (m)1.83
Length - Platform (m)2.44
Length - Stowed (m)8.82
Outreach - Horizontal (m)12.1
Outreach (max) (m)12.12
Outreach - Working (m)12.75
Tail Swing (m)0
Turning Radius - Inside (m)1.68-3.48
Turning Radius - Outside (m)3.56-5.36
Wheelbase (m)2.48
Width - Platform (m)0.91
Technical Specifications
Capacity - Fuel Tank (L)114
Capacity - Hydraulic Tank (L)151
Capacity - Platform (kg)450
Capacity - Platform Unrestricted (kg)230
Gradeability (%)30-45
Load - Safe Working (kg)230
Load - Wheel (max) (kg)11500
No. of Persons (Max)3
Oscillation - Axle (m)0.2
Pressure - Ground Bearing (max) (kg/cm2)5.3
Pressure - Hydraulic (bar)280
Range - Articulated Jib (°)130
Rotation - Horizontal Jib (°)0
Rotation - Hydraulic Platform (°)180
Rotation - Turntable (°)360
Rotation - Jib (°)130
Speed - 2WD (mph)4.2
Speed - 4WD (mph)4.2
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)4.25
Speed - Wind (max) (mph)28
Swing Non Continuous (°)360
Tyre TypeFoam Filled
