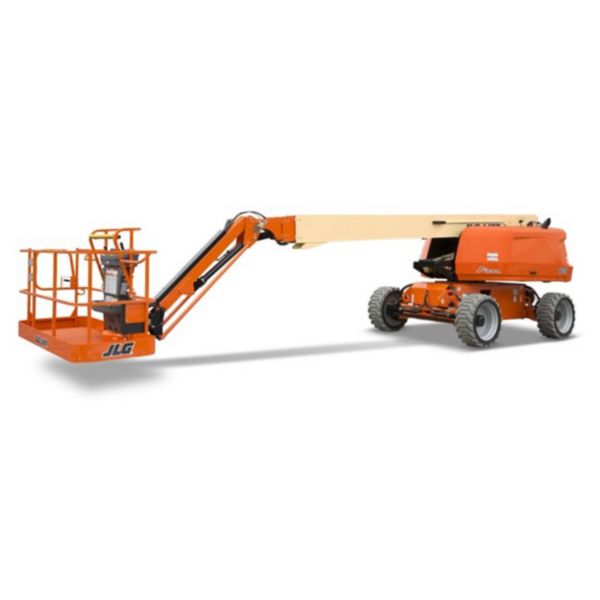

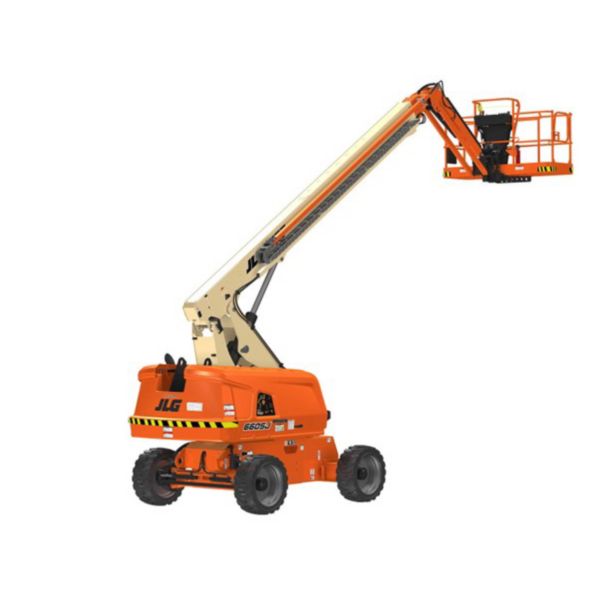

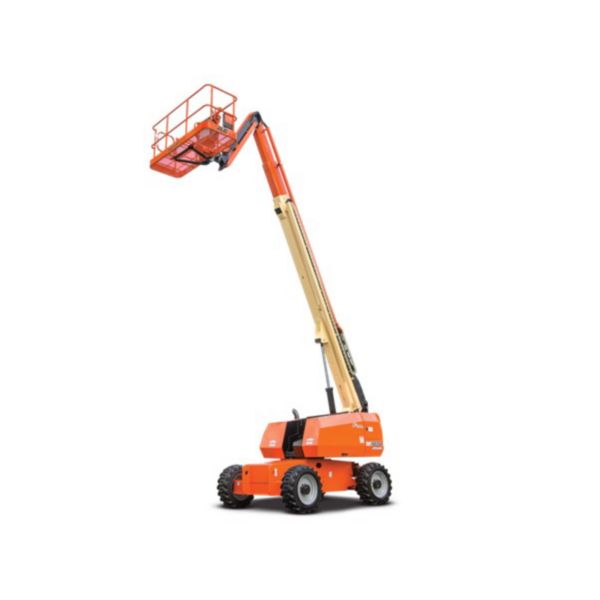

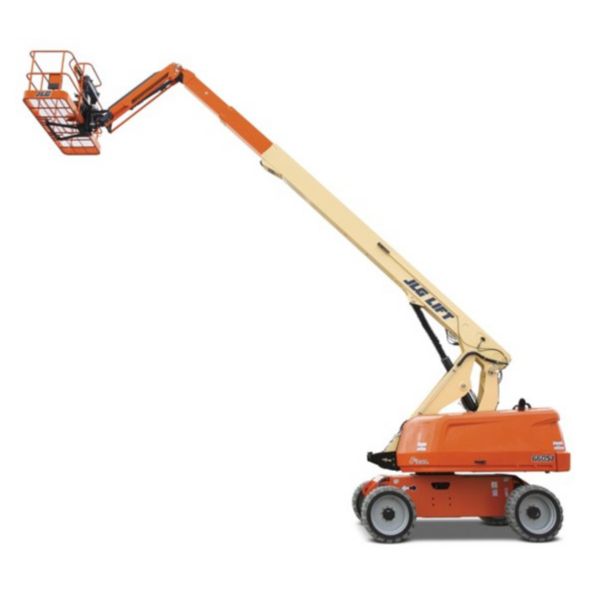

JLG 660SJ 60' Diesel Telescopic Boom Lift Earth Bonded
The JLG 660SJ EBOND is a robust and versatile boom lift, ideal for reaching high elevations safely. With its impressive reach and stability, it is perfect for construction projects requiring aerial access. Its compact design allows for easy manoeuvrability in tight spaces.
Item ID: 50000162
Reference: 079135
Basic Dimensions
Length (m)10.79
Width (m)2.48
Weight (kg)12528
Environmental & Sustainability
Consumption - Fuel (l/hr)Light Usage 25% - 49% - 4.58 / Average Usage 50% - 74% - 9.07 / Heavy Usage 75% - 100% - 10.4
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.7
Convenience Features
All Motion AlarmYes
Articulating JibYes
4WDYes
Tow Bar AssemblyYes
Power Source
Power Source / Fuel TypeDiesel
EngineDeutz D2011L04 36.4kw (or Ford M5G425-DF)
Engine MakeDeutz
Engine ModelD2011L04
Safety Information
Flashing BeaconYes
Harness RingsYes
Technical Dimensions
Ground Clearance (m)0.29
Height - Guardrail (m)1.1
Height - Lowered Platform (m)2.5
Height - Stowed (m)2.5
Height - Vertical Platform (max) (m)20.02
Height - Working (m)22.02
Length - Platform (m)1.83
Length - Stowed (m)10.79
Outreach - Horizontal (m)17.4
Outreach - Working (m)57.1
Tail Swing (m)1.22
Turning Radius - Inside (m)1.61-2.92
Turning Radius - Outside (m)3.87-5.96
Wheelbase (m)2.51
Width - Platform (m)0.91
Length - Articulated Jib (m)1.83
Reach (max) (m)17.4
Width - Working (m)2.49
Technical Specifications
Capacity - Fuel Tank (L)117
Capacity - Hydraulic Tank (L)129
Capacity - Platform (kg)340
Capacity - Platform Unrestricted (kg)250
Gradeability (%)45
Load - Safe Working (kg)250
Load - Wheel (max) (kg)6677
No. of Lifting Eyes4
No. of Persons (Max)3
Oscillation - Axle (m)0.2
Pressure - Ground Bearing (max) (kg/cm2)6
Range - Articulated Jib (°)130
Rotation - Horizontal Jib (°)0
Speed - Drive (Lowered) (mph)3.9
Speed - Wind (max) (mph)28
Swing Non Continuous (°)360
Tyre TypeFoam Filled Lug Tread
Capacity - Extension Deck (kg)45
Drive TypeHydraulic Drive
Output - Power12V
Rotation - Platform (°)180
