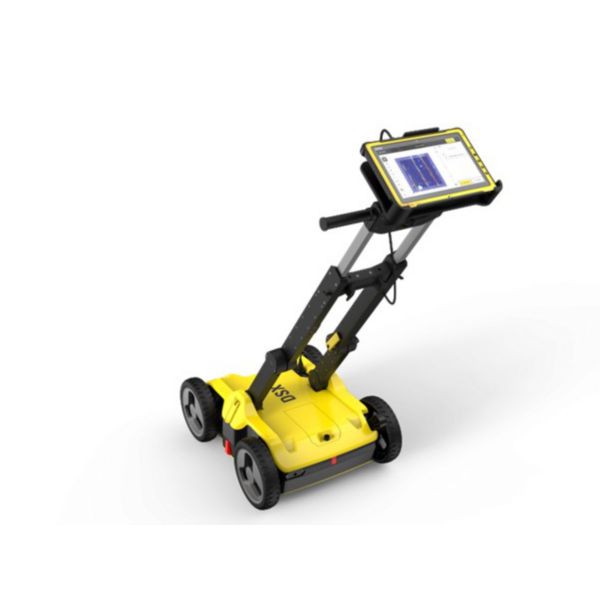

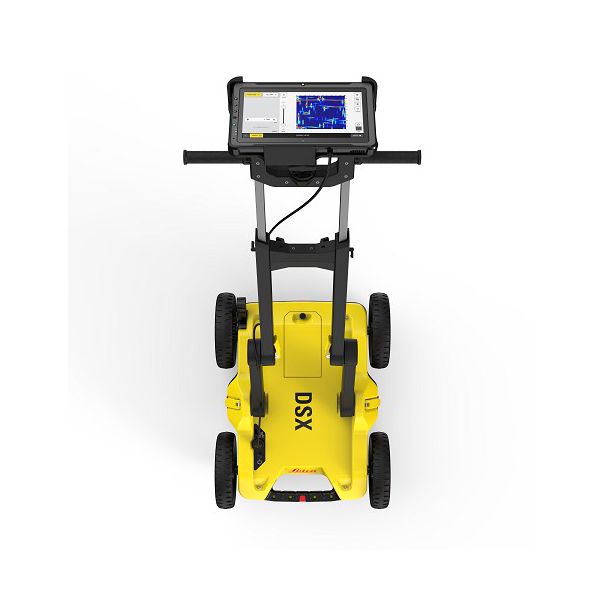

Leica DSX Utility Detection Radar

• Complete detection and underground mapping solution: utility detection radar + GNSS/GIS smart antenna + field tablet
• Dual-frequency antenna to detect deep and shallow targets simultaneously
• Easily collect and understand data with the DS2000’s simple and intuitive software
• Simple data storage and export to continue working on the post-processing at the office
• Effortlessly manoeuvre around the most challenging sites with the DS2000’s advanced ergonomics
• Expert knowledge of Leica Geosystems with more than 270 service centres worldwide
• PROTECT by Leica Geosystems - the strongest warranty in the market

• Antenna footprint: 40 x 50 cm
• Antenna central frequencies: 250 MHz and 700 MHz
• Antenna orientation: Perpendicular, broadside

The Leica DS2000 Utility Detection Radar easily detects and positions deep and shallow targets simultaneously, collecting more information, faster, in

any environment. Data gathering and export of any underground utility, from fibre optics to storm sewers, is made possible with the DS2000.

• High Productivity: surveys only need to be performed in one direction
• No advanced training needed: the system automatically detects and
• Reduced user fatigue: thanks to electronic ride height adjustment and a
• Facilitates large surveys: the system can be towed manually or with a

• Antenna Footprint: 120 x 57 cm
• Antenna Central Frequency: 600 MHz
• Antenna Polarization: HH and VV

• OneVision Acquisition Software
• IQMaps Processing Software

• Set Up Job / Quick Scan
• Data acquisition
• Processing on Site
• Visualise data
• Export data
• Reliable Detection Result
• Instant 2D/3D Utility Map
• Ease of Use
• Integrated Solution

• Article 3.1a: EN 61010-1:2010, EN 62479:2010
• Article 3.1b: EN 301 489-1 V2.2.0:2017, EN 301 489-33 V2.2.1:2019
• Article 3.2: EN 302 066 V2.1.1:2017, EN 302 066 V2.2.0:2019

WiFi, Bluetooth v4.2, 4G LTE

(Model 880920)

RJ45 – connection to DSX

• NON-STOP PERFORMANCE: Low battery power consumption (15-19W), Hot swap technology for power supply
• GREATER EFFICIENCY: Single operator assembly/disassembly, Superior manoeuvrability, Compact and light-weight design
• MULTI-ENVIRONMENT CONFIGURATION: Asphalt; pivoting wheels, Rugged; terrain wheels
• EST TECHNOLOGY: Extended depth range and high resolution, Unparalleled control of the GPR signal, Patented technology

• Antenna Central Frequency: 600 MHz
• Antenna Polarization: 11HH and 19VV

• uMap Acquisition Software
• IQMaps Processing Software. Intel®Core™ i5 Processor

• Ergonomic, Compact and Field rugged design
• Minimal setup time
• Simple, one-button, operation
• Mulitple battery management, no swapping (up to 4 batteries)
• Real-time zoom (no ‘depth window’ setting necessary)
• Multiple Language support
• Detects metallic and non-metallic utilities
• On-site marking of utilities and objects
• Back up cursor for quick and accurate utility marking
• Rough Terrain Cart as option

• MALÅ Easy Locator Pro Controller: Any external 5 hours
• MALÅ Easy Locator Pro HDR: Interchangeable 8-14 hours (depending on number of external batteries)

This GPR-device is certified according to FCC, subpart 15, IC RSS-220 and ETSI EN 302 066-1&2.

According to the regulations stated in ETSI EN 302 066-1 (European

Telecommunication Standards Institute)
