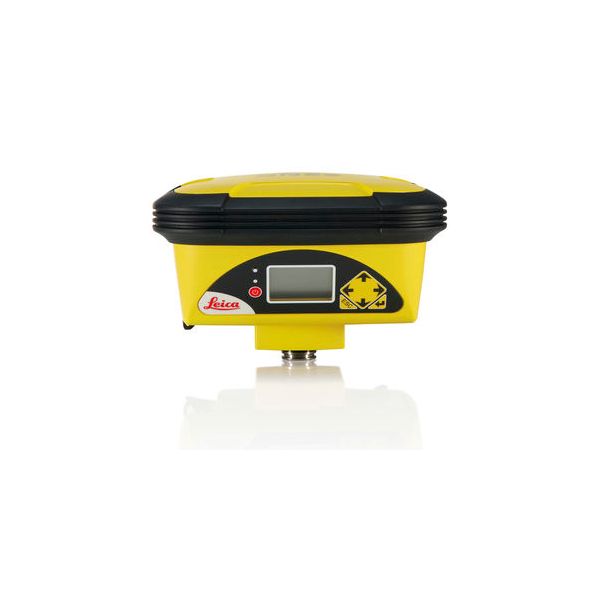

Leica iCON iCG60 GPS Smart Antenna

Superior GNSS Technology for maximum accuracy and reliability.

Features Leica SmartTrack+ and SmartCheck+ and Leica xRTK.

Future-proof satellite tracking. Works with all existing and future satellite systems.

SmartLink – bridges RTK communication gaps up to 10 minutes

Multi-purpose GPS solution. Can be used as construction site GNSS Base, Rover or NetRover, in supervisor vehicle on site and entry level machine control mounted inside a machine to increase machine productivity

Unique communication flexibility, featuring integrated radio, modem and Bluetooth®.

System integration made easy through use of platform independent SDK (Software Development Kit) bringing swift configuration to all

Integrated NTRIP Server and Caster for Internet based Reference Station.

No controller required for base station set-up means you need less hardware.

Unique flexible software licencing and feature upgrade concept.

You can order packages or individual licences when you need them, investing when you need to.

• 5:20 h receiving RTK data with standard radio
• 4:40 h transmitting RTK data with standard radio
• 5:00 h RTK via built-in HSPA connection

• Internal: 1x Rechargeable Li-Ion battery (2.6Ah, 4.4Ah or 6.0Ah / 7.4 V)
• External: Rechargeable NiMh battery (9Ah / 12 V)

• RTK – Single Baseline (< 30km): Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
• Post Processing - Static (phase) with long observations: Hz 3 mm + 0.5 ppm / V 3.5 mm + 0.5 ppm
• Post Processing - Static and rapid static (phase): Hz 3 mm + 1 ppm / V 5 mm + 1 ppm

1x serial RS232 Lemo, PWR in, 12V PWR out

1x USB Host

1x UART serial and USB (for removable internal RTK devices)

1x TNC for external GNSS Antenna

1x Bluetooth® port, Bluetooth® v2.00+ EDR, class 2

• Computing with software.
• Carrying out measurement tasks using various GNSS measuring techniques.
• Recording GNSS and point related data.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.

• Advanced measurement engine
• Jamming resistant measurements
• High precision pulse aperture multipath correlator for pseudorange measurements
• Minimum acquisition time

• Radio Modems: SATEL TR4+: 403 – 470 MHz; up to 1.0 W output power; Pac-crest 4FSK; GMSK and FST; Trimble T and P; Satel 3AS, 8FSK and 16FSK modulation
• SATEL M3-TR9: 902 – 928 MHz (license free in North America); up to 1.0 W output power // Antenna Type QN
• 4G LTE / 3G DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA):
• Built-in cellular modem as default
• User exchangeable SIM card
• 5-Band LTE: Band 1, 3, 7, 8, 20
• 6-Band DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA): Band 1, 2, 3, 4, 5, 8
• Up to 100 mbps downlink speed // Built-in antenna

• Provides full receiver status on main screen (position, satellite, radio, modem, battery, Bluetooth®, telematics, memory)
• Several submenues for additional details
• Various configurations in submenues, e.g. radio channel
• Start Base Station with "Here" or type in coordinate
• Start and configure raw data logging

• GPS: carrier phase full wave length, Code (C/A, P, C Code)
• GLONASS: carrier phase full wave length, Code (C/A, P narrow Code)
• Galileo: carrier phase full wave length, Code
• BeiDou: carrier phase full wave length, Code

• Leica SmartCheck+ Technology
• Reliability of OTF initialisation: 99.99%
• Time of Initialisation: Typically 4 sec

• Fully integrated GNSS antenna
• External GNSS antenna connector (Type TNC)

• CGA100: GPS L1, L2, L2C, L5
• GLONASS: L1, L2, L3
• Galileo: E1, E5a, E5b, E6, Alt-BOC
• BeiDou: B1, B2, B3

- Transmission: Leica, Leica 4G, CMR, RTCM 3.1, RTCM 3.2, MSM 3 and 5

- Reception: Leica, Leica 4G, Leica Lite, CMR, CMR+, RTCM v2.3, RTCM 3.1, RTCM 3.2, MSMx 3 and 5

- Web Based: NTRIP

• GPS: L1, L2, L2C, L5
• GLONASS: L1, L2
• Galileo (Test): GIOVE-A, GIOVE-B
• Galileo: E1, E5a, E5b, Alt-BOC
• BeiDou B1, B2

• Lightweight
• Portable
• Self-Learning
• Compact Housing
• Can withstand extreme temperatures and environments
• Reliable
• Quick Installation

• RTK – Single Baseline: Hz 8 mm + 1 ppm / V 15 mm + 1 ppm
• Post Processing - Static (phase) with long observations: Hz 3 mm + 0.1 ppm / V 3.5 mm + 0.4 ppm
• Post Processing - Static and rapid static (phase): Hz 3 mm + 0.5 ppm / V 5 mm + 0.5 ppm

• Computing with software.
• Recording measurements.
• Carrying out measurement tasks using various GNSS measuring techniques.
• Recording GNSS and point related data.
• Remote control of product.
• Data communication with external appliances.
• Measuring raw data and computing coordinates using carrier phase and code signal from GNSS satellites.

Fully integrated, internal antenna

Fully integrated, receive and transmit, external antenna

403 - 473 MHz, 1 W output power, up to 28800 bps over air

• Real-time kinematic:Network RTK Hz 8 mm + 0.5 ppm / V 15 mm + 0.5 ppm
• Reliability of OTF initialisation: 99.99%
• Time of Initialisation: Typically 4 sec

Leica, Leica 4G, CMR, CMR+, RTCM 2.2, 2.3, 3.0, 3.1, 3.2 MSM

NMEA 0183 V 4.00 and v 4.10 and Leica proprietary

VRS, FKP, iMAX, MAC (RTCM SC 104)

Removable microSD card

Leica GNSS raw data and RINEX data at up to 20 Hz

• GPS | GLONASS: L1, L2, L2C, L5 | L1, L2, L2C, L3
• Galileo | BeiDou: E1, E5a, E5b, AltBOC, E6 | B1I, B1C, B2I, B2a, B3I
• QZSS | NavIC: L1, L2C, L5, L62 | L5
• SBAS | TerraStar: WAAS, EGNOS, MSAS, GAGAN | L-Band, IP

7 status LEDs

Full status information and configuration options

• Ultra-rugged housing built to withstand harsh construction site conditions
• GNSS receiver, antenna, and battery all in one unit
• Connected site enabled with integrated wi-fi, Bluetooth, and optional wideband radio
• Quick release connector makes it easy to move the unit between case, range pole, ATV, and truck

• Pole drop: Designed to survive a 2 m (6.6 ft) pole drop onto concrete
• Shock – Non-operating: To 115 G, 6msec
• Shock – Operating: To 60 g, 10msec, half-sine. Vibration: Mil-Std-810G, FIG 514.6D-I, Mil-Std-202G, FIG 214-I, Condition D

CODE DIFFERENTIAL GPS POSITIONING

Horizontal accuracy: 0.25 m + 1 ppm RMS (0.8 ft + 1 ppm RMS)

Vertical accuracy: 0.50 m + 1 ppm RMS (1.6 ft + 1 ppm RMS)

TRIMBLE XFILL

Horizontal accuracy: RTK4 + 10 mm/minute RMS

Vertical accuracy: RTK + 20 mm/minute RMS

TRIMBLE CENTERPOINT RTX

Horizontal accuracy: 4 cm (0.13 ft) RMS

Vertical accuracy: 9 cm (0.30 ft) RMS

- Layout of structure foundations, caissons, and piles

- Earthworks, fine grading and finishing stakeout operations

- Initial site measurements to verify design levels and regular subsequent measurements to determine progress volumes

- Vehicular-mounted site supervisor applications

- Measurements and grade/thickness checks on laid materials

• Wi-fi: Client or Access Point. Receive or transmit corrections
• Bluetooth: Fully-integrated, fully-sealed 2.4 GHz Bluetooth module
• Integrated Radios (Optional): Fully-integrated, fully-sealed internal 410-470 MHz Tx/Rx; Internal 900 MHz Tx/Rx
• Channel Spacing (450 MHz): 12.5 kHz or 25 kHz spacing available
• Sensitivity (450 MHz): -114 dBm (12 dB SINAD)
• 450 MHz Output Power: 0.5 W, upgradeable to 2 W
• 900 MHz Output Power: 1.0 W

• 440-channel L1C/A, L1/L2/L2C GPS and QZSS. Upgradable to L5 and
• Optional Galileo and BeiDou
• Trimble xFill for short gaps in correction service
• CenterPoint™ RTX™ Correction Service
• OmniSTAR™
• Trimble EVEREST™ multipath signal rejection
• 4-channel SBAS (WAAS/EGNOS/MSAS/QZSS)

Horizontal accuracy: 8 mm + 1 ppm RMS (0.026 ft + 1 ppm RMS)

Vertical accuracy: 15 mm + 1 ppm RMS (0.05 ft + 1 ppm RMS)

Data logging involves the collection of GNSS measurement data over a period of time at a static point or points, and subsequent postprocessing of the information to accurately compute baseline information. Data logging using receivers requires access to suitable GNSS postprocessing software

such as the Trimble Business Center software.

• 440-channel L1C/A, L1/L2/L2C GPS and QZSS. Upgradable to L5 and
• Optional Galileo and BeiDou
• Trimble xFill for short gaps in correction service
• CenterPoint™ RTX™ Correction Service
• OmniSTAR™
• Trimble EVEREST™ multipath signal rejection
• 4-channel SBAS (WAAS/EGNOS/MSAS/QZSS)
