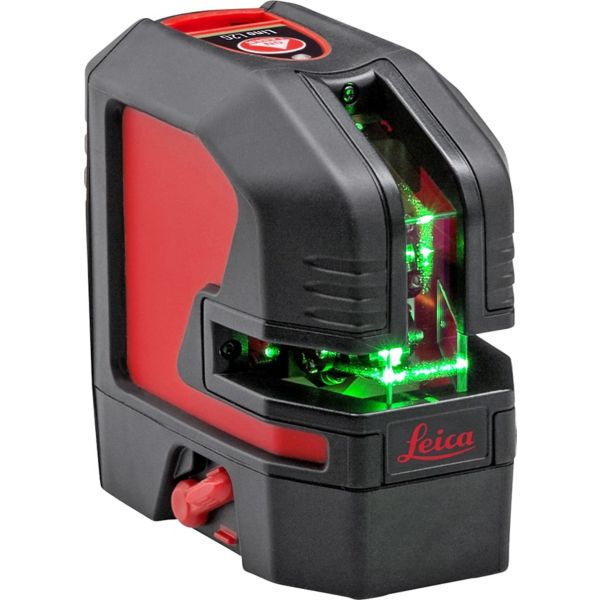

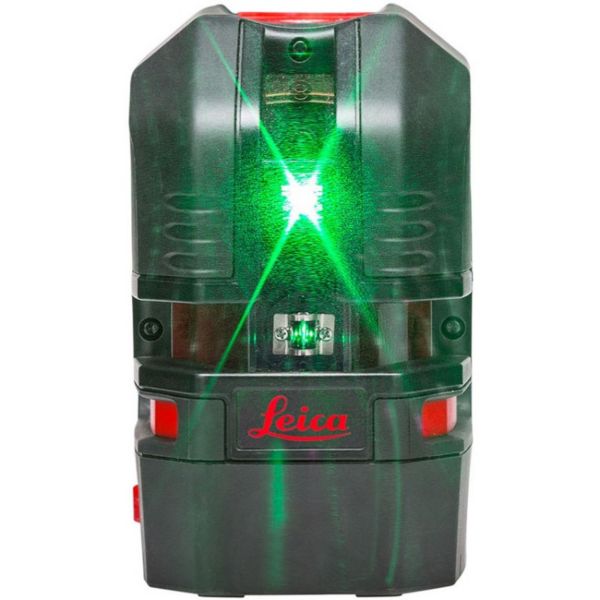

Leica Lino L2P5G Crossline Point Laser

• Crossline laser with Horizontal and Vertical line
• High visibility due to green Ultra-power laser diodes
• Large working range due to very wide fan angles
• Self-levelling over wide range
• Operating range of up to 35 m
• With Li-Ion power up to 28 h operation time
• Uninterrupted working with Triple-Power concept
• Smart magnetic adapters for easy positioning
• Adapter with 130 mm elevation for height adjustment
• Can be used with RGR 200 Laser receiver for extended range

• Li-Ion: 15 h (2 beam) – 28h (1 beam) continuous
• Alkaline: 4 h (2 beam) – 7h (1 beam) continuous

• Maintenance: To warranty the best precision and visibility please clean the optics of your device regularly. Therefore blow off the dust from the glasses without touching the optics with your fingers. If necessary use a damp soft cloth and a little bit of pure alcohol.
• Calibration: Leica Geosystems recommend to check the device within regular intervals to prove the function and reliability in accordance with standards and requirements. At least one time per year.

±0.2 mm/m or ±1.0 mm @ 5m or ±2.0 mm @ 10m

±0.002 in/ft or ±0.04 in @ 16ft or ±0.08 in @ 33ft

• Multi-purpose Laser with Crossline, plumb-points and points for 90° stake-out
• High visibility due to red Ultra-power laser diodes
• Large working range due to very wide fan angles
• Self-levelling over wide range
• Operating range of up to 25 m
• With Li-Ion power up to 44 h operation time
• Uninterrupted working with Triple-Power concept
• Smart magnetic adapters for easy positioning
• Can be used with RGR 200 Laser receiver for extended range

• Li-Ion: 26 h (2 beam + 4 points) – 44 h (1 beam + 2 points) continuous
• Alkaline: 8 h (2 beam + 4 points) – 13 h (1 beam + 2 points) continuous

• Maintenance: To warranty the best precision and visibility please clean the optics of your device regularly. Therefore blow off the dust from the glasses without touching the optics with your fingers. If necessary use a damp soft cloth and a little bit of pure alcohol.
• Calibration: Leica Geosystems recommend to check the device within regular intervals to prove the function and reliability in accordance with standards and requirements. At least one time per year.

± 0.2 mm/m or ± 1.0 mm @ 5 m or ± 2.0 mm @ 10 m

± 0.002 in/ft or ± 0.04 in @ 16 ft or ± 0.08 in @ 33 ft

• Multi-purpose laser with crossline, plumb-points and points for 90° stake-out
• High visibility due to green Ultra-Power laser diodes
• Large working range due to very wide fan angles
• Self-levelling over wide range
• Operating range of up to 35 m
• With Li-Ion power up to 28 h operation time
• Uninterrupted working with Triple-Power concept
• Smart magnetic adapters for easy positioning
• Can be used with RGR 200 laser receiver for extended range

• Li-Ion: 15 h (2 beam + 4 points) – 28 h (1 beam + 2 points) continuous
• Alkaline: 4 h (2 beam + 4 points) – 7 h (1 beam + 2 points) continuous

• Maintenance: To warranty the best precision and visibility please clean the optics of your device regularly. Therefore blow off the dust from the glasses without touching the optics with your fingers. If necessary use a damp soft cloth and a little bit of pure alcohol.
• Calibration: Leica Geosystems recommend to check the device within regular intervals to prove the function and reliability in accordance with standards and requirements. At least one time per year.

± 0.2 mm/m or ± 1.0 mm @ 5 m or ± 2.0 mm @ 10 m

± 0.002 in/ft or ± 0.04 in @ 16 ft or ± 0.08 in @ 33 ft

• Horizontal and two vertical 360° green laser lines
• Best visibility due to green Ultra-power laser diodes
• Self-levelling over wide range
• Fixed plumb point due to integrated base
• Adjustable strength of laser lines
• Operating range of up to 35 metres
• Li-Ion power for up to 11 h
• Uninterrupted working with Triple-Power concept
• Smart magnetic adapters versatile usage

• Li-Ion: up to 11 h (3 beam, 50 % power)
• Alkaline: up to 8 h (3 beam, 50 % power)

• Maintenance: Never immerse the device in water. Wipe off dirt with a damp soft cloth. Never use aggressive cleaning agents or solvents. Treat the instrument with the same care that you would apply to binoculars or a camera. Dropping or violent shaking of the instrument may damage it. Check the instrument for any damage before using it. Check the levelling accuracy of the instrument regularly.
• Calibration: Leica Geosystems recommend to check the device within regular intervals to prove the function and reliability in accordance with standards and requirements. At least one time per year.
