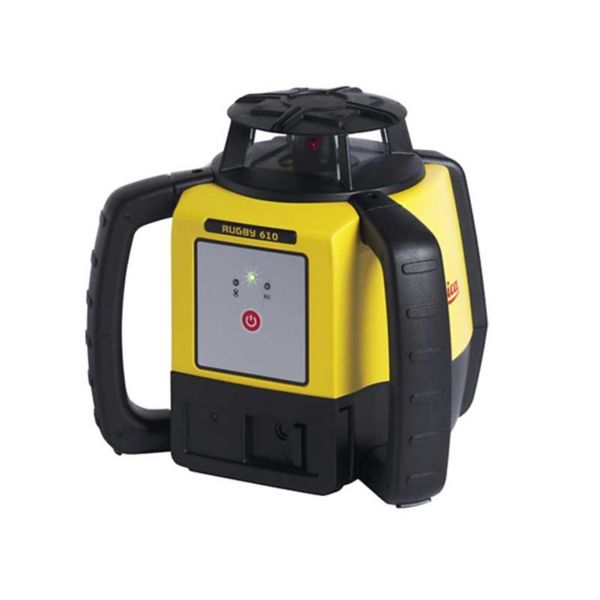

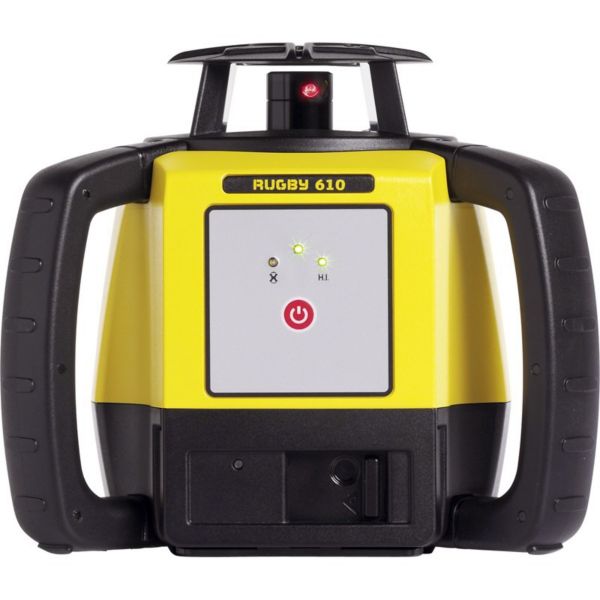

Leica Rugby 610 Rotating Laser Level

• 40 hours - A600 Lithium-Ion (Li-Ion Pack)
• 60 hours - Alkaline (four D-cells)

• The product casts a horizontal laser plane or a laser beam for the purpose of alignment.
• The laser beam can be detected by means of a laser detector.
• Remote control of product.
• Data communication with external appliances

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these can attack the polymer components.

• Simple and reliable, one button laser where no mistakes are possible
• Single axis slopes up to 45 ° with manual slope adapter
• High application performance with Leica Rod Eye 140 – with the built-in 12 cm detection window, you can easily detect the beam over the entire distance

• 50 hours - Lithium-Ion (Li-Ion Pack)
• 40 hours - Alkaline (four D-cells)

• Land levelling
• Dial-in grade
• Slopes for ramps and driveways
• Vertical alignment of formwork
• Set-out walls
• Concrete pouring
• Batter board
• Formwork levelling
• Façade alignment
• Level decks and slabs

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these can attack the polymer components.

• 40 hours - A600 Lithium-Ion (Li-Ion Pack)
• 60 hours - Alkaline (four D-cells)

• The product casts a horizontal laser plane or a laser beam for the purpose of alignment.
• The laser beam can be detected by means of a laser detector.
• Remote control of product.
• Data communication with external appliances)

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these can attack the polymer components.

• Complete levelling crew in a case - carrying case securely holds all components, tripod and grade rod
• Easy to transport, easy to carry, easy to store
• Energy-efficient design offers long battery life
• Highly durable construction enables the LL300N to survive a drop up to 3 feet (1 m) onto concrete
• Remote control slope option increases flexibility of applications
• Automatic self-levelling
• Simple one-button operation for quick start up
• Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
• Extremely durable and portable

• General elevation control
• Checking and setting elevations for small to medium job sites
• Leveling forms and footers
• Estimating cut and fills
• Excavations
• Basic slopes for driveways and ramps

Dirt and water on the glass parts of laser or prism will influence beam quality and operating range considerably. Clean with cotton swabs. Remove dirt on the housing with a lint-free, warm, wet and smooth cloth. Do not use harsh cleansers or solvents. Allow the unit to air dry after cleaning it. Do not expose the unit to extreme temperatures or temperature changes (do not leave inside the car). The unit is very robust and can resist damage if dropped even from tripod height. Before continuing your work, always check the leveling accuracy. See Accuracy Check section.

The laser is water proof and can be used indoors and outdoors.

• Approx. 100 hours (Using with alkaline manganese drybattery / at +20°C (+68°F))
• Approx. 60 hours (Using with Ni-MH battery pack BT-74Q/ at +20°C (+68°F))

• Maintenance:
• Wipe off moisture if instrument gets wet during survey work
• Always clean instrument before returning to case
• Clean dirty display with soft, dry cloth. Other parts of the equipment may require a slightly moistened soft cloth with mild detergent solution. Do not use any alkaline cleaning solutions, alcohol, or organic solvents.
• Store in a dry room with consistent temperature.
• Tripod: Check for loose screws or fit.
• When instrument is not being used for a long time, check it at least once every 3 months.
• Gently remove instrument from storage case.
• Calibration: Periodically.

• + 10 Arc second (1.5mm@30m) horizontal accuracy
• Long range operation 800m
• Sloping set
• Safety lock and tough IP66 construction rating
• High quality TOPCON laser
• User friendly design

• Approx. 100 hours (Using with alkaline manganese drybattery / at +20°C (+68°F))
• Approx. 60 hours (Using with Ni-MH battery pack BT-79Q/ at +20°C (+68°F))

• Maintenance:
• Wipe off moisture if instrument gets wet during survey work
• Always clean instrument before returning to case
• Clean dirty display with soft, dry cloth. Other parts of the equipment may require a slightly moistened soft cloth with mild detergent solution. Do not use any alkaline cleaning solutions, alcohol, or organic solvents.
• Store in a dry room with consistent temperature.
• Tripod: Check for loose screws or fit.
• When instrument is not being used for a long time, check it at least once every 3 months.
• Gently remove instrument from storage case.
• Calibration: Periodically.
