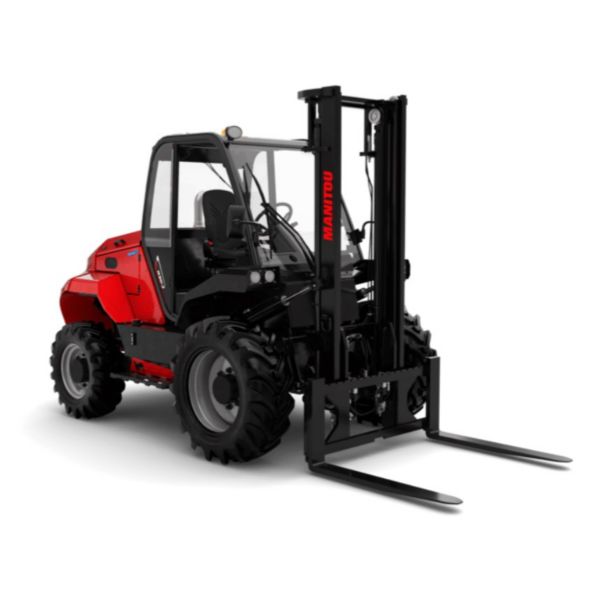

Manitou M30-4 3t Diesel Rough Terrain Forklift Stage V
The Manitou M30-4 Stage V is a robust terrain forklift designed for efficient handling on construction sites. Its compact dimensions enhance manoeuvrability, while the powerful engine ensures optimal performance. Ideal for lifting and transporting materials, this machine combines reliability with versatility for any project.
Item ID: 50002749
Reference: 026011
Basic Dimensions
Length (mm)4700
Height (mm)2680
Width (mm)1930
Weight (kg)5965
Environmental & Sustainability
CO2 per Litre of Fuel Consumed17.2 kg/h
Consumption - Fuel (l/hr)6.6
Average Usage Emissions Per Operating Hour (ERA)15.2
Average Consumption Per Operating Hour (ERA)4.8
Average Engine Operating Hours Over A Rental Day (ERA)3.2
Convenience Features
Reverse LightsYes
Side-Entry CabYes
Lighting EquipmentYes
SeatYes
Power Source
Power Source / Fuel TypeDiesel
Voltage - System (V)12
Engine MakeDeutz
Engine ModelTD29L4
Engine Stage/TierStageV
Power - Engine (max) (kW)55
Power - I.C. Engine Rating (hp)74
Engine Start SystemElectric key start with preheat system
Safety Information
Operator HornYes
Service BrakeYes
Parking BrakeYes
Noise Level (dB)104
Sound Pressure (dB)73
MirrorsYes
SeatbeltYes
Reverse Warning AlarmYes
Technical Dimensions
Height - Lifting (max) (m)3.7
Size - Tyres405/70-20 149B I323 (Front) / 10.5-18 12PR I317 (Rear)
Height - Overall (Mast Extended) (mm)4619
Height - Mast Retracted (mm)2689
Height - Cab (mm)2458
Height - Cab Overhead Guard (mm)1400
Load Centre (mm)500
Length - Fork (mm)3500
Length - To Face of Fork (mm)1470
Width - Fork (mm)40
Thickness - Fork (mm)40
Fork Spacing (max) (mm)130
Radius - Turning (Range) (m)1.13 (Inside) / 4.03 (Outside)
Width - Required in Aisle (m)6.18
Width - Required in Aisle 90° Turning (m)6.18
Height - Seat/Stand (mm)730
Height - Tow Bar Coupling (mm)1200
Gauge - Wheel (Front/Rear) (m)2.9
Ground Clearance - Range (mm)390
Wheelbase - Range (m)1.99 - 2.4
Technical Specifications
Capacity - Lifting (kg)3000
Handling OperationsDriver Seated
Flow Rate - System Pressure (l/min @ bar)80
Capacity - Fuel Tank (L)85
Torque (Nm @ rpm)34 - 49
No. of Cylinders4
Displacement (L)2.925
Gradeability (%)62
Cooling SystemLiquid‑cooled
Tyres TypePneumatic
Angle - Tilt-Up (°)12
Angle - Tilt-Down (°)6
Speed - Travel (Range) (mph)7.4 - 13
Pressure - Working (bar)185
Speed - Lifting (Range) (m/sec)0.6
Speed - Lowering (Range) (m/sec)0.4
Speed - Traverse (m/sec)3.33
Power - Tractive (kN)60
Weight - On Front Axle (Laden/Unladen) (kg)7490 / 2155
Weight - On Rear Axle (Laden/Unladen) (kg)1475 / 3810
Load - On Forks (Nominal) (t)3
No. of Drive Wheels2x2
Pull - Drawbar (Laden/Unladen) (daN)6000
Service Brake TypeHydraulic power brake
Speed - Rated (Range) (rpm)2300 - 3200
Capacity - Engine Coolant (L)14.5
