Multi Detectors

• Quick to pick up and use
• Visible and audible Safety warning
• Large easy-to-read LCD
• Economical with batteries
• Innovative test lead connection
• Rubber over-moulded case
• Remote test button
• LED Torch
• Red/Green Status LED
• Three Interchangeable probe tips
• Illuminated display and selector ranges
• Instrument and document carry case

Voltage a.c. - 000 V - 500 V 50/60Hz

Voltage d.c. - 000 V - 500 V (Indication of polarity above 10 V)

Double insulated to IEC61010-1, Installation Category III, 300 V phase to

earth, 500 V phase to phase.

In addition Probe designed to meet IEC 61010-031, Double insulated to

Installation Category III, 300 V phase to earth, 500V phase to phase

• Voltage: ±2% ±2 digits
• Insulation: ±2% ±2 digits up to 99 MΩ
• Trip Time: ±1% ±1 ms

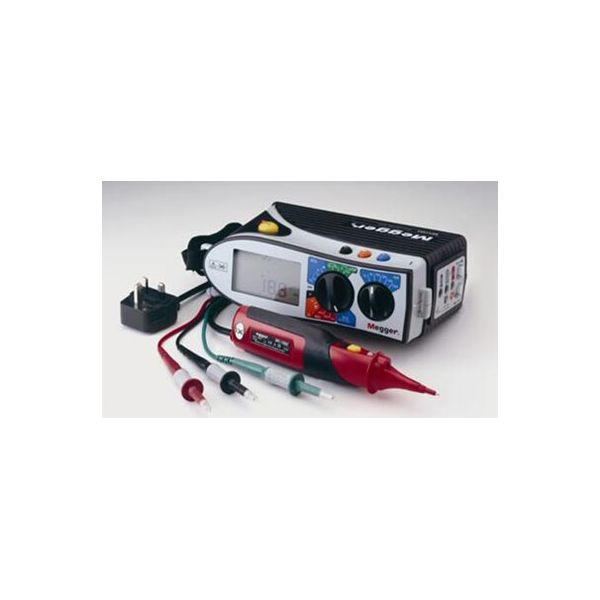

The MFT1500 series of tester is compact and designed to perform all of the

functions required by the electrical contractor to fully test domestic,

commercial and industrial wiring.

• Voltage: 0.10 MΩ to 99.9 MΩ
• Line/Earth (Single Phase): 0.25 Ω to 3.00 kΩ
• Line/Line (Three Phase): 0.25 Ω to 19.99 Ω
• Low Current Loop (No Trip): 0.5 Ω to 2.00 kΩ
• Continuity: 0.10 Ω to 99.9 kΩ
• RCD: 1000 mA, 500 mA, 300 mA, 100 mA, 30 mA, 10 Ma

Ohms 0.01 Ω - 99.9 Ω (±2% ±2 digits)

100 Ω - 99.9 kΩ (±5% ±2 digits)

Instrument:- Replaceable 500 mA (F) HBC 10 kA 500 V, Non-replaceable 7 A (SIBA 70-065-63) x 2, Non-replaceable 1 A

Probe:- Non-replaceable 7 A (SIBA 70-065-63)

• Object detection for detecting objects in walls, floors and ceilings.
• Leak detection for detecting leaks.
• Distance measurement for measuring distances.

Depth indication accuracy: approximately ±5 to ±10 mm

Horizontal (lateral) localization accuracy: ±5 to ±10 mm

• Frequency, radar sensor: 1.8 GHz … 5.7 GHz
• Radar sensor (Power): 0.00001 Mw
• Frequency, inductive sensor: 48 kHz … 52 kHz

• Universal
• Concrete
• Wet concrete
• Floor heating
• Drywall
• Hollow brick
• Signal View

• Battery life (alkaline batteries): 5 hours
• Battery life (with 2500 mAh batteries): 7 hours

• Localization accuracy: ±10 mm (±½ in)
• Accuracy of depth measurement (accurate measurement mode): Depth range 5…60 mm (¼ in ... 2²/₃ in): ±3 mm (±¹/₈ in) Depth range 60…80 mm (2²/₃ in ... 3¹/₈ in): ±5 mm (±¼ in) Depth range 80…100 mm (3¹/₈ ... 4 in): ±7 mm (±⁹/₃₂ in) Depth range 100…120 mm (4 in ... 4³/₄ in): ±11 mm (±⁷/₁₆ in)

• Detection range for locating ferrous metals in concrete (individual rebars): >∅ 8 mm (≧ # 3): 5…120 mm (¼ in ...4¾ in) ∅ 6…8 mm: 5…100 mm (¼ in ... 4 in)
• Detection range for locating non-ferrous metals (copper and aluminium pipes): Diameter Min. 10 mm (½ in), Wall thickness Min. 2 mm (³/₃₂ in): 5…80 mm (¼ in ...3¹/₈ in)
