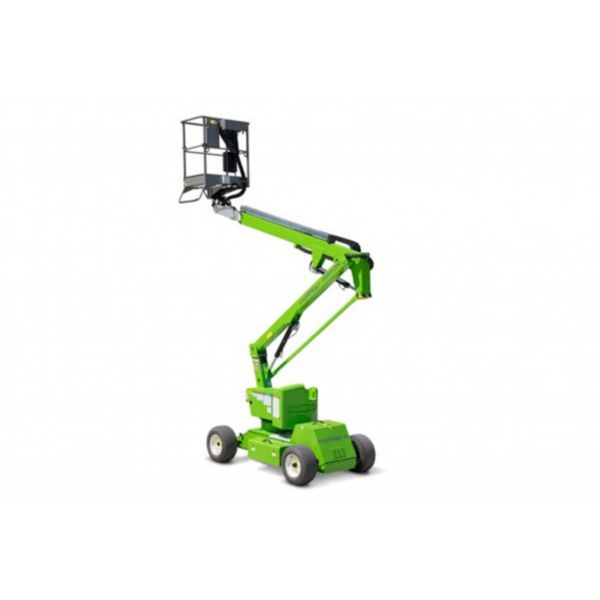

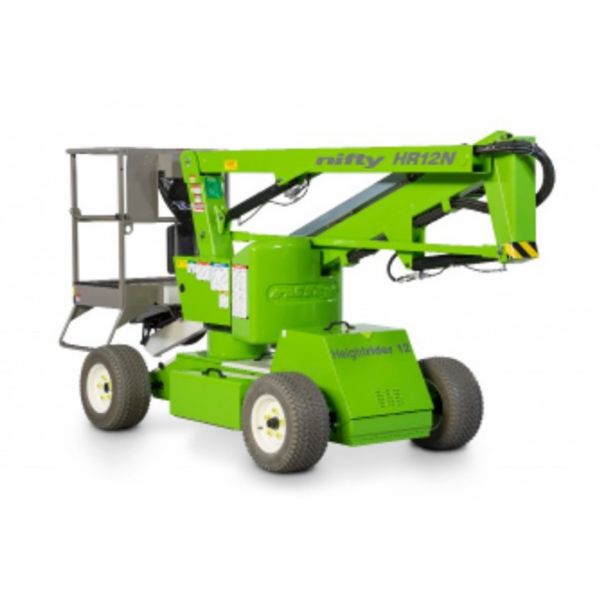

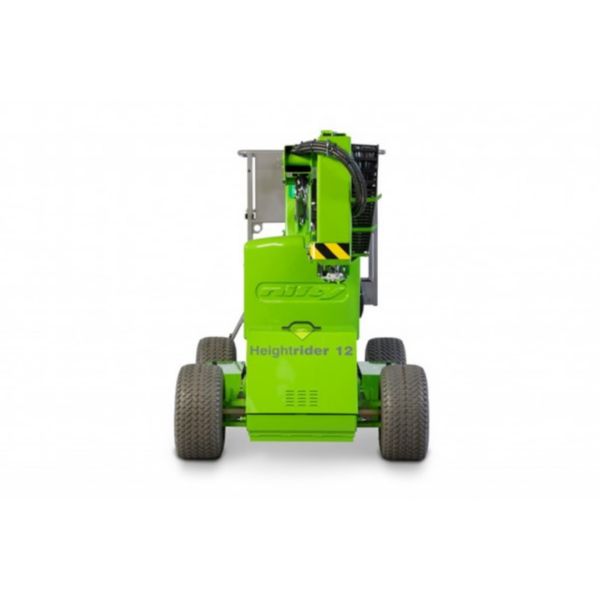

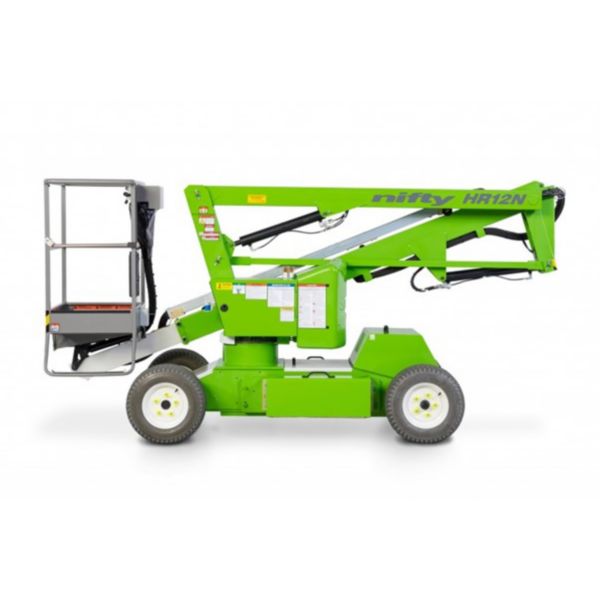

Niftylift HR12 HeightRider 12 40' Bi Energy Articulating Boom
The Niftylift HR12 (HeightRider 12) 4x4 is a versatile aerial work platform designed for rugged terrain. Its compact design and impressive reach make it ideal for construction and maintenance tasks. Elevate your productivity with this reliable equipment.
Item ID: 50000110
Reference: 079227
Basic Dimensions
Length (m)4.1
Width (m)1.62
Height (m)1.94
Weight (kg)3470
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.3
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.3
Convenience Features
All Motion AlarmYes
Articulating BoomYes
4WDYes
GeneratorYes
Non Marking TyresYes
Platform Load Sense SystemYes
Platform WorklightsYes
Proportional ControlsYes
Self Levelling PlatformYes
Power Source
Power Source / Fuel TypeBiEnergy
Battery TypeAGM
Battery (V/Ah)E (AGM Battery) - 8 x 6V 220Ah batteries - E (Lithium Battery) 1 x 48V 100Ah
Engine
E (Electric) models - 8 x 6v 250 AH batteries
P (G) (Petrol/Gasoline) models - Honda GX240 Engine
D (Diesel) models - Kubota OC95 engine (D722 - 4x4 Version)
Voltage (V)38
Engine MakeKubota
Engine ModelD722
Safety Information
Harness RingsYes
HornYes
Tilt AlarmYes
Vibration Level (m/s2)2.5
Technical Dimensions
Area - Platform (m²)0.72
Ground Clearance (m)0.26
Height - Elevated Platform (m)10.25
Height - Stowed (m)1.94
Height - Working (m)12.25
Length - Platform (m)1.1
Length - Stowed (m)3.98
Outreach - Horizontal (m)6.1
Outreach - Working (m)6.1
Tail Swing (m)0
Turning Radius - Outside (m)4.3
Wheelbase (m)1.90
Width - Platform (m)0.65
Technical Specifications
Capacity - Fuel Tank (L)10
Capacity - Platform (kg)200
Gradeability (%)30
Inclination - Allowable (max) (°)4.0
Load - Safe Working (kg)200
No. of Lifting Eyes4
No. of Persons (Max)2
Pressure - Ground Bearing (max) (kg/cm2)0.043
Pressure - Hydraulic (bar)200
Rotation - Cage (°)355
Rotation - Turntable (°)355
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2.3
Speed - Drive (Stowed) (mph)2.3
Speed - Wind (max) (mph)28
Tyre TypeFoam Filled
