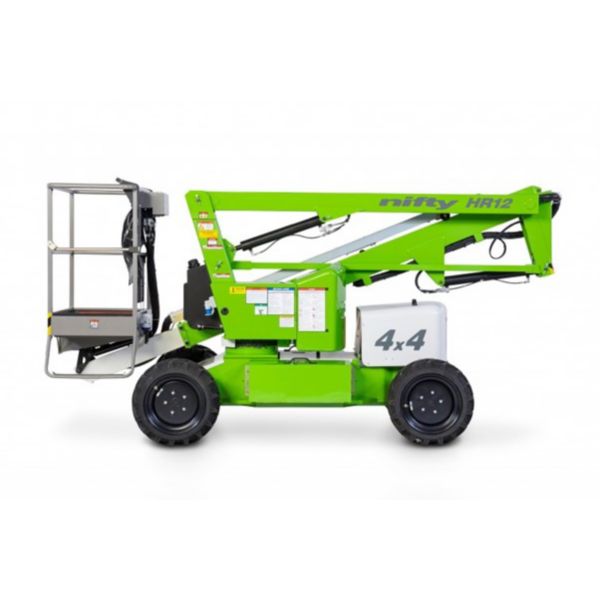

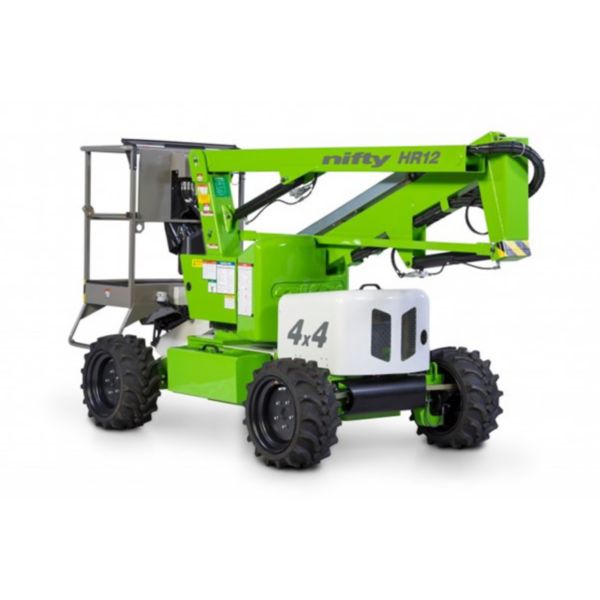

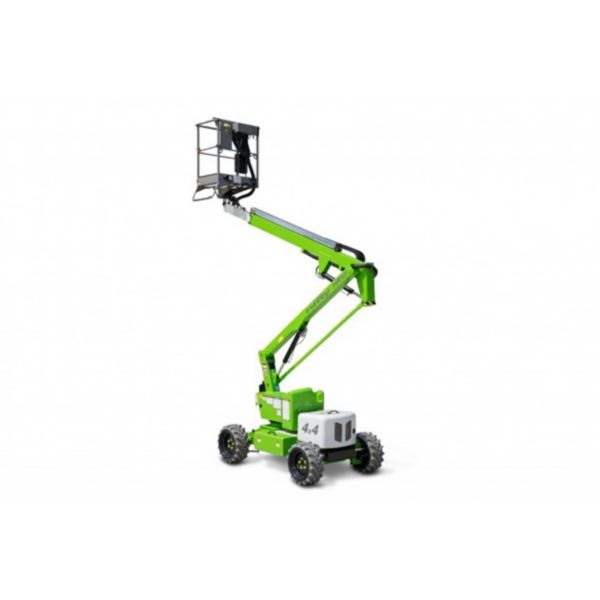

Niftylift HR12NDE 40' Bi Energy Articulated Boom Lift Earth Bonded
The Niftylift HR12NDE is a robust and versatile cherry picker designed for elevated access tasks. With its compact dimensions and impressive reach, it ensures safety and efficiency on-site. Perfect for construction and maintenance work, this machine combines power with ease of manoeuvrability.
Item ID: 50000112
Reference: 079226
Basic Dimensions
Length (m)4.1
Width (m)1.5
Height (m)1.9
Weight (kg)3100
Environmental & Sustainability
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.3
Average Usage Emissions Per Operating Hour (ERA)10.6
Average Consumption Per Operating Hour (ERA)3.4
Average Engine Operating Hours Over A Rental Day (ERA)2.3
Convenience Features
All Motion AlarmYes
4WDYes
GeneratorYes
Non Marking TyresYes
Platform Load Sense SystemYes
Platform WorklightsYes
Proportional ControlsYes
Self Levelling PlatformYes
Power Source
Power Source / Fuel TypeBiEnergy
Battery TypeAGM
Battery (V/Ah)E (AGM Battery) - 8 x 6V 220Ah batteries - E (Lithium Battery) 1 x 48V 100Ah
Engine
Battery Only
Petrol, Diesel or LPG Only
Bi-Energy (Engine & Battery)
Voltage (V)38
Engine MakeKubota
Engine ModelD722
Safety Information
Harness RingsYes
HornYes
Tilt AlarmYes
Technical Dimensions
Area - Platform (m²)0.72
Ground Clearance (m)0.26
Height - Elevated Platform (m)10.2
Height - Working (m)12.2
Length - Platform (m)1.1
Outreach - Horizontal (m)6.1
Outreach (max) (m)6.1
Tail Swing (m)0
Turning Radius - Outside (m)4.2
Wheelbase (m)1.9
Width - Platform (m)0.65
Technical Specifications
Capacity - Fuel Tank (L)10
Capacity - Platform (kg)200
Gradeability (%)25
Inclination - Allowable (max) (°)14
Load - Safe Working (kg)200
No. of Persons (Max)2
Pressure - Ground Bearing (max) (kg/cm2)4.38
Pressure - Hydraulic (bar)200
Rotation - Turntable (°)360
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)2.1
Speed - Drive (Stowed) (mph)2.1
Speed - Wind (max) (mph)28
Tyre TypeSolid Non Marking / Foam Filled
