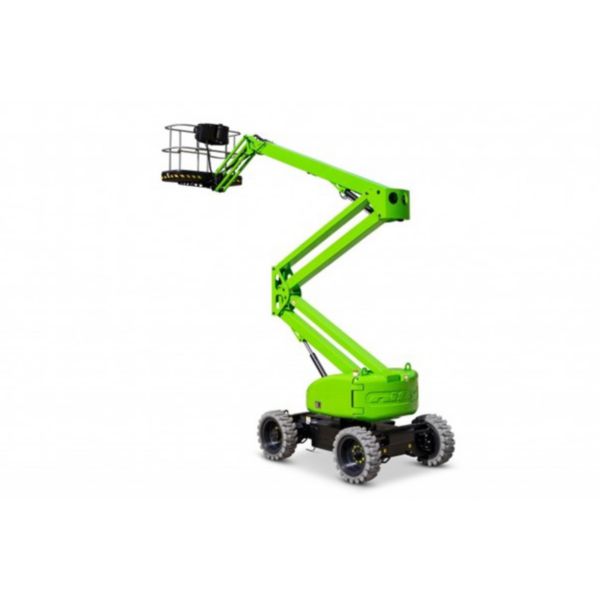

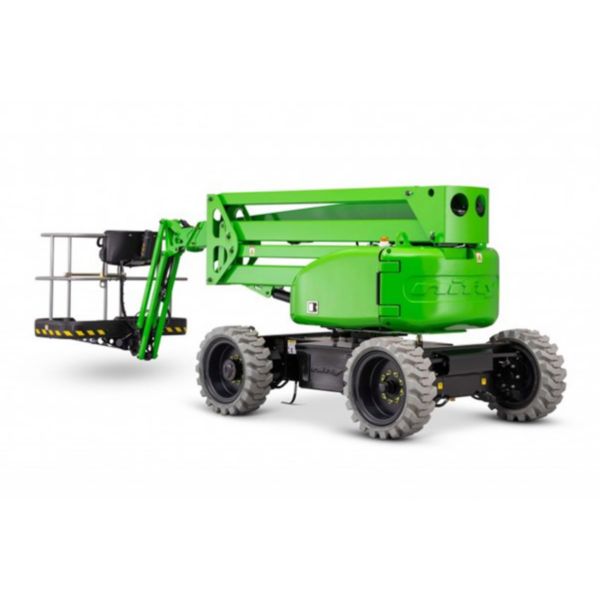

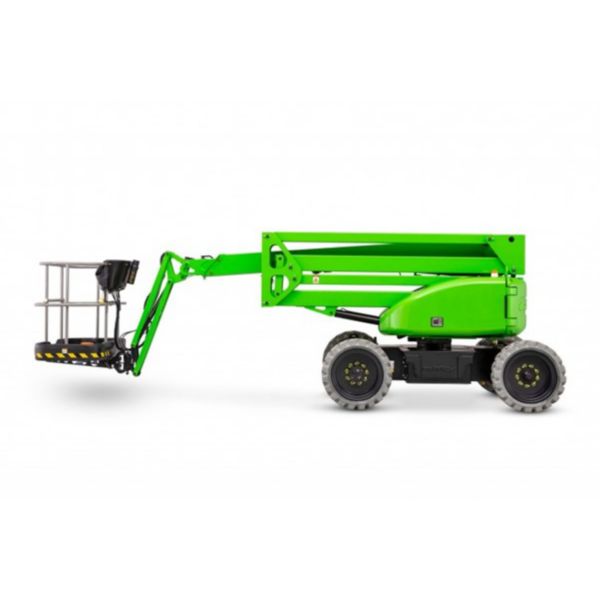

Niftylift HR21E 68' Electric Articulating Boom Lift
The Niftylift HR21E is a versatile, electric articulating boom designed for efficient access at height. With a compact design and robust performance, it is ideal for construction and maintenance tasks. Its easy manoeuvrability and user-friendly controls ensure safety and convenience on site.
Item ID: 50000097
Reference: 076451
Basic Dimensions
Length (m)6.62
Width (m)2.27
Height (m)2.18
Weight (kg)6640
Environmental & Sustainability
Sound Power (dB)58-78
Convenience Features
All Motion AlarmYes
Descent & Travel AlarmYes
Non Marking TyresYes
Power To CageYes
Self Levelling PlatformYes
Power Source
Power Source / Fuel TypeElectric
Battery (V/Ah)8 x 6V/220Ah
Engine - Stage 3ANo
Engine - Stage 3B Tier 4No
Engine - Stage 5No
Voltage (V)60
Safety Information
Harness RingsYes
HornYes
Tilt AlarmYes
Technical Dimensions
Area - Platform (m²)3.24
Height - Cage Floor (max) (m)18.8
Height - Closed (m)6.62
Height - Elevated Platform (m)18.8
Height - Stowed (m)2.18
Height - Up & Over (m)13
Height - Working (m)20.8
Length - Cage (m)1.8
Length - Platform (m)1.8
Length - Stowed (m)6.62
Outreach - Horizontal (m)13
Outreach (max) (m)13
Outreach - Working (m)13
Size - Tyre83.1 x 28.7
Turning Radius - Outside (m)3.89
Wheelbase (m)2.3
Width - Cage (m)0.8
Width - Platform (m)1.8
Technical Specifications
Capacity - Hydraulic Tank (L)75
Capacity - Lift (kg)250
Capacity - Platform (kg)250
Fly Boom Arc (°)150
Gradeability (%)25
Hydraulic PlatformYes
Inclination - Allowable (max) (°)4
Load - Safe Working (kg)250
No. of Persons (Max)2
Pressure - Hydraulic (bar)207
Rotation - Cage (°)180
Rotation - Hydraulic Platform (°)180
Rotation - Turntable (°)355
Rotation - Turret (°)355
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)3.7
Speed - Wind (max) (mph)28
Swing Non Continuous (°)355
Tyre TypeSolid Rubber Non Marking
