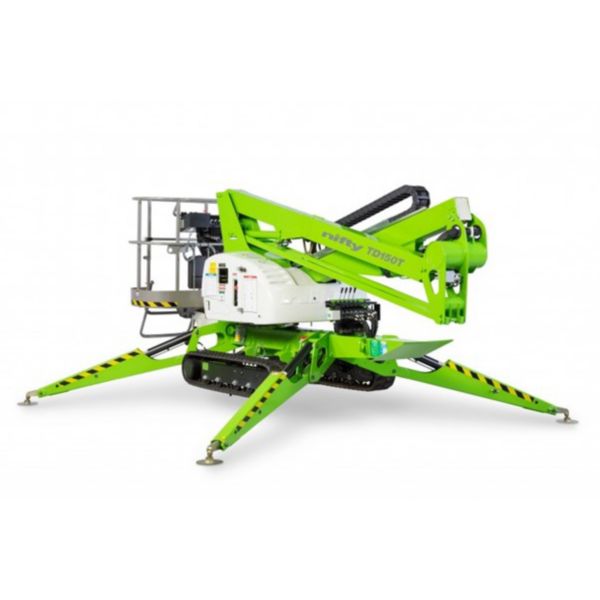

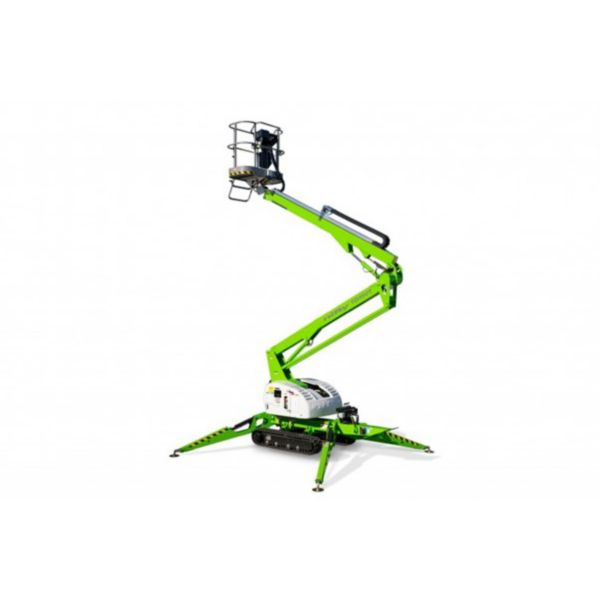

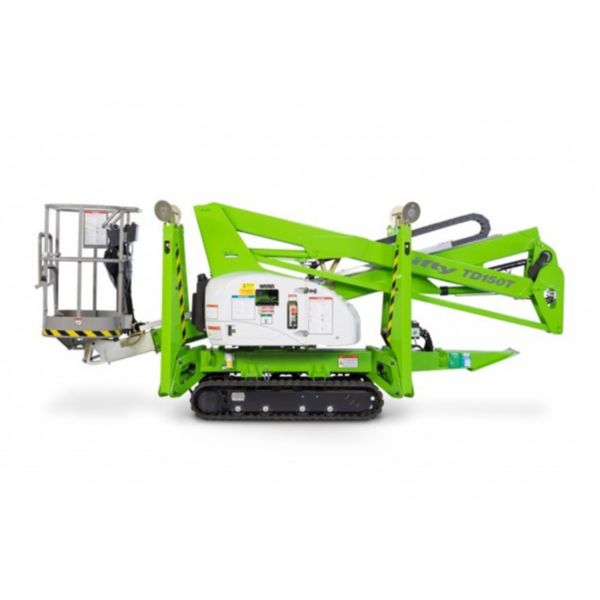

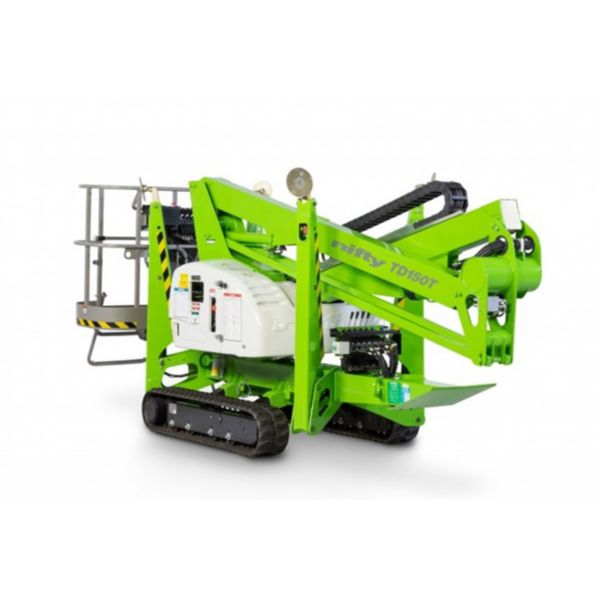

Niftylift TD150T 49' Diesel Tracked Boom Lift
The Niftylift TD150T is a versatile and compact cherry picker, ideal for a range of construction tasks. With its impressive reach and robust design, it ensures safety and efficiency at height. Perfect for both indoor and outdoor applications, this machine enhances productivity while maintaining operator comfort.
Item ID: 50000149
Reference: 080014
Basic Dimensions
Length (m)4.69
Weight (kg)2025
Environmental & Sustainability
Sound Power (dB)108
Convenience Features
4WDYes
Non Marking TyresYes
Ability To Turn On The SpotYes
Continuous TracksYes
Driven When StowedYes
Hydraulic Check ValvesYes
Hydraulic OutriggersYes
Indoor & Outdoor Use (Tracks Dependent)Yes
Manual Hand Pump At BaseYes
Manual Hydraulic OperationYes
Separate Hydraulic ControlsYes
Telescopic Upper BoomYes
Variable Width TracksYes
Power Source
Power Source / Fuel TypeDiesel
EngineDiesel: Kubota 722E / Petrol: Honda
Engine - Stage 5Yes
Engine MakeKubota
Engine ModelD722
Safety Information
Harness RingsYes
Tilt AlarmYes
Emergency Stop ButtonYes
Can Be Lowered Without Main PowerYes
Fail Safe BreaksYes
Technical Dimensions
Area - Platform (m²)1.4 x 0.7
Height - Elevated Platform (m)12.7
Height - Lowered Platform (m)2
Height - Working (m)14.7
Length - Platform (m)1.4
Tail Swing (m)0
Width - Cage (m)1.4
Width - Platform (m)0.7
Reach (max) (m)7.55
Depth - Cage (m)0.7
Jack Spread (m)3.8
Width - Working (m)3.8
Technical Specifications
Capacity - Fuel Tank (L)16
Capacity - Lift (kg)225
Capacity - Platform (kg)225
ControlsFull Proportional Hydraulic
Gradeability (%)45
Load - Safe Working (kg)225
No. of Lifting Eyes0
No. of Persons (Max)2
Pressure - Ground Bearing (max) (kg/cm2)0.042
Pressure - Hydraulic (bar)200
Rotation - Turret (°)400
Speed - Wind (max) (mph)28
Output - Power20hp
Base ControlsYes
Cage ControlYes
Load - Point (kN)13
TerrainRough Terrain
Tracks Type1745 x 250 Rubber
Speed - Drive (max) (mph)1.3
