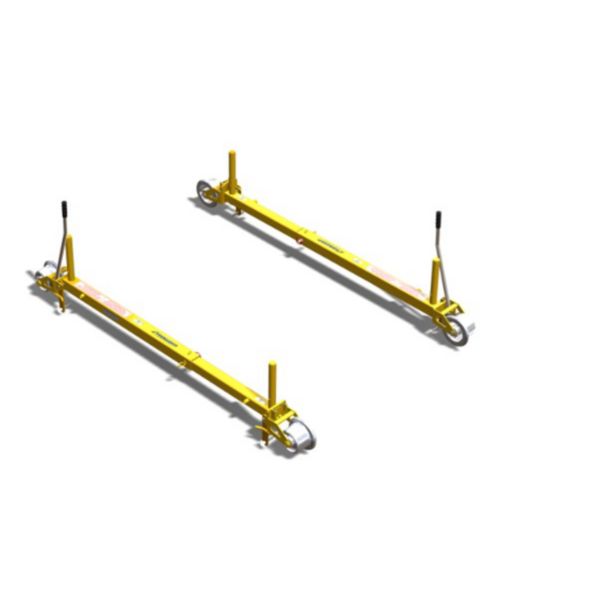

Permaquip 33014 Rail Scaffold Trolley
The Permaquip 33014 is a robust solution designed for construction needs, offering exceptional durability and reliability. Its compact dimensions ensure easy manoeuvrability on-site, making it an essential tool for any project.
Item ID: 50001607
Reference: 044018
Basic Dimensions
Length (mm)2540
Width (mm)1700
Height (mm)570
Weight (kg)80
Power Source
Power Source / Fuel TypeManual
Safety Information
ComplianceRIS-1701-PLT
Fail Safe BrakingYes
Flashing LightsNo
Technical Dimensions
Cant (max) (mm)150
Diameter - Rolling6
Height - Platform above Track (max) (mm)5000
Height - Platform above Track (max Cant 50mm) (m)4000
Height - To Top of Brake Handle (mm)806
Height - To Top of Scaffold Locating Pin (mm)501
Length (1.8m Tower) (mm)2550
Length (2.5m Tower) (mm)3150
Length - Usable Scaffold Units (m)1.8 or 2.5
Technical Specifications
MaterialsAluminium
Purpose/Made forThe Permaquip Scaffold Trolley is designed for use on track in conjunction with access towers to reach areas above the rail head. The Permaquip™ Scaffold Trolley is designed for use on-track in conjunction with the Boss Zone 1 1450 x 1.8/2.5 (fibreglass construction) and the Boss Ladderspan or Staircase 1450 x 1.8/2.5 (aluminium construction) tower systems to access areas above the rail head. Each Scaffold Trolley is equipped with a fail-safe braking system and is supplied with Brake Handles.
Gradient (max)1 in 30
Centre of MassCentral
BrakesFailsafe braking as standard tested in line with CoP 0018
Load - Safe Working (200kg Ballast UDL on Lower Deck) (kg)300
Load - Safe Working (Main Platform w/o Ballast) (kg)225
Load - Safe Working (Side Cantilever Ext. Platforms) (kg)150
Mass - Each Trolley Side (kg)40
No. That Can be Stacked0
PADS Cat No.PA05/03390
ProfileP1
Speed (max) (mph)3
