Genie GS2669 RT 26' Diesel Scissor Lift
Introducing the Genie GS2669 RT, a robust rough terrain scissor lift designed for versatility on construction sites. With impressive overall dimensions, it ensures stability and easy manoeuvrability, making it ideal for outdoor tasks. Elevate your work efficiency with this reliable machine.
Item ID: 50000058
Reference: 078024
Basic Dimensions
Length (m)3.12-3.76
Width (m)1.75
Height (m)2.59
Weight (kg)3376
Environmental & Sustainability
Sound Power (dB)85
Average Usage Emissions Per Operating Hour (ERA)7.7
Average Consumption Per Operating Hour (ERA)2.5
Average Engine Operating Hours Over A Rental Day (ERA)1.6
Engine Stage/TierTier4
Convenience Features
All Motion AlarmYes
Power To CageYes
Proportional ControlsYes
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersYes
HourmeterYes
Oscillating Axle ChassisYes
Proportional Direct DC Electric DriveYes
Proportional Lift UpYes
Quad Holding BrakesYes
Slide-Out Engine TrayYes
Tilt SensorYes
Power Source
Power Source / Fuel TypeDiesel
EngineDiesel Kubota D-1105 Diesel 24.8 hp
Engine - Stage 3B Tier 4Yes
Engine MakeKubota
Engine ModelD1105
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Vibration Level (m/s2)2.5
Dual Holding BrakesNo
Emergency Stop ButtonYes
Technical Dimensions
Area - Platform (m²)7.216
Ground Clearance (m)0.24
Ground Clearance - Stowed (mm)240
Height - Closed (m)2.59
Height - Drive (m)7.7
Height - Stowed (m)2.59

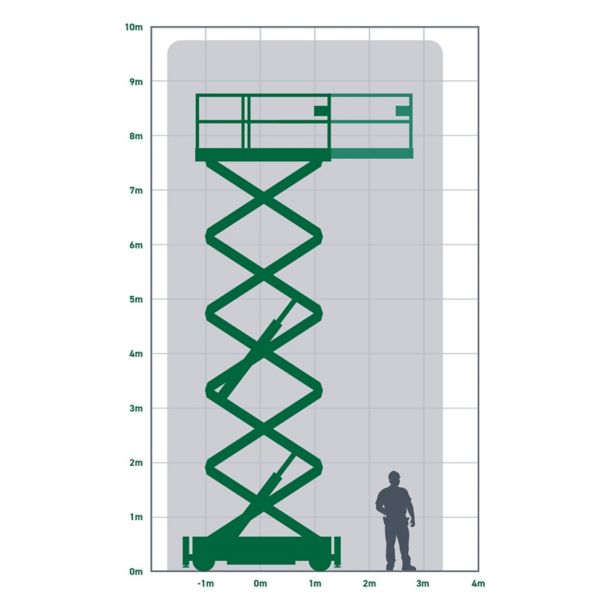

Height - Working (m)9.7
Length - Platform (m)4.51
Length - Stowed (m)3.76
Outreach - Horizontal (m)0
Size - Tyre30 x 66
Turning Radius - Inside (m)2.11
Turning Radius - Outside (m)4.6
Wheelbase (m)2.29
Width - Platform (m)1.6
Height - Hand Rails Down (m)2.59
Height - Platform (m)7.7
Height - Platform (max) (m)7.7
Height - Working (max) (m)9.7
Deck Extension (m)1.52
Technical Specifications
Capacity - Fuel Tank (L)37.9
Capacity - Hydraulic Tank (L)6.81
Gradeability (%)40
Load - Safe Working (kg)680
No. of Lifting Eyes4
No. of Persons (Max)4
Speed - Drive (Elevated) (mph)0.31
Speed - Drive (Lowered) (mph)3.48
Speed - Drive (Raised) (mph)0.31
Speed - Drive (Stowed) (mph)3.48
Speed - Falling (Loaded) (s)31
Speed - Rising (Loaded) (s)34
Speed - Wind (max) (mph)28
Tyre TypeRough Terrain
Drive Type4WD
Output - Power18.5kW (24.8hp)
Hydraulic SystemHydraulic oil cooler
Capacity - Distributed (Extension Deck) (kg)136
Capacity - Distributed (Main Platform) (kg)544
Capacity - Total (kg)680
