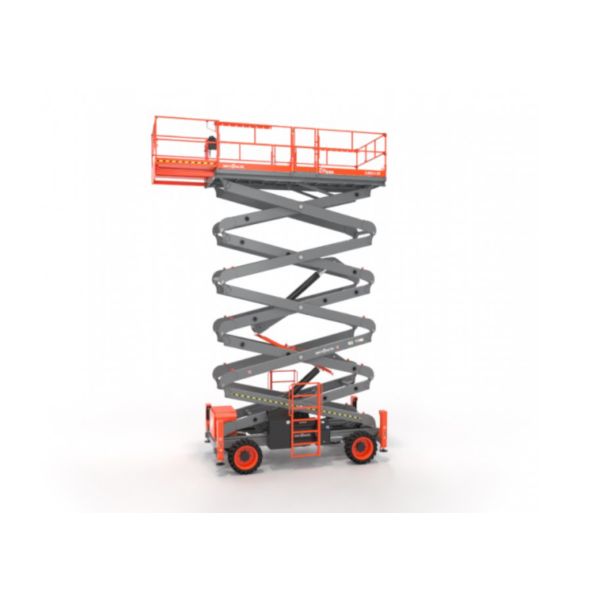

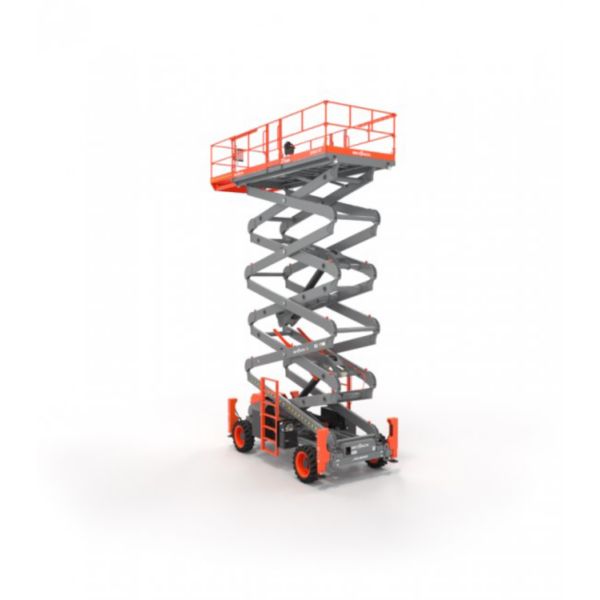

Skyjack SJ9664 RTE 64' Diesel Scissor Lift
The Skyjack SJ9664 RTE is a robust, electric scissor lift ideal for construction projects. With a generous platform height and exceptional manoeuvrability, it ensures efficient operation in tight spaces. Designed for both indoor and outdoor use, this lift enhances productivity while maintaining safety standards.
Item ID: 50000074
Reference: 078002
Basic Dimensions
Length (m)4.57
Width (m)2.44
Height (m)3.61
Weight (kg)9750
Environmental & Sustainability
Sound Power (dB)72
Average Usage Emissions Per Operating Hour (ERA)13.7
Average Consumption Per Operating Hour (ERA)4.3
Average Engine Operating Hours Over A Rental Day (ERA)1.9
Engine Stage/TierTier4
Convenience Features
All Motion AlarmYes
Non Marking TyresYes
Power To CageYes
Proportional ControlsYes
All-Wheel SteeringNo
Extended PlatformYes
Fold Down Hinged Railing SystemYes
Self Locking GateYes
OutriggersYes
Dual Flow HydraulicsNo
HourmeterYes
Lifting Check ValvesYes
Manual DescentYes
Oscillating Axle ChassisNo
Proportional Direct DC Electric DriveNo
Proportional Lift UpYes
Quad Holding BrakesNo
Single Pump HydraulicsYes
Slide-Out Engine TrayNo
Tilt SensorYes
Power Source
Power Source / Fuel TypeDiesel
EngineDiesel Kubota D1305 18.5kW (24.8hp) Tier 4F Diesel Engine
Engine - Stage 3B Tier 4Yes
Engine MakeKubota
Engine ModelD1305
Safety Information
Flashing BeaconYes
Harness RingsYes
HornYes
Tilt AlarmYes
Dual Holding BrakesYes
Emergency Stop ButtonYes
Overload Sensing SystemYes
Technical Dimensions
Area - Platform (m²)8.284
Ground Clearance (m)0.26
Ground Clearance - Stowed (mm)260
Height - Drive (m)9.14
Height - Guardrail (m)1.1
Height - Stowed (m)3.61

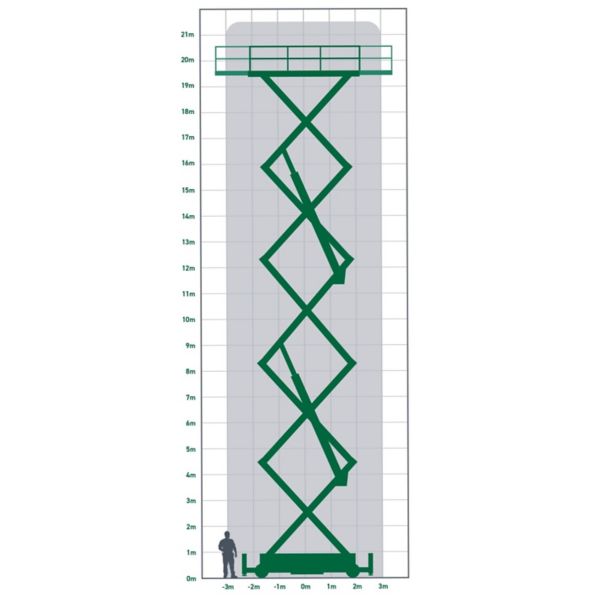

Height - Working (m)21.34
Length - Platform (m)4.36
Length - Stowed (m)4.57
Outreach - Horizontal (m)24.38
Size - Tyre305 / 33 × 12‑20
Turning Radius - Inside (m)3.33
Turning Radius - Outside (m)6.4
Wheelbase (m)3.02
Width - Platform (m)1.9
Height - Hand Rails Down (m)2.77
Height - Platform (m)19.5072
Height - Working (max) (m)21.34
Deck Extension (m)1.52
Technical Specifications
Capacity - Fuel Tank (L)49
Capacity - Hydraulic Tank (L)116
Gradeability (%)30
Load - Safe Working (kg)513
Load - Wheel (max) (kg)513
No. of Lifting Eyes4
No. of Persons (Max)3
Slope (Max) (%)30
Speed - Drive (Elevated) (mph)0.5
Speed - Drive (Lowered) (mph)3.0
Speed - Falling (Loaded) (s)70
Speed - Rising (Loaded) (s)86
Speed - Wind (max) (mph)28
Tyre TypeSolid Rubber
Drive TypeAXLDRIVE axle‑based 4WD
Output - Power18.5kW (24.8hp)
Hydraulic SystemEngine‑driven electro‑hydraulic system, Hydraulic lift cylinders
Capacity - Distributed (Extension Deck) (kg)227
Capacity - Distributed (Main Platform) (kg)286
Capacity - Total (kg)513
Weight - Total Aerial Platform (max) (kg)9997
