Sokkia Full Traverse Kit

• Price/ performance: The Professional 5000 Series meets the highest demands for precision, reliability, longevity and service
• Accuracy: You achieve the best possible measurement accuracy with these products. We recommend them for highest accuracy class instruments
• Environmental specifications: For use even in extreme conditions of –20 to +50°C.
• Spare parts: All working parts remain available years after product is discontinued.
• Lifetime: The chosen materials guarantee a maximum lifetime, even under the most extreme conditions.

• Tripods x2
• Tribrachs x2
• Precise Carriers x2
• Basic Prisms x2
• Case x1

GZR3, Precision carrier with optical plummet. With high accuracy optical plummet and longitudinal bubble for exact positioning over measurement points.

Reflector centring accuracy 0.3mm,

plummet accuracy 0.5mm at 1.5m.

• The hysteresis of the Professional 5000 Series tribrachs is guaranteed to a maximum of 1 inch (0.3mgon) or better
• The foot screws are maintenance free and ensure a movement that is smooth and free of play, even in the most severe environmental conditions
• The tribrachs in this series are recommended for all tasks that require angle measurements of under 3 inch
• Due to the minimal hysteresis, we recommend use of the Professional 5000 Series for all motorised instruments.

• The Professional 5000 Series consists solely of heavy duty wooden tripods providing highest stability
• Best height stability, maximum torsional rigidity and minimal horizontal drift over long time periods
• Suitable for instruments up to 15kg
• Recommended for the highest angle accuracy of 3 inch and less
• Due to vibration dampening characteristics of the carefully selected beech wood, this series is highly recommended for use with motorised TPS instruments
• With its height stability, this series perfectly complements the LS15 digital level.

• Price/ performance: The Professional 3000 Series meets high standards in exactness, function, consistency and service.
• Accuracy: The Professional 3000 Series is conceived for all applications where a positioning accuracy of 3mm and more is sufficient.
• Environmental specifications: For use even in extreme conditions of –20 to +50°C.
• Spare parts: The most important working parts remain available years after product is discontinued.
• Lifetime: The materials used provide a long lifetime, even under difficult conditions

• Tripods x2
• Tribrachs x2
• Carriers x2
• Basic Prisms x2
• Case x1

GZR103, Carrier with optical plummet. Rotatable carrier with longitudinal

bubble for use in tribrachs without plummet.

Reflector centring accuracy 1.0mm,

plummet accuracy 0.5mm at 1.5m

• The hysteresis of the Professional 3000 Series tribrachs amounts to a maximum of 3 inch (1.0mgon)
• The foot screws are maintenance free and have a larger diameter. This allows for fine adjustments, even when wearing work gloves under difficult environmental conditions
• These tribrachs are suitable for non-motorised TPS instruments with angle accuracy from 5-7 inch and GNSS antenna stations as well as backsights and control points

• The Professional 3000 Series consists of high value, light duty tripods
• Suitable for instruments with weights of under 5kg
• Optimised for maximum lifetime in most difficult of operating conditions
• Available in either wood or aluminium, according to application
• GST05 wooden tripod suitable for non-motorised TPS instruments with angle accuracy from 5-7 inch. Ideal tripod for mobile GNSS reference stations as well as static observations
• GST05L aluminium tripod. Suitable for short-term prism stations on control points or as a light tripod for GNSS measurement campaigns.

• Price/ performance: The Professional 5000 Series meets the highest demands for precision, reliability, longevity and service
• Accuracy: You achieve the best possible measurement accuracy with these products. We recommend them for highest accuracy class instruments
• Environmental specifications: For use even in extreme conditions of –20 to +50°C.
• Spare parts: All working parts remain available years after product is discontinued.
• Lifetime: The chosen materials guarantee a maximum lifetime, even under the most extreme conditions.

• Tripod x1
• Tribrach x2
• Precise Carrier x1
• Basic Prism x1
• Case x1

GZR3, Precision carrier with optical plummet. With high accuracy optical plummet and longitudinal bubble for exact positioning over measurement points.

Reflector centring accuracy 0.3mm,

plummet accuracy 0.5mm at 1.5m.

• The hysteresis of the Professional 5000 Series tribrachs is guaranteed to a maximum of 1 inch (0.3mgon) or better
• The foot screws are maintenance free and ensure a movement that is smooth and free of play, even in the most severe environmental conditions
• The tribrachs in this series are recommended for all tasks that require angle measurements of under 3 inch
• Due to the minimal hysteresis, we recommend use of the Professional 5000 Series for all motorised instruments.

• The Professional 5000 Series consists solely of heavy duty wooden tripods providing highest stability
• Best height stability, maximum torsional rigidity and minimal horizontal drift over long time periods
• Suitable for instruments up to 15kg
• Recommended for the highest angle accuracy of 3 inch and less
• Due to vibration dampening characteristics of the carefully selected beech wood, this series is highly recommended for use with motorised TPS instruments
• With its height stability, this series perfectly complements the LS15 digital level.

• Price/ performance: The Professional 3000 Series meets high standards in exactness, function, consistency and service.
• Accuracy: The Professional 3000 Series is conceived for all applications where a positioning accuracy of 3mm and more is sufficient.
• Environmental specifications: For use even in extreme conditions of –20 to +50°C.
• Spare parts: The most important working parts remain available years after product is discontinued.
• Lifetime: The materials used provide a long lifetime, even under difficult conditions

• Tripod x1
• Tribrach x1
• Carrier x1
• Basic Prism x1
• Case x1

GZR103, Carrier with optical plummet. Rotatable carrier with longitudinal

bubble for use in tribrachs without plummet.

Reflector centring accuracy 1.0mm,

plummet accuracy 0.5mm at 1.5m

• The hysteresis of the Professional 3000 Series tribrachs amounts to a maximum of 3 inch (1.0mgon)
• The foot screws are maintenance free and have a larger diameter. This allows for fine adjustments, even when wearing work gloves under difficult environmental conditions
• These tribrachs are suitable for non-motorised TPS instruments with angle accuracy from 5-7 inch and GNSS antenna stations as well as backsights and control points

• The Professional 3000 Series consists of high value, light duty tripods
• Suitable for instruments with weights of under 5kg
• Optimised for maximum lifetime in most difficult of operating conditions
• Available in either wood or aluminium, according to application
• GST05 wooden tripod suitable for non-motorised TPS instruments with angle accuracy from 5-7 inch. Ideal tripod for mobile GNSS reference stations as well as static observations
• GST05L aluminium tripod. Suitable for short-term prism stations on control points or as a light tripod for GNSS measurement campaigns.

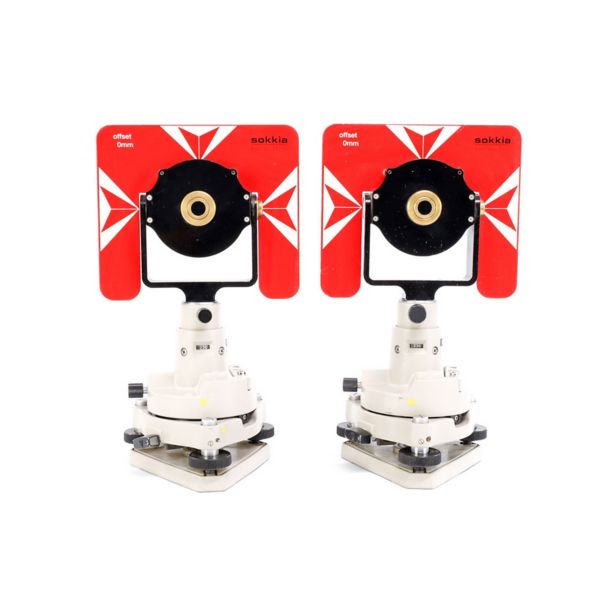

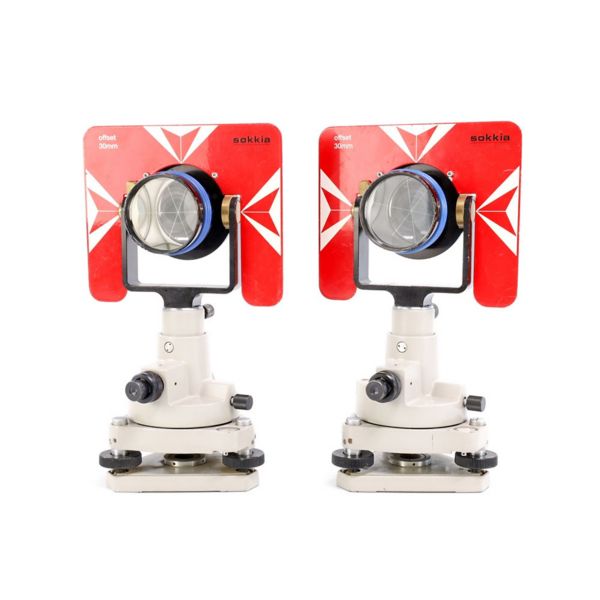

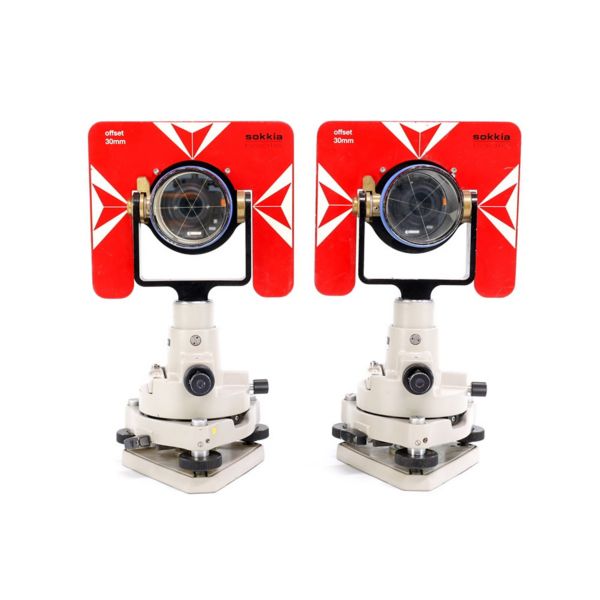

• Tribrachs (TR-101) x2
• Prisms (AP01-AR) x2
• Carriers x2
• Target Plates x2
• Rotating Tribrach Adapters (AP41) x2

• Prism x1
• Carrier x1
• Tribrach x1
• Case x1

• Field of View: 6 degrees
• Magnification: 2x
• Focus Range: +5 dioptres
• Accuracy: +0.5mm @ 1.5m (+0.02 in at 4.92ft)
• Shortest Focus Distance: 0.35m (1.15ft)
• Plummet Reticle Image: Cross hair

• Prism constant: -35 mm
• Centre Point Accuracy: +0.3mm (0.01 in)
• Prism Diameter: 52.5mm (2.01 in)
• Prism Rear Coating: Protected Silver
• Anti-Reflection Coating: Yes
• Prism Height: 135mm (5.31 in)
• Prism Range: 5000-5500m
• Tracker Range: 700m (2297ft)
• Plate Bubble Accuracy: 45 inch

• Torsional Rigidity/Hysteresis: less than 3 cc / 1 inch
• Viral Accuracy: 8ft / 2mm (8ft / 0.08 in)
