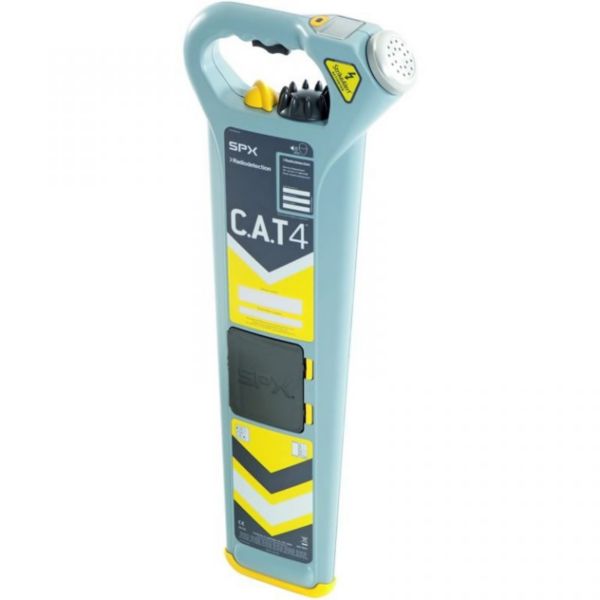

SPX Radiodetection CAT4 Cable Locator
The SPX Radiodetection CAT4 is an advanced cable and pipe locator, designed for precise underground detection. Its robust construction and user-friendly interface ensure reliable performance in various environments, making it an essential tool for construction professionals.
Item ID: 50000754
Reference: 185025
Basic Dimensions
Length (mm)251
Width (mm)64
Height (mm)716
Weight (kg)2.3 (inc. batteries)
Convenience Features
RechargeableYes
Power Source
Power Source / Fuel TypeBattery
Battery Life14 hours continuous, 0 to 50°c using Radiodetection NiMH Rechargeable batteries / 4 hours continuous 0 to 50°c using Alkaline batteries
BatteriesRequires 2 x D-Cell batteries (HR20 NiMH preferred) but alkaline LR20 can be used
Safety Information
Protection Class (IP)54
Temperature - Operating (°C)-20 to +50
Temperature - Storage (°C)-20 to +70
Dynamic Overload Protection (dB)40 (@50Hz - automatic)
Sound Power (db)91
Type of ProtectionWeatherproof to NEMA3S
Technical Dimensions
Accuracy - Horizontal GPS (m)3 (Circular Error Probable)
Range - Depth (max) (m)4 (Line depth) / 7 (Sonde Mode)
Technical Specifications
MaterialsHigh Impact ABS Plastic
Purpose/Made forLocating and tracing buried utilities
DisplayBurnt Glass Backlit LCD
RangeStandard Dual frequency Cable Avoidance Tool
Visual IndicationDigital display
Accuracy - Depth/Measurement Precision (%)Line mode 5%, Sonde Mode 5%
Accuracy - Locate (%)+/- 10% of depth
Audio OptionDetachable loudspeaker for use in noisy environments
Audio OutputAudio signal derived directly from signal received, output through wired detachable speaker
Avoidance Mode (A)Frequency Range: P+R+G (As above) / Sensitivity @1m: As above / Locate Depth (m) - Good Conditions: 4 / Poor Conditions: 2
Capacity - Data Logging (months)24 months @8hrs day, 5 days per week
Charging Options (Li-Ion pack)Mains charger and automotive (12 V vehicle) charger
DesignErgonomic, balanced and lightweight design for comfortable use
Dynamic Range (dB)120dB @10Hz
External/Wired ConnectionUSB
External/Wireless ConnectionUSB 2.0, Bluetooth Low Energy (BLE) (Android and Apple)
Gain ControlManual Rotary 270 Degree
Genny4 Signals (G)Frequency Range: Simultaneous 32.768kHz and 131.072kHz +/- 20Hz / Sensitivity @1m: 5μA / Locate Depth (m) - Good Conditions: 4 / Poor Conditions: 2
Mode ControlManual 4 position switch
Operation Modes (Hz)Direct connection: 33kHz
Power ButtonNon latching trigger On/Off when released
Power Signals (P)Frequency Range: 50Hz and 60Hz and harmonics / Sensitivity @1m: 3mA / Locate Depth (m) - Good Conditions: 3 / Poor Conditions: 2
Radio Signals (R)Frequency Range: 15kHz to 30kHz / Sensitivity @1m: 25μA / Locate Depth (m) - Good Conditions: 2 / Poor Conditions: 1
Recommended Service Interval (months)12
Service IndicatorProvides 30 day warning prior to elapse date
StrikeAlertAlarm that activates in Power, Genny and Avoidance modes when less than 30cm from Cable Avoidance Tool
Usage-Logging Capacity - GPS (days)365 days (minimum)
