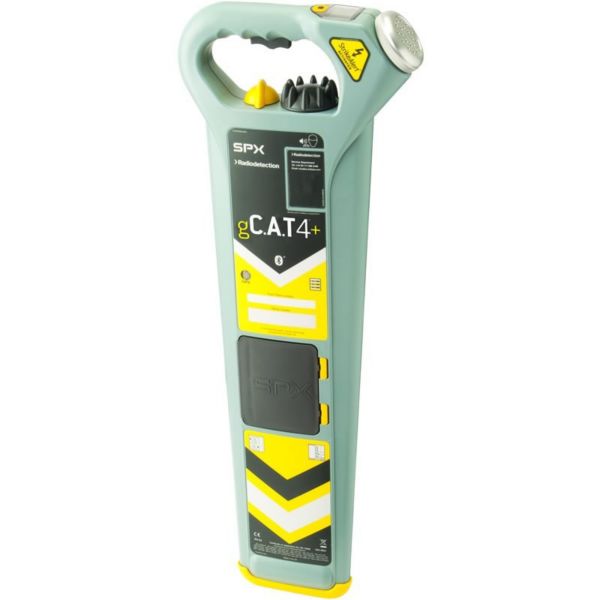

SPX Radiodetection gCAT4+ Cable Locator
The SPX Radiodetection gCAT4+ is a cutting-edge cable avoidance tool designed for precision underground detection. Its compact design ensures ease of use on any site, making it ideal for construction professionals. Enhance safety and efficiency with this reliable equipment.
Item ID: 50000757
Reference: 072576
Basic Dimensions
Length (mm)251
Width (mm)64
Height (mm)716
Weight (kg)2.3 (inc. batteries)
Convenience Features
RechargeableYes
Power Source
Power Source / Fuel TypeBattery
Battery Life17 hours continuous, 0 to 50°c using Radiodetection NiMH Rechargeable batteries / 4 hours continuous 0 to 50°c using Alkaline batteries
BatteriesRequires 2 x D-Cell batteries (HR20 NiMH preferred) but alkaline LR20 can be used
Safety Information
Protection Class (IP)54
Temperature - Operating (°C)-20 to +50
Temperature - Storage (°C)-20 to +70
Dynamic Overload Protection (dB)40 (@50Hz - automatic)
Sound Power (db)91
Type of ProtectionWeatherproof to NEMA3S
Technical Dimensions
Accuracy - Horizontal GPS (m)3 (Circular Error Probable)
Range - Depth (max) (m)4 (Line depth) / 7 (Sonde Mode)
Technical Specifications
MaterialsHigh Impact ABS Plastic
Purpose/Made forLocating and tracing buried utilities
DisplayBurnt Glass Backlit LCD
RangeStandard Dual frequency Cable Avoidance Tool with Data-logging, GPS and Depth Estimation
Visual IndicationDigital display
Accuracy - Depth/Measurement Precision (%)Line mode 5%, Sonde Mode 5%
Accuracy - Locate (%)+/- 10% of depth
Audio OptionDetachable loudspeaker for use in noisy environments
Audio OutputAudio signal derived directly from signal received, output through wired detachable speaker
Avoidance Mode (A)Frequency Range: P+R+G (As above) / Sensitivity @1m: As above / Locate Depth (m) - Good Conditions: 4 / Poor Conditions: 2
Capacity - Data Logging (months)24 months @8hrs day, 5 days per week
Charging Options (Li-Ion pack)Mains charger and automotive (12 V vehicle) charger
DesignErgonomic, balanced and lightweight design for comfortable use
Dynamic Range (dB)120dB @10Hz
External/Wired ConnectionUSB
External/Wireless ConnectionUSB 2.0, Bluetooth Low Energy (BLE) (Android and Apple)
Gain ControlManual Rotary 270 Degree
Genny4 Signals (G)Frequency Range: Simultaneous 32.768kHz and 131.072kHz +/- 20Hz / Sensitivity @1m: 5μA / Locate Depth (m) - Good Conditions: 4 / Poor Conditions: 2
Mode ControlManual 4 position switch
Operation Modes (Hz)Direct connection: 33kHz
Power ButtonNon latching trigger On/Off when released
Power Signals (P)Frequency Range: 50Hz and 60Hz and harmonics / Sensitivity @1m: 3mA / Locate Depth (m) - Good Conditions: 3 / Poor Conditions: 3
Radio Signals (R)Frequency Range: 15kHz to 30kHz / Sensitivity @1m: 25μA / Locate Depth (m) - Good Conditions: 2 / Poor Conditions: 1
Recommended Service Interval (months)12
Service IndicatorProvides 30 day warning prior to elapse date
StrikeAlertAlarm that activates in Power, Genny and Avoidance modes when less than 30cm from Cable Avoidance Tool
Usage-Logging Capacity - GPS (days)365 days (minimum)
Usage-Logging Memory - GPS (gb)2
