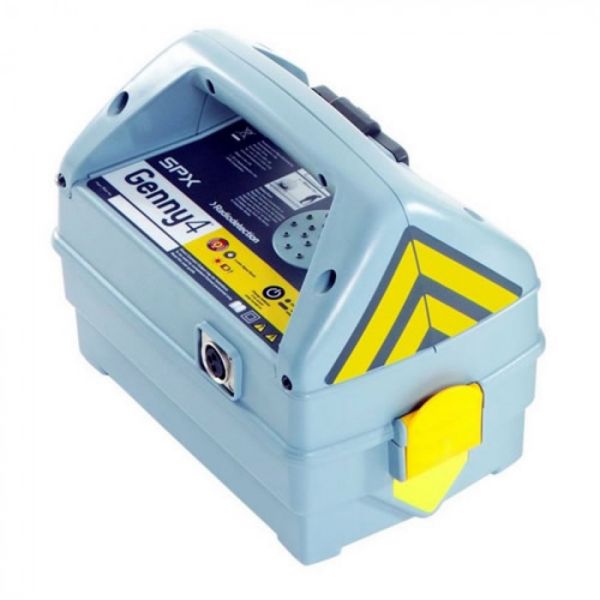

SPX Radiodetection Genny4 Signal Generator
The SPX Radiodetection Genny4 is an advanced cable locator, designed for efficient underground detection. Its compact design ensures ease of use, making it ideal for construction professionals. With precision signal strength, locate utilities quickly and accurately, enhancing site safety and productivity.
Item ID: 50000758
Reference: 072287
Basic Dimensions
Length (mm)275
Width (mm)170
Height (mm)200
Weight (kg)2.75 (inc. batteries and tool tray)
Height (mm)200
Length (mm)275
Width (mm)170
Power Source
Power Source / Fuel TypeBattery
Battery Life
40 hours continuous in standard mode or 15 hours continuous in Boost mode using Direct Connection Method /
28 hours continuous in standard mode or 9 hours continuous in Boost mode using Induction method
BatteriesAlkaline or NiMH – requires 4 off D type cells
Safety Information
Protection Class (IP)54
Temperature - Operating (°C)-20 to +50
Temperature - Storage (°C)-40 to +70
Technical Dimensions
Range - Wireless (m)450
Technical Specifications
Compliance
Safety: EN 60950-1:2006+A2:2013 and EN 60950-22:2006 / EMC: EN 61326-1:2013; EN 300 330-2 (V1.5.1); EN 301 489-3 (V1.6.1)
& EN 301 489-17 (V2.2.1)
Contents - KitTool tray to include direct connection lead, earth stake and neodymium magnet
MaterialsInjected Molded ABS Plastic
Purpose/Made forUsed with C.A.T4 range of locators for avoiding and tracing buried utilities
Visual IndicationLEDIndicates Boost output mode selection and battery low warning indicator
Audio OptionBuilt-in water-resistant speaker
Audio OutputStandard and Mute options / Audio output change to indicate a good connection
Cleaning
- Abrasive materials or chemicals
- High pressure jets of water
- If using this equipment in foul water systems or other areas where biological hazards may be present, use an appropriate disinfectant
EnvironmentalWEEE compliant & ROHS compliant
European DirectivesRadio Equipment 2014/53/Eu & ROHS Directive: 2011/65/EU
External/Wired ConnectionXLR type for connection of direct connection lead, transmitter clamp and accessories. Mini-USB 2.0: Connect to a PC to update transmitter / Accessory Port: Connect Radiodetection accessories / Power In: Connects to an external power supply
External/Wireless ConnectionBluetooth class 1
ManufacturingISO 9001:2008
OperationPush button control by pressing appropriate push button / On / off, speaker volume control and Boost button for selecting standard or Boost output level
Operation Modes (Hz)
- Direct Connection Mode: 33kHz (32768Hz) and 131kHz (131072Hz) both signals transmitted simultaneously /
- Transmitter Clamp Mode: 33kHz (32768Hz) and 131kHz (131072Hz) both signals transmitted simultaneously /
- Induction Mode: 33kHz (32768Hz)
Output - Current (max) (A)0.066
Output - Induction1089
Output - Power (max)1
Output Signal LevelSelectable Standard or Boost Mode (Note: Transmitter will always power up in standard mode)
Output - Voltage (max) (V)23
RadioFCC, IC
Recommended Service Interval (months)12
StorageStore in a clean and dry environment. Ensure all terminals and connection sockets are clean, free of debris and corrosion and are undamaged
