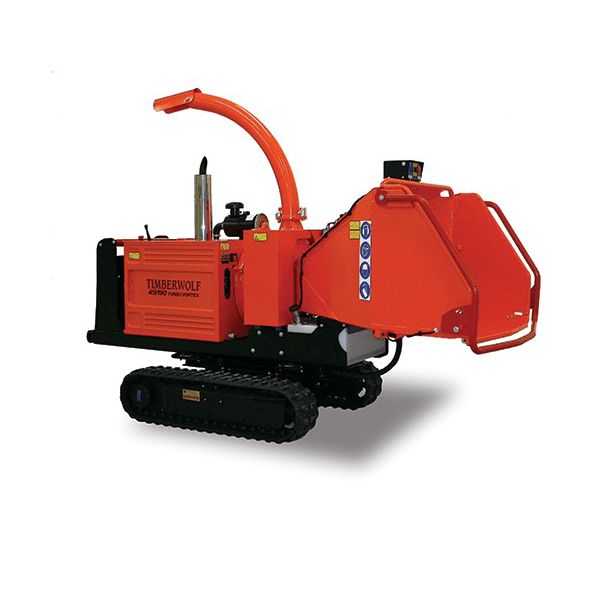

Timberwolf TW 190TFTR 7.5" Diesel Tracked Wood Chipper
The Timberwolf TW 190TFTR is a robust and efficient wood chipper, designed for heavy-duty performance. Its compact dimensions allow for easy manoeuvrability, making it ideal for both professional and domestic use.
Item ID: 50003036
Reference: 030230
Basic Dimensions
Length (mm)2550 - 3110
Height (mm)2360
Width (mm)1350
Weight (kg)1335
Convenience Features
Hydraulic Feed Roller SystemYes
TowableNo
No Stress SystemYes
Power Source
Power Source / Fuel TypeDiesel
Engine MakeKubota
Engine ModelV1505
Power - Engine (max) (kW)33.5
Power - I.C. Engine Rating (hp)45
Safety Information
Noise Level (dB)119
Sound Pressure (dB)92
Touch Button Feed ControlYes
Top Feed RollerYes
Technical Dimensions
Size - Feed Roller Aperture ("/mm)7.5" / 190mm
Technical Specifications
Capacity - Fuel Tank (L)50
Capacity - Hydraulic Tank (L)44
Cooling SystemWater cooled
Purpose/Made forThe Timberwolf TW 190TFTR (Turbo) brushwood chipper is designed to chip solid wood material up to 190 mm in diameter. It is capable of chipping up to 6.5 tonnes of brushwood per hour. These machines are ideal for railway and utility contracts.
Feed Roller System
2 blades 127mm (5") long 100 mm wide Twin
hydraulic rollers c/w Auto Feed Control
Capacity - Material Processing (t/ph)6.5
