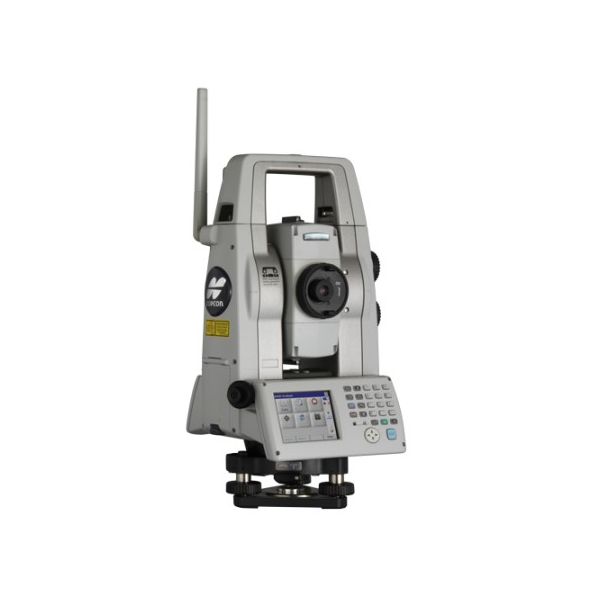

Topcon MS1AX 1" Monitoring Total Station

• Precise+ / Once: 1 mm + 1.5 ppm (typical 2.4 s)
• Precise&Fast / Once&Fast: 2 mm + 1.5 ppm (typical 2 s)
• Tracking / Continously: 3 mm + 1.5 ppm (typical < 0.15 s)
• Averaging: 1 mm + 1.5 ppm
• Long Range mode / > 4 km: 5 mm + 2 ppm (typical 2.5 s)
• 0 m - 500 m: 2 mm + 2 ppm (typical 2.4 s5)
• More than 500 m: 4 mm + 2 ppm

Without tribrach: 196 mm

With tribrach (GDF111): 240 mm ±5 mm

• Prism (GPR1, GPH1P): 0.9 m to 3,500 m
• Prism GPR1 (Long Range mode) > 10,000 m
• R500
• R1000 (Optional)

• 7 x 10mm @ 30m
• 8 x 20mm @ 50m
• 16 x 25mm @ 100m

Type: Bluetooth/WLAN/GSM/UMTS/LTE

Gain: +2 dBi

• TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
• Operating system – Windows EC7

• RS232: 5 pin LEMO-0 for power, communication, data transfer.
• SD card port: SD card port for data transfer
• USB host port: USB memory stick port for data transfer.
• USB device port: Cable connections from USB devices for communication and data transfer.
• Bluetooth: Bluetooth connections for communication and data transfer.
• WLAN: WLAN connection for Internet access, communication, and data transfer
• LTE (optional): Internet access

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Visualizing the aiming direction and vertical axis.
• Data communication with external appliances.
• Computing by means of software.

Circular level sensitivity: 6ft/2 mm

Electronic level resolution: 2 inch

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.

Magnification: 30 x

Resolving power: 3 inch (40mm)

Focusing: 1.55 m/5.08 ft to infinity

Field of view: 1°30’/1.66 gon. 2.7 m at 100 m

• GKL341 charger for GEB364: 3 h 30 min // GEB334: 3 h
• GKL311 charger for GEB364: 6 h 30 min // GEB334: 3 h 30 min

• Internal memory: 4 GB Flash
• Memory card: SD card 1 GB or 8 GB
• USB memory stick: 1 GB

• The RS232 serial interface
• The USB device port
• A USB memory stick
• XML Export

Principle: Phase measurement

Type: Coaxial, visible red laser

Carrier wave: 658 nm

Measuring system: System analyser basis 100 MHz - 150 MHz (FF) // 320MHz (EF)

• 1 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 2 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 3 inch, 1 inch, 0.3 mgon, ±4, 0.07 gon
• 5 inch, 1.5 inch, 0.5 mgon, ±4, 0.07 gon
• 7 inch, 2 inch, 0.7 mgon, ±4, 0.07 gon

• 1 inch, 0.3 mgon, Resolution: 0.1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 2 inch, 0.6 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 3 inch, 1.0 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 5 inch, 1.5 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 7 inch, 2 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil

• Line of sight error
• Vertical index error
• Tilting axis error
• Refraction
• Earth curvature
• Compensator index error
• Standing axis tilt
• Circle eccentricity

• Range A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer
• Range B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer
• Range C: Overcast, no haze, visibility about 40 km; no heat shimmer
• Range D: Object in strong sunlight, severe heat shimmer
• Range E: Object in share, or overcast
• Range F: Day, night and twilight

• Working range: 5 m to 150 m
• Position accuracy: 5 cm at 100 m
• Wavelength red /orange: 617 nm / 593 nm

• Plumb line deviation: 1.5 mm at 1.5 m instrument height
• Diameter of laser point: 2.5 mm at 1.5 m instrument height

• Precise+ / Once: 1 mm + 1.5 ppm (typical 2.4 s)
• PreciseandFast / OnceandFast: 2 mm + 1.5 ppm (typical 2 s)
• Tracking / Continously: 3 mm + 1.5 ppm (typical less than 0.15 s)
• Averaging: 1 mm + 1.5 ppm
• Long Range mode / more than 4 km: 5 mm + 2 ppm (typical 2.5 s)
• 0 m - 500 m: 2 mm + 2 ppm (typical 2.4 s5)
• More than 500 m: 4 mm + 2 ppm

Without tribrach: 196 mm

With tribrach (GDF111): 240 mm ±5 mm

• Prism (GPR1, GPH1P): 0.9 m to 3,500 m
• Prism GPR1 (Long Range mode) more than 10,000 m
• R500
• R1000 (Optional)

• 7 x 10mm @ 30m
• 8 x 20mm @ 50m
• 16 x 25mm @ 100m

Type: Bluetooth/WLAN/GSM/UMTS/LTE

Gain: +2 dBi

• TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
• Operating system – Windows EC7

• RS232: 5 pin LEMO-0 for power, communication, data transfer.
• SD card port: SD card port for data transfer
• USB host port: USB memory stick port for data transfer.
• USB device port: Cable connections from USB devices for communication and data transfer.
• Bluetooth: Bluetooth connections for communication and data transfer.
• WLAN: WLAN connection for Internet access, communication, and data transfer
• LTE (optional): Internet access

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Visualizing the aiming direction and vertical axis.
• Data communication with external appliances.
• Computing by means of software.

Circular level sensitivity: 6ft/2 mm

Electronic level resolution: 2 inch

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.

Magnification: 30 x

Resolving power: 3 inch (40mm)

Focusing: 1.55 m/5.08 ft to infinity

Field of view: 1°30’/1.66 gon. 2.7 m at 100 m

• GKL341 charger for GEB364: 3 h 30 min // GEB334: 3 h
• GKL311 charger for GEB364: 6 h 30 min // GEB334: 3 h 30 min

• Internal memory: 4 GB Flash
• Memory card: SD card 1 GB or 8 GB
• USB memory stick: 1 GB

• The RS232 serial interface
• The USB device port
• A USB memory stick
• XML Export

Principle: Phase measurement

Type: Coaxial, visible red laser

Carrier wave: 658 nm

Measuring system: System analyser basis 100 MHz - 150 MHz (FF) // 320MHz (EF)

• 1 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 2 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 3 inch, 1 inch, 0.3 mgon, ±4, 0.07 gon
• 5 inch, 1.5 inch, 0.5 mgon, ±4, 0.07 gon
• 7 inch, 2 inch, 0.7 mgon, ±4, 0.07 gon

• 1 inch, 0.3 mgon, Resolution: 0.1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 2 inch, 0.6 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 3 inch, 1.0 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 5 inch, 1.5 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 7 inch, 2 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil

• Line of sight error
• Vertical index error
• Tilting axis error
• Refraction
• Earth curvature
• Compensator index error
• Standing axis tilt
• Circle eccentricity

• Range A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer
• Range B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer
• Range C: Overcast, no haze, visibility about 40 km; no heat shimmer
• Range D: Object in strong sunlight, severe heat shimmer
• Range E: Object in share, or overcast
• Range F: Day, night and twilight

• Working range: 5 m to 150 m
• Position accuracy: 5 cm at 100 m
• Wavelength red /orange: 617 nm / 593 nm

• Plumb line deviation: 1.5 mm at 1.5 m instrument height
• Diameter of laser point: 2.5 mm at 1.5 m instrument height

• Prism-Standard: 1 mm + 1.5 ppm @ 2.4 secs
• Prism-Fast: 3 mm + 1.5 ppm @ 0.8 secs
• Prism-Tracking: 3 mm + 1.5 ppm @ less than 0.15 secs
• Tape: 5 mm + 1.5 ppm @ 2.4 secs

Without tribrach: 196 mm

With tribrach (GDF111): 240 mm ±5 mm

DISTANCE MEASUREMENT WITH REFLECTOR;

Range Round prism (Leica GPR1): 3.500 m

Range Prism-Long (Leica GPR1, R500/R1000): more than 10,000 m

Range Reflective tape (60 mm x 60 mm): more than 500m // 1000m

Accuracy: Precise+: 1.5 mm + 2.0 ppm // Precise Fast: 2.0 mm + 2.0 ppm // Tracking: 3.0 mm + 2.0 ppm

Typical Measurement time: 1.0 s

Measurement time while in Precise+ mode: 2.4s

DISTANCE MEASUREMENT WITHOUT REFLECTOR;

Range 5) PinPoint R500 / R1000: more than 500 m / more than 1000 m

Accuracy: 2 mm + 2 ppm

Laser dot size: At 30 m: approx. 7 x 10 mm // At 50 m: approx. 8 x 20 mm

• 7 x 10mm @ 30m
• 8 x 20mm @ 50m

Type: Mono pole

Gain: +2 dBi

• Serial (Baudrate up to 115200)
• USB Type A and mini B,
• Bluetooth® Wireless, class 1, 150 m

• RS232: 5 pin LEMO-0 for power, communication, data transfer.
• USB host port: USB memory stick port for data transfer.
• USB device port: Cable connections from USB devices for communication and data transfer.
• Bluetooth: Bluetooth connections for communication and data transfer.

• Measuring distances.
• Recording measurements.
• Visualizing the aiming direction and vertical axis.
• Data communication with external appliances.
• Computing by means of software.

Circular level sensitivity: 6ft/2 mm

Electronic level resolution: 2 inch

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.

• Magnification: 30 x
• Free Objective aperture: 40 mm
• Focusing: 1.7 m/5.6 ft to infinity
• Field of view: 1°30’/1.66 gon. 2.7 m at 100 m
• Reticle: Illuminated, 10 brightness levels

Max: 100,000 fixpoints,

Max: 60,000 measurements

• The RS232 serial interface
• The USB device port
• A USB memory stick
• XML Export

Principle: Phase measurement

Type: Coaxial, visible red laser

Carrier wave: 658 nm

Measuring system: System analyser basis 100 MHz - 150 MHz

• 1 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 2 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 3 inch, 1 inch, 0.3 mgon, ±4, 0.07 gon
• 5 inch, 1.5 inch, 0.5 mgon, ±4, 0.07 gon
• 7 inch, 2 inch, 0.7 mgon, ±4, 0.07 gon

• 1 inch, 0.3 mgon, Resolution: 0.1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 2 inch, 0.6 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 3 inch, 1.0 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 5 inch, 1.5 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 7 inch, 2 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil

• Line of sight error
• Vertical index error
• Tilting axis error
• Refraction
• Earth curvature
• Compensator index error
• Standing axis tilt
• Circle eccentricity

• Range A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer
• Range B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer
• Range C: Overcast, no haze, visibility about 40 km; no heat shimmer
• Range D: Object in strong sunlight, severe heat shimmer
• Range E: Object in share, or overcast
• Range F: Day, night and twilight

Working range: 5 m to 150 m (15 ft to 500 ft)

Position accuracy: 5 cm at 100 m (1.97" at 330 ft)

• Type: Laser point, 5 brightness levels
• Centring accuracy: 1.5 mm at 1.5 m instrument height

• Precise+ / Once: 1 mm + 1.5 ppm (typical 2.4 s)
• PreciseandFast / OnceandFast: 2 mm + 1.5 ppm (typical 2 s)
• Tracking / Continously: 3 mm + 1.5 ppm (typical less than 0.15 s)
• Averaging: 1 mm + 1.5 ppm
• Long Range mode / more than 4 km: 5 mm + 2 ppm (typical 2.5 s)
• 0 m - 500 m: 2 mm + 2 ppm (typical 2.4 s5)
• More than 500 m: 4 mm + 2 ppm

Without tribrach: 196 mm

With tribrach (GDF111): 240 mm ±5 mm

• Prism (GPR1, GPH1P): 0.9 m to 3,500 m
• Prism GPR1 (Long Range mode) more than 10,000 m
• R500
• R1000 (Optional)

• 7 x 10mm @ 30m
• 8 x 20mm @ 50m
• 16 x 25mm @ 100m

Type: Bluetooth/WLAN/GSM/UMTS/LTE

Gain: +2 dBi

• TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™
• Operating system – Windows EC7

• RS232: 5 pin LEMO-0 for power, communication, data transfer.
• SD card port: SD card port for data transfer
• USB host port: USB memory stick port for data transfer.
• USB device port: Cable connections from USB devices for communication and data transfer.
• Bluetooth: Bluetooth connections for communication and data transfer.
• WLAN: WLAN connection for Internet access, communication, and data transfer
• LTE (optional): Internet access

• Measuring horizontal and vertical angles.
• Measuring distances.
• Recording measurements.
• Visualizing the aiming direction and vertical axis.
• Data communication with external appliances.
• Computing by means of software.

Circular level sensitivity: 6ft/2 mm

Electronic level resolution: 2 inch

• Blow dust off lenses and prisms.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.

Magnification: 30 x

Resolving power: 3" (40mm)

Focusing: 1.55 m/5.08 ft to infinity

Field of view: 1°30’/1.66 gon. 2.7 m at 100 m

• GKL341 charger for GEB364: 3 h 30 min // GEB334: 3 h
• GKL311 charger for GEB364: 6 h 30 min // GEB334: 3 h 30 min

• Internal memory: 2 GB Flash
• Memory card: SD card 1 GB or 8 GB

• The RS232 serial interface
• The USB device port
• A USB memory stick
• XML Export

Principle: Phase measurement

Type: Coaxial, visible red laser

Carrier wave: 658 nm

Measuring system: System analyser basis 100 MHz - 150 MHz (FF) // 320MHz (EF)

• 1 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 2 inch, 0.5 inch, 0.2 mgon, ±4, 0.07 gon
• 3 inch, 1 inch, 0.3 mgon, ±4, 0.07 gon
• 5 inch, 1.5 inch, 0.5 mgon, ±4, 0.07 gon
• 7 inch, 2 inch, 0.7 mgon, ±4, 0.07 gon

• 1 inch, 0.3 mgon, Resolution: 0.1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 2 inch, 0.6 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 3 inch, 1.0 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 5 inch, 1.5 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil
• 7 inch, 2 mgon, Resolution: 1 inch, 0.0001°, 0.1 mgon, 0.01 mil

• Line of sight error
• Vertical index error
• Tilting axis error
• Refraction
• Earth curvature
• Compensator index error
• Standing axis tilt
• Circle eccentricity

• Range A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer
• Range B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer
• Range C: Overcast, no haze, visibility about 40 km; no heat shimmer
• Range D: Object in strong sunlight, severe heat shimmer
• Range E: Object in share, or overcast
• Range F: Day, night and twilight

• Working range: 5 m to 150 m
• Position accuracy: 5 cm at 100 m
• Wavelength red /orange: 617 nm / 593 nm

• Plumb line deviation: 1.5 mm at 1.5 m instrument height
• Diameter of laser point: 2.5 mm at 1.5 m instrument height

• Precise angle accuracies 0.5 inch (NET05 AXII) / 1 inch (NET1 AXII)
• 1 inch Auto-pointing accuracy
• Remote control through on-line PC
• Exclusive reflector prescan technology
• Enforced durability for long-term deformation /

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Circular Level: 10ft/2mm
• Electronic Circular Levels: Graphic Display Range – 6ft (inner circle) // Digital Display Range: ±6’ 30 inch

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Length: 168mm
• Aperture: 45mm (1.8 inch) (EDM: 50mm (2.0 inch))
• Magnification: 30X
• Image: Erect
• Resolving Power: 2.5 inch
• Field of View: 1°30’ (26m/1,000m)
• Minimum Focus: 1.3m (4.3ft)
• Focussing Screw: 1 speed
• Reticle Illumination: 5 brightness levels

• Internal Memory: 500MB
• External Memory: up to 8GB USB Flash

• Display: 3.5 inch Transmissive TFT QVGA colour LCD
• Backlight: LED – 9 brightness levels
• Touch Panel: Resistance-sensitive analogue type
• Keyboard: 25 keys (backlit with Trigger Key)

• Display: 3.5 inch Transmissive TFT QVGA colour LCD
• Backlight: LED – 9 brightness levels
• Touch Panel: Resistance-sensitive analogue type
• Keyboard: 25 keys (backlit with Trigger Key)

• Data Input/Output: Asynchoronous serial, RS232C compatible
• USB: USB Ver. 2.0, Host (Type A) and Client (Type MiniB)

• Type: Liquid 2-axis tilt sensor
• Correction Unit: 1 inch
• Range of Compensation: ±6
• Automatic Compensator: ON (V & H/V)/OFF (selectable
• Tilt Offset: Can be changed

• Slight haze, visibility about 20km, sunny periods, weak scintillation
• No haze, visibility about 40km, overcast, no scintillation
• Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism
• Face the reflective sheet target to the instrument
• Figures when using Kodak Gray Card White side (reflection factor 90%) and brightness level is less that 5,000 lx
• Face the prism to the instrument during the measurement with the distance at 10m or less
• Figures will change depending on the target reflection factor, weather conditions and location conditions

• Magnification: 3X
• Image: Erect
• Field of View: 4°
• Minimum Focus: 0.5m

• Advanced Security and Maintenance with New TSshield™
• MAGNET Field On-board
• Exclusive LongLink™ Communications Functionality
• Fast and Powerful EDM
• Advanced Angle Accuracy

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Circular Level: 10ft/2mm
• Electronic Circular Levels: Graphic Display Range – 6ft (inner circle) // Digital Display Range: ±6’ 30 inch

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Length: 171mm
• Aperture: 45mm (1.8 inch) (EDM: 50mm (2.0 inch))
• Magnification: 30X
• Image: Erect
• Resolving Power: 2.5 inch
• Field of View: 1°30’ (26m/1,000m)
• Minimum Focus: 1.3m (4.3ft)
• Focussing Screw: 1 speed
• Reticle Illumination: 5 brightness levels

• Internal Memory: 500MB
• External Memory: up to 8GB USB Flash

LongLink™ rover communications utilizing Bluetooth® Class 1

USB 2.0 Slot (Host + Slave)

RS-232C Serial

• Type: Liquid 2-axis tilt sensor
• Correction Unit: 1 inch
• Range of Compensation: ±6 (±0.0019gon)
• Automatic Compensator: ON (V & H/V)/OFF (selectable)
• Compensation Constant: Can be changed

• Slight haze, visibility about 20km, sunny periods, weak scintillation
• No haze, visibility about 40km, overcast, no scintillation
• Measurements at -30 to -20°C (-22 to -4°F) (Low Temperature Mode)/50 to 60°C (122 to 140°F) (Standard Model)
• Figures when the laser beam strikes within 30° of the reflective sheet target
• Figures when using Kodak Gray Card White side (reflection factor 90%) and brightness level is less than 30000 lx (a little cloudy)
• Figures when using Kodak Gray Card side (reflection factor 18%) and brightness level is less than 30000 lx (a little cloudy)
• When performing reflectorless measurement, the possible measurement range and precision will change depending on the target reflection factor, weather conditions and location conditions
• Face the target toward the prism during the measurement with the distance at 10m or less
• At the time of the tracking measurement

• Magnification: 3X
• Image: Erect
• Minimum Focus: 0.3m

• Automatic aiming technology
• MAGNET on-board software
• Ultra-powerful, advanced EDM
• Exclusive LongLink communications
• TSshield advanced security and maintenance
• Rugged, waterproof design

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Circular Level: 10ft/2mm
• Electronic Circular Levels: Graphic Display Range – 6ft (inner circle) // Digital Display Range: ±6’ 30 inch

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Length: 168mm
• Aperture: 45mm (1.8 inch) (EDM: 50mm (2.0 inch))
• Magnification: 30X
• Image: Erect
• Resolving Power: 2.5 inch
• Field of View: 1°30’ (26m/1,000m)
• Minimum Focus: 1.3m (4.3ft)
• Focussing Screw: 1 speed
• Reticle Illumination: 5 brightness levels

• Internal Memory: 500MB
• External Memory: up to 8GB USB Flash

• Display: Colour Touch TFT 240 x 320 display (dual display)
• Keyboard: 25 keys with illuminator (single keyboard)

• Display: Colour Touch TFT 240 x 320 display (dual display)
• Keyboard: 25 keys with illuminator (single keyboard)

LongLink™ rover communications utilizing Bluetooth® Class 1

USB 2.0 Slot (Host + Slave)

RS-232C Serial

• Compensation: Dual-axis compensator
• Range of Compensation: ±6 (±0.0019gon)

• Slight haze, visibility about 20km, sunny periods, weak scintillation
• No haze, visibility about 40km, overcast, no scintillation
• Figures when both the elevation and depression angles of the laser beam are within 15° and the instrument is facing the 360° Prism
• Figures when the laser beam strikes within 30° of the reflective sheet target
• Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 5,000 lx
• Figures when using Kodak Gray White side (reflection factor 90%) and brightness level is less than 500 lx
• Face the target toward the prism during the measurement with the distance at 10m or less
• Accuracy is (5 + 2 ppm X D) mm for distance range 0.3 to 0.66m
• Figures will change depending on the target reflection factor, weather conditions and location conditions

• Magnification: 3X
• Image: Erect
• Minimum Focus: 0.3m

• Advanced Security and Maintenance with New TSshield™
• MAGNET Field On-board
• Exclusive LongLink™ Communications Functionality
• Fast and Powerful EDM
• Advanced Angle Accuracy

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Circular Level: 10’/2mm
• Electronic Circular Levels: Graphic Display Range – 6’ (inner circle) // Digital Display Range: ±6’ 30”

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Length: 171mm
• Aperture: 45mm (1.8 inch) (EDM: 50mm (2.0 inch))
• Magnification: 30X
• Image: Erect
• Resolving Power: 2.5”
• Field of View: 1°30’ (26m/1,000m)
• Minimum Focus: 1.3m (4.3ft)
• Focussing Screw: 1 speed
• Reticle Illumination: 5 brightness levels

• Internal Memory: 500MB
• External Memory: up to 8GB USB Flash

LongLink™ rover communications utilizing Bluetooth® Class 1

USB 2.0 Slot (Host + Slave)

RS-232C Serial

• Type: Liquid 2-axis tilt sensor
• Correction Unit: 1”
• Range of Compensation: ±6 (±0.0019gon)
• Automatic Compensator: ON (V & H/V)/OFF (selectable)
• Compensation Constant: Can be changed

1. Slight haze, visibility about 20km, sunny periods, weak scintillation

2. No haze, visibility about 40km, overcast, no scintillation

3. Measurements at -30 to -20°C (-22 to -4°F) (Low Temperature Mode)/50 to 60°C (122 to 140°F) (Standard Model)

4. Figures when the laser beam strikes within 30° of the reflective sheet target

5. Figures when using Kodak Gray Card White side (reflection factor 90%) and brightness level is less than 30000 lx (a little cloudy)

6. Figures when using Kodak Gray Card side (reflection factor 18%) and brightness level is less than 30000 lx (a little cloudy)

5, 6. When performing reflectorless measurement, the possible measurement range and precision will change depending on the target reflection factor, weather conditions and location conditions

7. Face the target toward the prism during the measurement with the distance at 10m or less

8. At the time of the tracking measurement

• Magnification: 3X
• Image: Erect
• Minimum Focus: 0.3m

• 0.5 inch / 1 inch Precise Angle Accuracy
• Auto-aiming accuracy of 1 inch
• Remote control through on-line PC
• Exclusive reflector prescan technology
• Enforced durability for long term monitoring

• 1"(0.3mgon) (1mm @ 200m) (AP prism)
• 1mm @ 50m (Reflective Sheet)

• 2mm + 1ppm up to 200m (Non-Prism Mode)
• 1mm + 1ppm (Reflective Sheet)
• 1mm + 1ppm (1 Prism)
• 0.1mm / 1mm (Minimum Reading)

• 1.3m to 1,000m (AP prism)
• 5m to 50m (Reflective Sheet)

About ø30mm at 200m

About ø50mm at 300m

About ø60mm at 400m

About ø80mm at 700m

• USB Port 1: USB memory device
• USB Port 2 (mini-B): Computers etc.

• Plate Level: 20’/2mm
• Circular Level: 10’/2mm

• Wipe off moisture if instrument gets wet
• Always clean instrument before returning to case (special care is needed for lens)
• Clean display with soft, dry cloth
• Store in dry room with consistent temperature
• Check Tripod for loose fir or screws
• Change grease every 4,000-5,000 hours of operation
• Never pull instrument from case
• Periodically adjust the instrument to maintain accuracy

• Length: 173mm
• Aperture: 45mm (1.8 inch) (EDM: 50mm (2.0 inch))
• Magnification: 30X
• Image: Erect
• Resolving Power: 2.5”
• Field of View: 1°30’ (26m/1,000m)
• Minimum Focus: 1.3m (4.3ft)
• Focussing Screw: 1 speed
• Reticle Illumination: 5 brightness levels

• Internal Memory: 64MB
• External Memory: up to 4GB (CF card or USB flash memory)

• Display: 3.5 inch Transflective TFT QVGA color LCD, LED: 0 to 8 (6*) (selectable)
• Keyboard: Resistance-sensitive analog type touch panel with 32 keys

• Display: 3.5 inch Transflective TFT QVGA color LCD, LED: 0 to 8 (6*) (selectable)
• Keyboard: Resistance-sensitive analog type touch panel with 32 keys

• Data input/output: Asynchronous serial, RS232C compatible
• USB: USB Ver. 1.1, Host (Type A) and Client (Type miniB)
• Card slot: Compact Flash Type II-compatible
• SFX Dial-Up function: Yes

• Compensation: Dual-axis compensator
• Range of Compensation: ±4 (±0.0741gon)

• Magnification: 7X
• Image: Erect
• Minimum Focus: 0.3m
