Trime X-Hybrid 9m Diesel Tower Light TM/SN

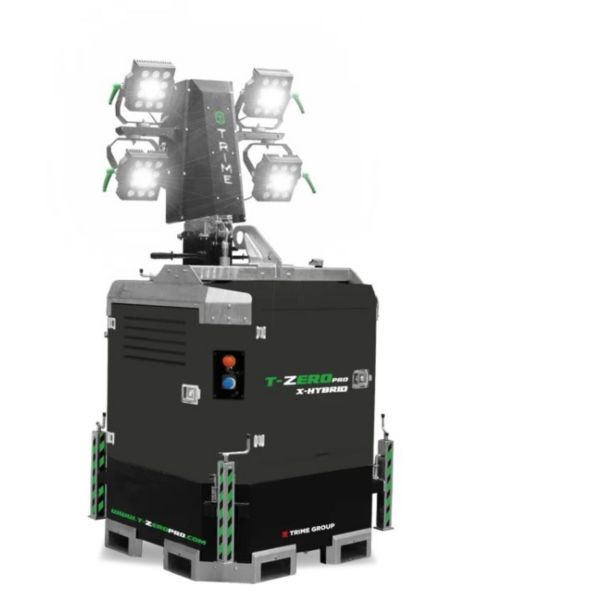

The Trime X-Hybrid is a cutting-edge lighting tower designed for efficiency and performance. Featuring advanced hybrid technology, it provides powerful illumination while minimising fuel consumption. Ideal for construction sites, its compact design ensures easy transport and setup.
Item ID: 50010267
Reference: 023007
Basic Dimensions
Environmental & Sustainability
Convenience Features
Power Source
Safety Information
Technical Dimensions
Technical Specifications
Telematics
Programmable Timer
Solar Assist
Safety Enhancements
Site Setup Service
Emergency Stop Button
Automatic Engine Stop (AMOSS)
Low Fuel / Fault Shutdown
Manual Stop via Control Panel
With LEDs ON: 9 hours
With LEDs OFF: 8 hours
Digital Control Panel: Displays operational status, battery level, fuel level, and run hours.
Start/Stop Controls: Key ignition switch for engine start/stop. Manual stop button for normal shutdown.
Emergency Stop: Large red emergency stop button for immediate engine shutdown.
Lighting Controls: Individual switches for each LED floodlight (4 × 150W). Auto mode via dusk-to-dawn light sensor.
Programmable timer for scheduled operation (time or lux-based).
Hybrid System Controls: Automatic engine start when battery charge is low. Silent mode selection for battery-only operation.
Safety Interlocks: Integrated with AMOSS (Automatic Mast Operating Safety System) to prevent mast movement unless handbrake is engaged.
Chassis & Mast: Galvanised steel for structural strength and corrosion protection. Finished with 80 μm powder coating for enhanced durability in harsh environments.
Floodlight Heads: Industrial-grade aluminium housings for the 4 × 150W LED lamps, ensuring heat dissipation and weather resistance. Tempered glass lenses for impact resistance and optical clarity.
Tank & Base: Steel bunded fuel tank (110% containment) to prevent spillage and comply with environmental safety standards.
Control Panel & Electrical Components: Weatherproof ABS/polycarbonate enclosures for switches and electronics.
Colour-coded cables with protective sheathing for durability.
Stabilizers: Heavy-duty galvanised steel stabilizer legs, height-adjustable for uneven terrain
Auto Light Sensor Mode (dusk-to-dawn)
Timer Mode (time-based or lux-based switching)
Manual Mode (individual lamp control)
Silent Hybrid Mode (battery-only operation for noise-sensitive environments)
