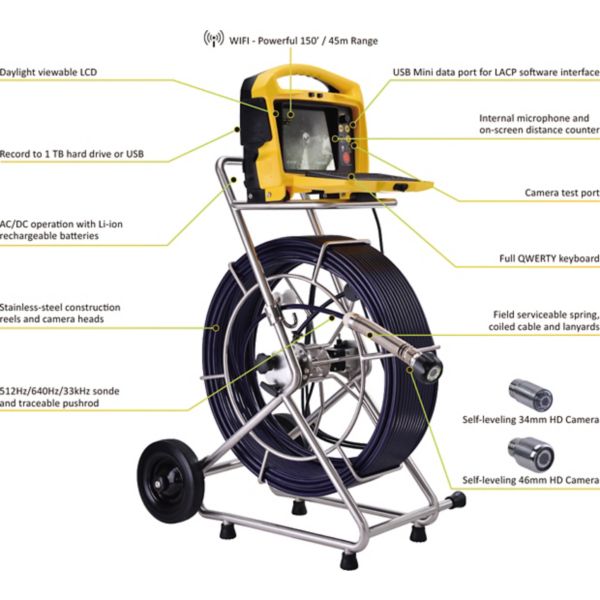

Vivax Metrotech vCAM-6 System (60m)
The Vivax Metrotech vCAM-6 (60m) is a cutting-edge inspection camera ideal for construction projects. Its compact design and advanced technology allow for efficient visual inspections in hard-to-reach areas. Perfect for ensuring quality and compliance, this reliable tool enhances productivity on site.
Item ID: 50001154
Reference: 177090
Basic Dimensions
Weight (kg)5.49
Height (mm)320
Length (mm)360
Width (mm)150
Convenience Features
Features
- Camera LED Dimmer
- Distance Counter
- Sonde Operation
- Microphone Operation
- Recording Control
- Image Capture
- Video Playback control
- Digital Zoom
- Wi-Fi
Power Source
Power Source / Fuel TypeElectricBattery
Battery Life
- Internal Lithium-ion rechargeable batteries
- Time to a full charge = Six hours
- Runtime is typically four hours with sonde on, six hours with sonde off (at 70ºF (21ºC) (with the backlight turned on).
- Re-charging cycles are approximately 500 times the life cycle. Battery life varies with temperature.
Battery (V/Ah)12V
Voltage (V)110
Safety Information
Protection Class (IP)54
Temperature - Operating (°C)-10 to +50
Temperature - Storage (°C)-20 to +70
Technical Dimensions
Diameter - Rod (mm)12
Length - Rod (m)60
Technical Specifications
ConnectorsSoftware is updatable via USB port with files available from the Vivax-Metrotech website, local distributor or factory
MaterialsFiberglass rod, conductors and coax with a high-density Polyethylene Jacket. Stainless steel housing with scratch-resistant Sapphire lens (Camera)
Purpose/Made forA tool to inspect and produce digital video recordings and JPEG images of the interior of small diameter metallic and non-metallic pipes, drains, conduits, and ducts.
Range
Sonde: 5-Watt output power provided by the control module.
Locatable depth up to 12ft (4m)
Time - Charging (mins)360
Time - Operating / Run (mins)240 mins with sonde on, 360mins with sonde
Display
- 9.7 inch (24cm) Daylight viewable HD (1024x 768) (diagonal measurement)
- Touch screen option
Storage
- Internal: 1 TB / 5400 RPM Hard Drive
- External: USB Port – Supports up to 128GB Removable USB 2.0 Drives or SD Card Slot – Supports up to 32GB Removable Class 10 SD Cards
Connectivity
- Audio and Video: RCA Sockets: Color-coded industry-standard female socket for video out, video in, and audio out, VGA Port: 15-pin DE-15 connector to connect to external monitors, HDMI Port: to connect to HD monitors, LCDs and TVs
- Microphone: 3.5mm female industry standard socket
- Media Sockets: USB 2.0 and SD (secure digital) sockets, Supports up to 128GB USB 2.0 USB Drives and 32 GB Class 10 SD Cards
- AC Power: 100V-240V Grounded power socket
- Data Port: USB Mini data port for use with third-party LACP software
- Camera Test Port: 4 Pin female keyed socket to test camera head picture and LEDs
- DC Power: 12V 1 Pin male circular sock for DC power cable assembly
- Reel Interconnect: 9 Pin female keyed locking socket for reel interconnect cable assembly
Focus200mm
Fuse Type10 Amp – 250 Volt, glass, quick blow
Lighting12.87 - 44.02 Lumen (based on Camera choice)
Pixels1024 x 768
Sonde TypeFrequencies: 512Hz, 640Hz, or 33kHz selectable and set as default in the control module setup menu
