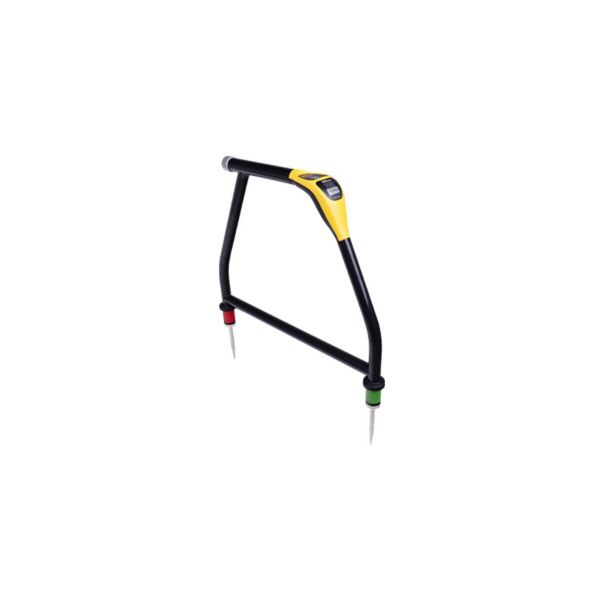

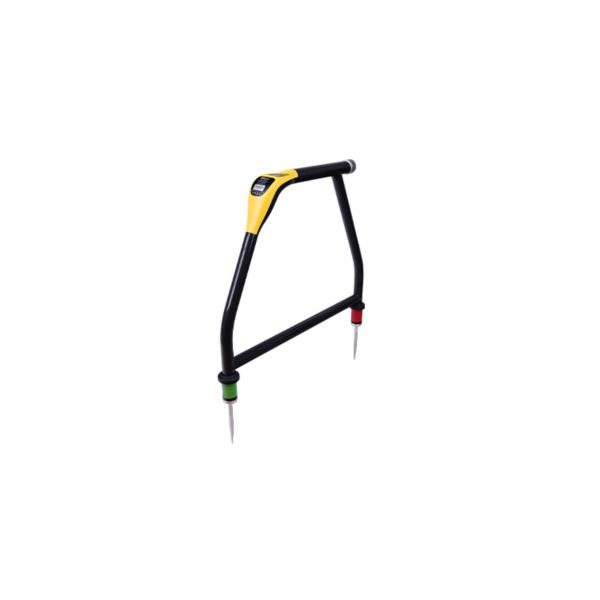

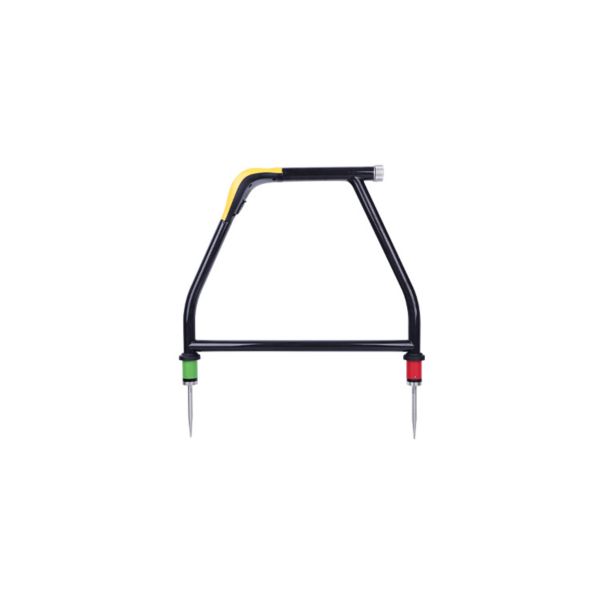

Vivax Metrotech VM-510FFL+ A-Frame Fault Locator
The Vivax Metrotech VM-510FFL+ A-Frame is a robust and reliable tool designed for precise cable locating. Its compact design ensures ease of use on construction sites while delivering exceptional performance. Ideal for both professionals and DIY enthusiasts, this device enhances efficiency in locating underground utilities.
Item ID: 50001176
Reference: 185375
Basic Dimensions
Weight (kg)1.92
Height (mm)728
Length (mm)640
Width (mm)74
Power Source
Power Source / Fuel TypeBattery
Battery Life
Alkaline: typically, 60 hour’ continuous use at 70ºF (21ºC)
NiMH: typically, 2300mAh will provide 45 hours continuous use at 70ºF (21ºC)
Battery OptionsNiMH
Battery TypeAlkaline
Safety Information
Protection Class (IP)54
Temperature - Operating (°C)-20 to +50
Temperature - Storage (°C)-40 to +60
Technical Dimensions
Range - Depth (max) (m)3
Technical Specifications
MaterialsCarbon fiber/ reinforced glass fiber/ high impact thermoplastic (ABS) construction
Purpose/Made forCable & Fault Location, compatible with Loc and Loc3 series transmitters with FF modes, VM-550FF, VM560FF
RangeVM Range
Sensitivity
- Cable Locate Sensitivity: 10uA at one-meter depth
- Fault Locate Sensitivity: Typically, it can detect 2MΩ at one-meter depth
Display1.28” 128 x 128 black and white dot matrix LCD
Accuracy - Depth/Measurement Precision (%)From 4” to 10’ (100mm to 3M) accuracy is +/- 5% of the depth
Audio OutputSpeaker indicates Left/Right by pulsed/continuous tone
DesignErgonomic, balanced and lightweight design for comfortable use
External/Wired ConnectionMini-USB for maintenance and software upgrades.
External/Wireless Connection8kFF (8Hz/8.192kHz with 2.67Hz phase modulation) or FF (3Hz/6Hz/8.192kHz)
Mode Control6 control buttons
Recommended Service Interval (months)12
Visual Indication
Mode, Frequency, Peak/Null/Left/Right, depth, and current.
Fault signal strength and direction.
Battery condition and Speaker volume setting
