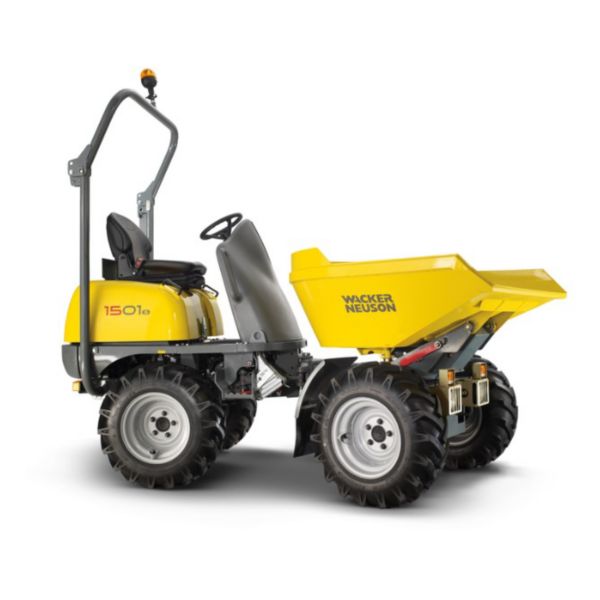

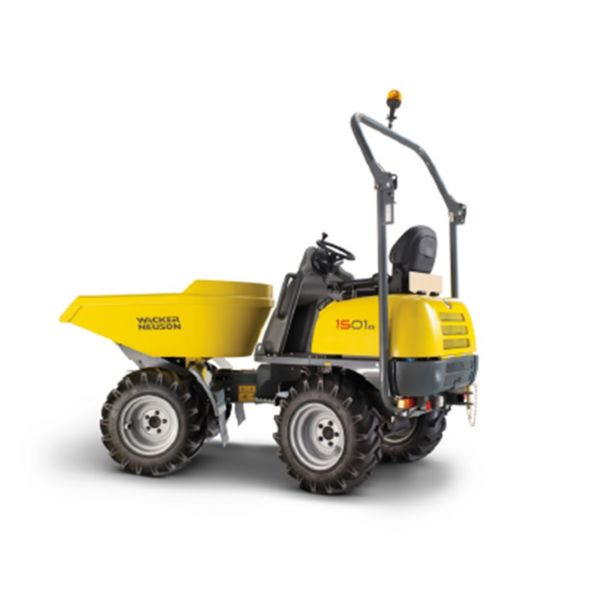

Wacker Neuson 1501 1.5t Diesel 4WD Front Tip Dumper Tier 2
The Wacker Neuson 1501 Tier 2 is a robust and reliable compact front tip dumper, perfect for various construction tasks. Its compact dimensions ensure manoeuvrability in tight spaces, while delivering exceptional performance and efficiency on site.
Item ID: 50002824
Reference: 015022
Basic Dimensions
Length (mm)3300
Height (mm)2550
Width (mm)1300
Weight (kg)1336
Environmental & Sustainability
Consumption - Fuel (l/hr)272 g/kWh
Average Usage Emissions Per Operating Hour (ERA)11.4
Average Consumption Per Operating Hour (ERA)3.6
Average Engine Operating Hours Over A Rental Day (ERA)2.5
Convenience Features
Road LightingYes
TelematicsYes
IsolatorYes
Hour MeterYes
Power Source
Power Source / Fuel TypeDiesel
Battery (V/Ah)12V / 45Ah
Voltage - System (V)12
Output - Alternator (Ah)40
Engine MakeYanmar
Engine Model3TNV76
Engine Stage/TierTier2
Power - Engine (max) (kW)18.9
Power - I.C. Engine Rating (hp)25.7
Power - Starter (V/kW)12V / 1.1kW
Safety Information
Service BrakeYes
Parking BrakeYes
Vibration - Whole Body (m/s2)<0.5
Vibration - Hand-Arm (m/s2)<2.5
Noise Level (dB)101
Sound Pressure (dB)85
SeatbeltYes
Reverse Warning AlarmYes
RollbarYes
Folding ROPS FrameYes
Rear View MirrorsYes
LED BeaconYes
Road Traffic Regulation AccessoriesYes
Standard Steps & HandlesYes
Technical Dimensions
Ground Clearance (mm)270
Wheelbase (m)1.65
Bore & Stroke (mm)76 x 82
Size - Tyres10.0/75-15.3 (Mitas, TS-05) tread
Radius - Turning (Range) (m)3.5
Height - Tip (m)1.56
Height - With Lowered Rollbar (mm)2000
Height - w/o Rollbar (mm)1850
Width - Narrow Version (mm)990
Height - ROPS Tilted (mm)1960
Height - Rear Overhang (mm)810
Height - Skip (m)1.34
Height - Skip Tilted (High Tip Skip Raised) (m)2.97
Height - ROPS (mm)2550
Width - Skip (mm)1220
Length - ROPS (mm)3300
Width - Dumping (m)0.4
Technical Specifications
Steering & Traction DriveHydrostatic chassis articulation steering with emergency steering features
Speed (max) (rpm)3210
Loads - Axle (kg)2000 (Front), 1100 (Rear)
Capacity - Fuel Tank (L)15
Capacity - Hydraulic Tank (L)20
Torque (Nm @ rpm)65.8 @ 1600
No. of Cylinders3
Displacement (L)1.116
Fuel Injection PumpDirect injection
Gradeability (%)50
Cooling SystemWater-cooled
Brakes TypeHydrostatic and hydraulic parking brake on all four wheel motors actuated with parking brake valve
Speed - Travel (Range) (mph)10 - 13
Pressure - Working (bar)170 - 420
Drive Control TypeTwin-lock Permanent 4-wheel drive system
Flow Rate - Pump (l/min)18
Payload (t)1.5
Inclination - Safe Authorized (%)20
Angle - Skip Tip (°)47
Tipping Type3 dumper types with high, front
Joint TypeArticulated pendulum joint
Angle - Pendulum (°)15
Angle - Steering (°)33
Articulation (°)33
Oscillation (°)15
Capacity - Skip (Struck) (L)650
Capacity - Skip (Heaped) (L)800
Capacity - Skip (Liquid) (L)420
Angle - Swivel Dump (°)33/15
AspirationNatural aspiration
Capacity - Cooling Tank (L)4
Speed - Idling (rpm)1300 +/− 25 rpm
Compression23.5 : 1
Compression - Specified Value35 +/− 1 bar at 250 rpm (507 +/− 14.5 psi at 250 rpm)
Flow Rate - Chassis (l/min)135
Rotation - DirectionCounterclockwise (as seen from the flywheel)
Starting AidGlow plug (preheating time 10 – 15 seconds)
Weight - Operating (Range) (kg)1,336
Volume - Platform Heaped (m3)0.8
Volume - Platform Levelled (m3)0.65
Pump TypeAxial piston pump
Weight - Operating With Load (max) (kg)2.836
